TR-19 & TR-25: 4 Post Vehicle Lifts

19,000 or 25,000 lb. Capacities

The TR-19 & TR-25 four post automotive lifts will accommodate all passenger cars trucks, utility vehicles, small R.V.’s. The TR-19 & TR-25 offer a full 6’ of unrestricted under-vehicle access. Equipped with 20′ runways and available “wheels free” rolling jacks to raise the tires off the tracks for wheel, brake and axle service.

Overview

The Big Red One. For All Your Shop’s Lifting Needs

ABOVE GROUND 4 POST Garage LIFT DESIGN
  • 4 Post Runway Truck LiftsSurface mounted operation avoids the environmental liabilities and service problems associated with in ground lifts.
  • Indoor or outdoor installation quick & easy.

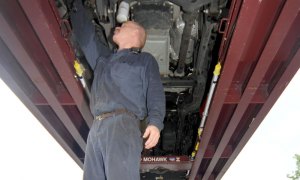

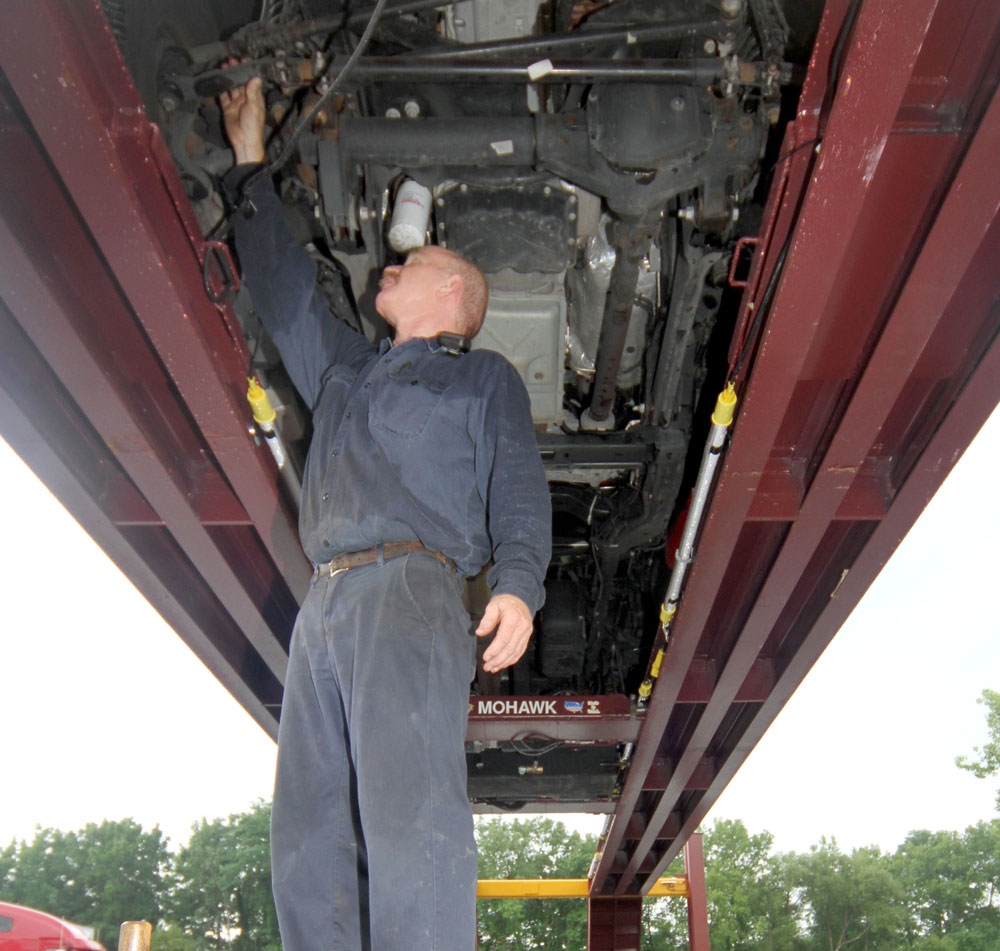

  • Four post design allows complete under-vehicle access for all types of repair without side obstructions like scissors and parallelogram lifts.

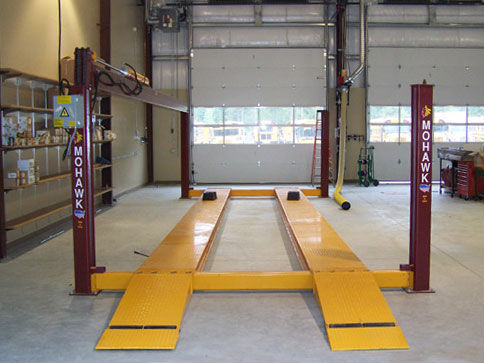

  • Clear floor unobstructed design allows tool boxes, jacks, and other shop equipment to roll freely between the posts.
  • Standard 24″ wide runways allow greater access for under-vehicle repair giving 48″ of clear span access.

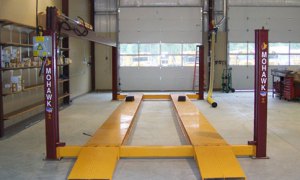

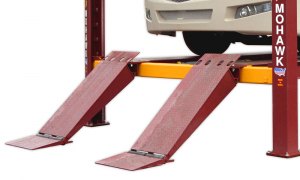

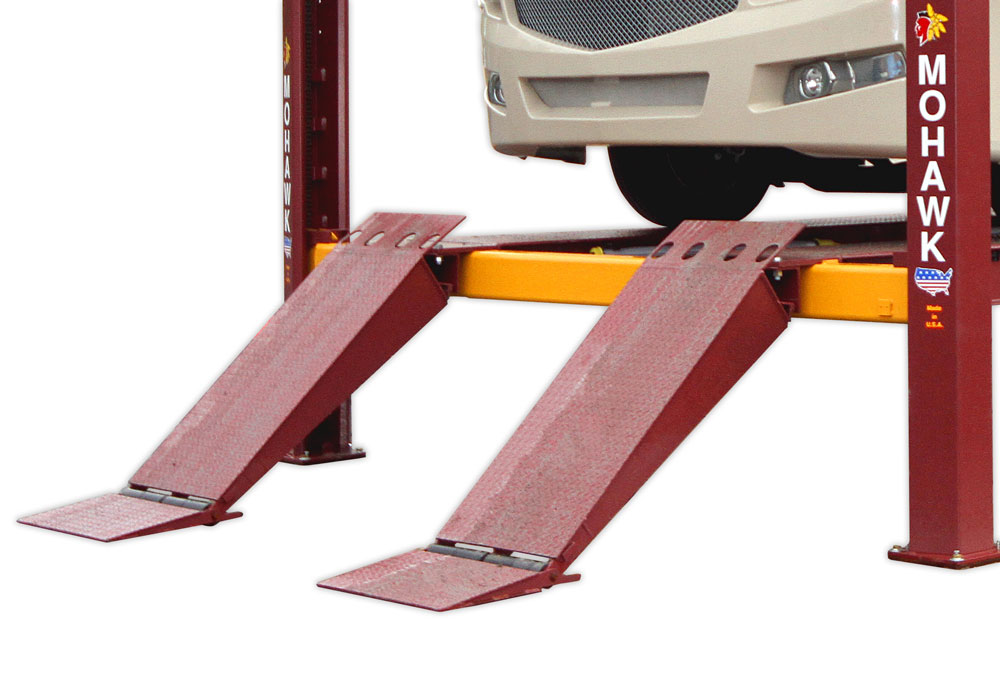

  • Diamond plate covered approach ramps and runways assure additional traction and infinitely longer service life than traction “coated” flat tracks.
VERSATILITY AND ADAPTABILITY
  • 4 Post Automotive LiftMohawk TR-25 lifts RV’s, school buses, twin axle tractors, utility vehicles, cars, trucks, and vans. Big or small – Mohawk lifts them all!
  • Available up to 9″ wider for winged snow plow trucks, large RV mirrors and extra-wide vehicles.
AUTOMOTIVE LIFT FEATURES
  • TR-25 Runway Automotive Lift24″ wide runways allow full service to all types of cars, vans, trucks, and buses, without having to adjust the tracks.
  • Full 5’9″ lifting height at top of tracks for tall technicians.
  • Adjustable runways accommodate any vehicle up to either 19,000 or 25,000 lbs.

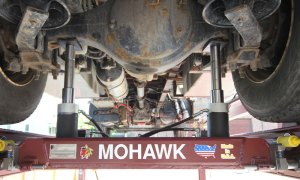

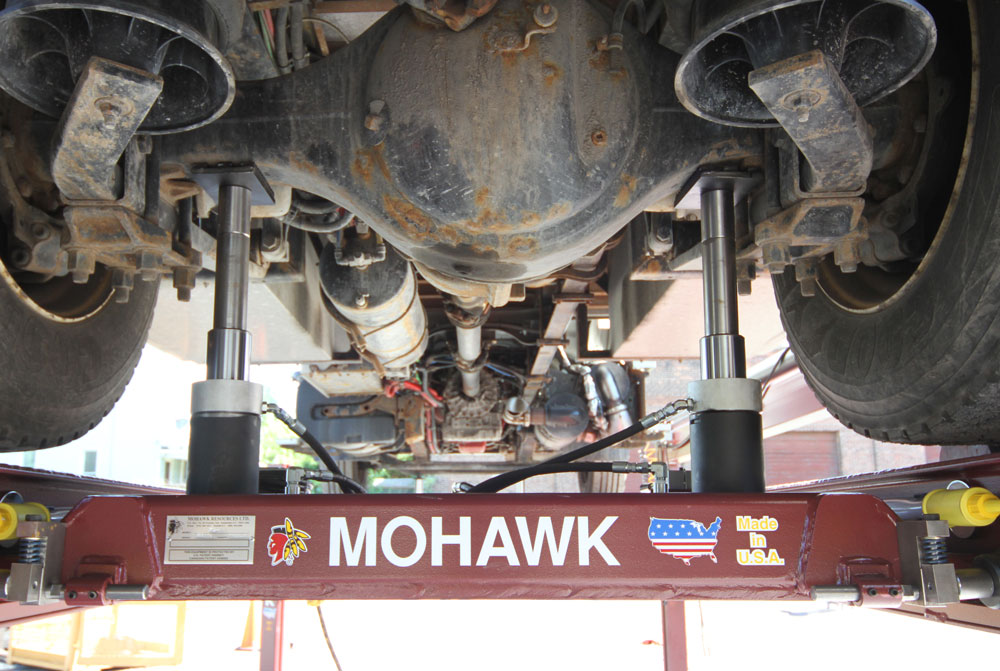

  • Optional 15,000 or 25,000 lb. capacity 110 volt electric/hydraulic rolling jacking beam locks in place upon positioning.
COMPARE DESIGN, SAFETIES, AND FEATURES
  • Four Post Truck Maintenance Lift20′, 25′ or 30′ four post lifts runways are made from two parallel 8″ steel I beams. (Three I beams on 30′ model; Model TR-19 only available in 20′ track lengths.)
  • Heavy duty 7″ x 5″ structural steel cross rails.
  • Large 10″ x 6″ top rail is reversible to either driver or passenger side.

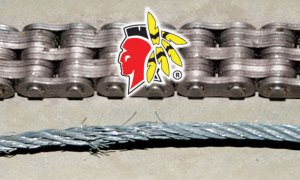

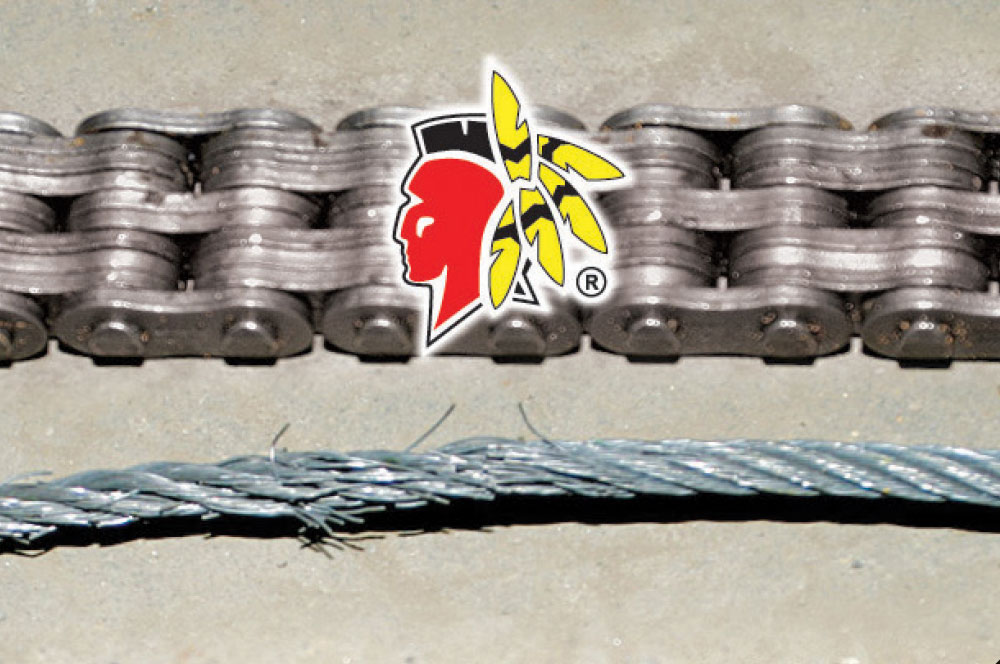

  • Chain drive – no stretch or fray like cable lifts.
  • Specially designed, double sealed, self-lubricating, hardened steel rollers at all chain pivot points.
  • Mohawk offers a full 3 year warranty and the industry’s only extended cylinder warranty*.

* See specific cylinder warranty for details.

UNPARALLELED SAFETY SYSTEMS

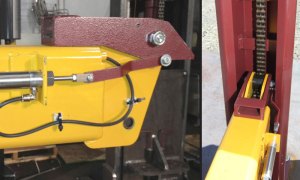

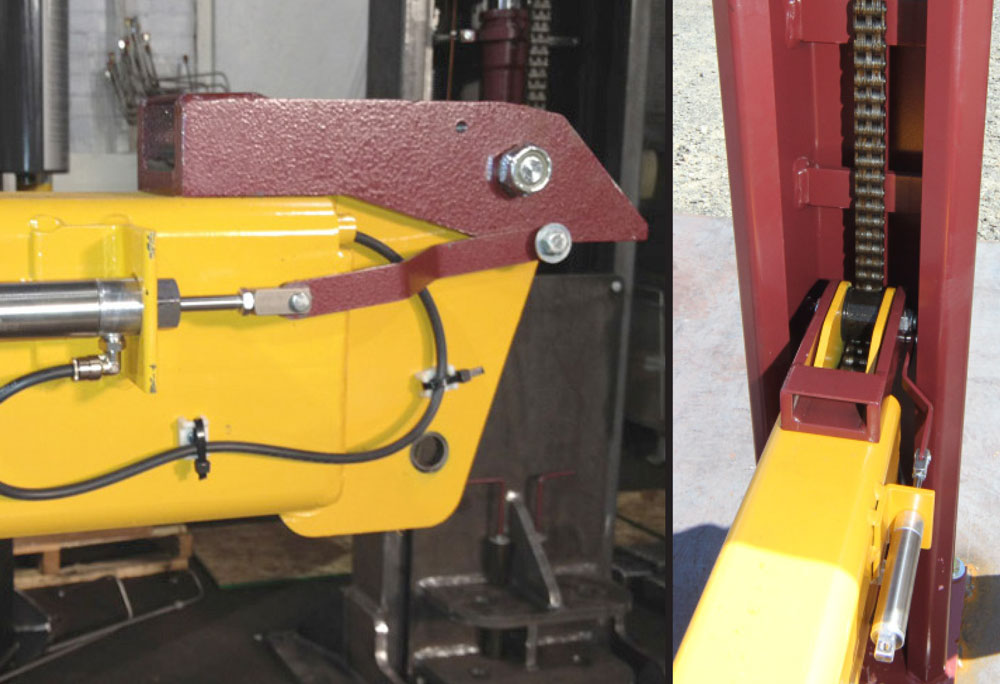

  • 4 Post Heavy Duty Truck LiftMulti-position mechanical locks in all four positions.

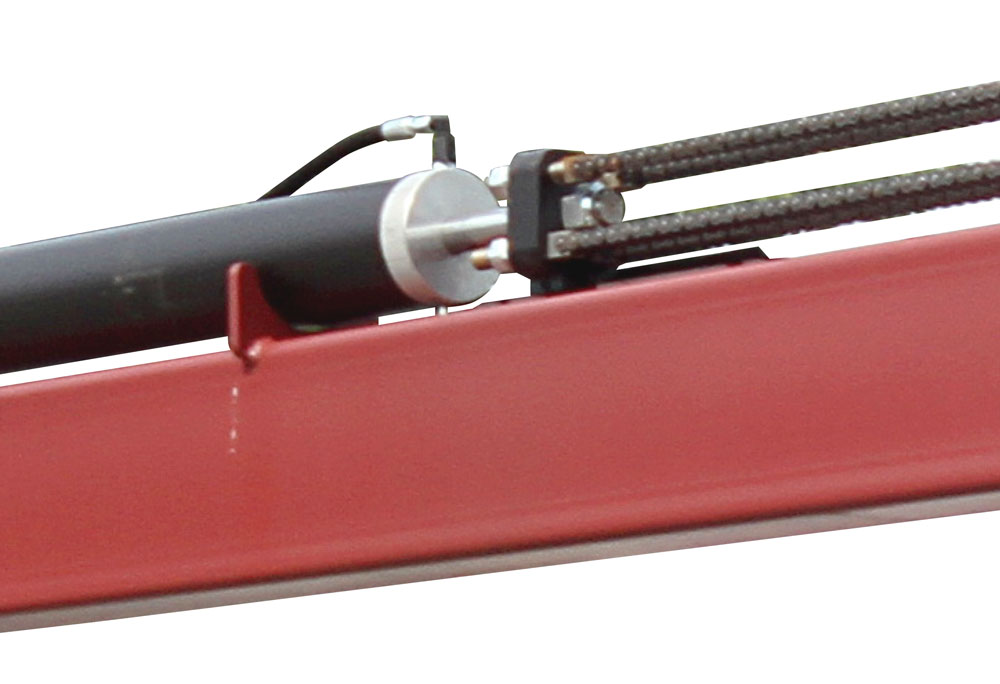

  • Hydraulic safeties using pressure-compensated flow control valves and tamper-proof velocity fuses.
  • Single position, two hand release for safe lowering.
  • Mechanical chain synchronization.
  • The heaviest construction of any competitive 4 post vehicle lift. Just compare!

Lift Features

4 POST AUTOMOTIVE LIFT FEATURES

Options & Accessories

FOUR POST AUTOMOTIVE LIFT OPTIONS & ACCESSORIES

Specifications

Please visit the Architects Section for all specifications.
