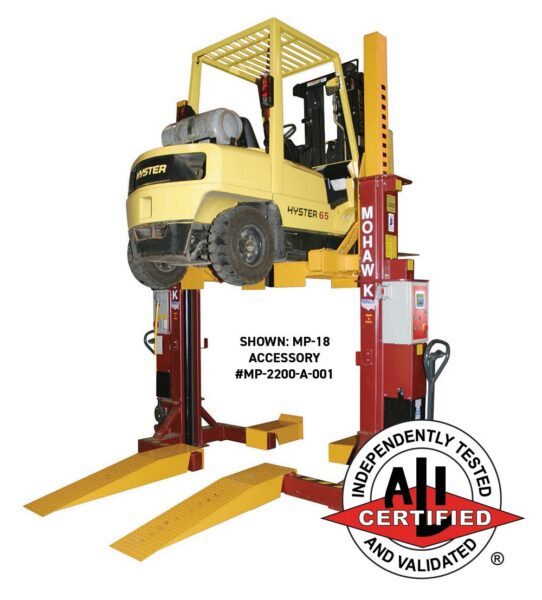

Mobile Column Fork Lift Maintenance Adapter

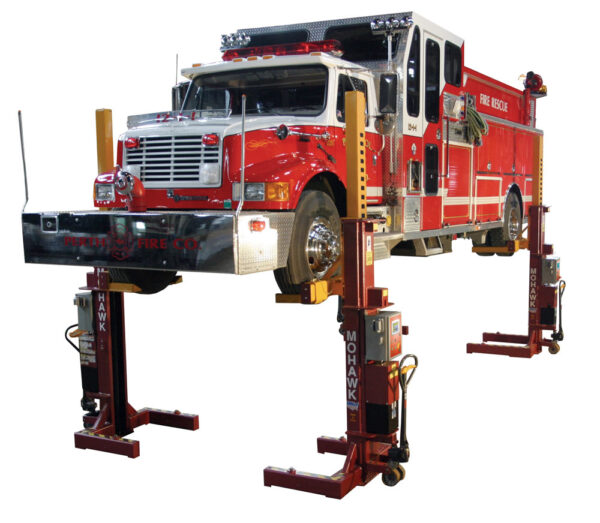

MOBILE COLUMN LIFT FEATURES

• All columns operate together, individually or can be divided into separate pairs.
• All columns act as control columns to raise or lower vehicles.
• 67” lifting stroke for tall mechanics.
• Adjustable lifting forks accommodate the widest range of wheels from 13” to 24” for up to 48” diameter tires (wider carriages optional for larger tires). No wheel reducer sleeves needed.
• Optional Auto Frame adaptor available for passenger cars & light trucks.
• Sealed rollers on the wheels for easy movement of the columns.
• Hydraulic operation (no screw drives) for efficient, fast & easy lifting.
• Barrel type roller bearings on carriages for a lifetime of trouble free service (no plastic slide blocks or plastic rollers).
• Sealed roller bearings on carriages for a lifetime of trouble free service (no plastic slide blocks or plastic rollers).
• Manual safety over-ride permits columns to be lowered in a power outage without using hand cranks.
• Low profile fork angle for easy positioning of columns, especially for floatation tires.
• Mix different capacity columns for heavy axle vehicles.

SAFETY FEATURES

• 19 safety lock positions spaced every 3” starting at 12”.

• Locking pins prevent movement of adjustable forks.
• Pallet jack style DUAL STEERING WHEELS lower when weight is applied (vs.spring loaded steering wheels which can cause columns to roll when not loaded.)
• Low mounting of power units means low center of gravity which makes moving the columns easier vs. topple prone “top heavy” columns.
• 15” lifting forks handle wide tires or 22” long forks for raising BOTH dual rear tires (22” forks reduce capacity to by 2,000 lbs.)
• PLC computer controls for continuous synchronization of all columns. Touchscreen display shows operational status height, locks engaged (or not), inspection, cycles, each tech’s usage and many other features.

LONG LASTING QUALITY MADE LIFTS

• Column construction made of 5 3/4” or 7” USA made, [ shaped fork lift channel sections. Mohawk does not use I-beam, H-beam, bent sheet metal or rectangular tubing for structural integrity.
• Carriages ride on roller bearings for smooth steady lifting. No plastic slide blocks or plastic rollers.
• Larger capacities & wider carriages available.

24 VOLT DC OPERATED LIFT

Twin 12 volt, deep cycle, maintenance free US made batteries. Each column equipped with a 20 amp, gel-filled, 110 volt battery charger for quickly recharging the batteries. One battery charge is good for 30+ cycles to still leave the batteries at 75% power. Mohawk’s 24 volt D.C. (battery operated) mobile lift features the same heavy duty column, retractable wheels, adjustable lifting forks, and available options of Mohawk’s 220/440AC volt mobile lift plus same touchscreen operation.

DESIGN FEATURES & BENEFITS

• Safety latch rack engages locks every 2.5” for technicians to set vehicle at optimal working height.
• Control from any column on 10” touchscreen, with standard diagnostic and browsing capabilities for quick vehicle troubleshooting.
• Wireless system operates on broad range of channels to limit interference, with multiple frequencies.
• Retractable wheel design means more steel on the floor for greater stability and industry leading safety.
• Visual indicator lights show real-time charge level status.
• Utilizes 24 volt operation with built-in 110 volt charging system.
• 69” lifting height in Standard Mode & 32” with two columns in Wheel-Lift mode.
• Hydraulic operation (no screw drives) for safe, efficient, low maintenance, fast & easy lifting.
• Available adapters include 18,000 lb capacity front-to-rear adapter and 15,000 lb capacity forklift adapter.
• Adjustable lifting forks accommodate the widest range of wheels from 5” to 24.5”.
• Adjustable forks means no wheel reducer sleeves to buy, lose or slip off.
• Positive grip ensures carriage forks stay in place when engaged.
• Low profile fork angle for easy positioning of columns, especially for floatation tires.
