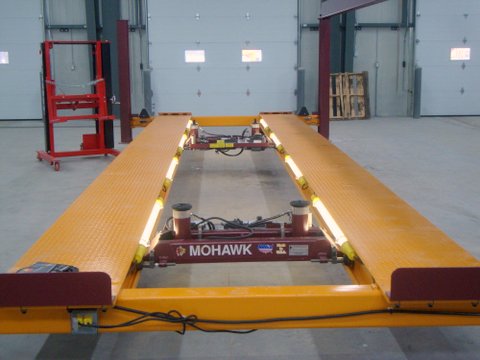

FL-25 Forktruck Lift
The Mohawk FL-25 delivers 25,000 pounds of lifting capacity and a full six-foot rise for complete undercarriage access during forklift service and maintenance. This surface-mounted lift bolts directly to your shop’s concrete floor and can be installed in just a few hours. Adjustable runways easily accommodate forklifts of any wheelbase or length, making the FL-25 a versatile solution for facilities that service a wide range of industrial trucks.
Product Details
Heavy-Duty Performance
The FL-25 delivers a full 25,000-pound capacity in a compact, above-ground design—no pits or in-ground cylinders required. Installation is fast and straightforward, and the open layout provides complete undercarriage access with a lifting height of more than 5 feet 9 inches. Adjustable 24-inch runways easily accommodate forklifts of every size, and custom configurations are available for unique industrial requirements.
Heavy Duty, Rugged Construction
Built for nonstop duty, the FL-25 features three parallel 8-inch steel I-beams joined by 7-by-5-inch structural cross-rails and a 10-by-6-inch reversible top rail for exceptional strength. Mohawk’s chain-drive system eliminates the stretch and fray issues common to cable lifts, while double-sealed, self-lubricating hardened steel rollers keep every pivot point moving smoothly with minimal maintenance.
Advanced Safety

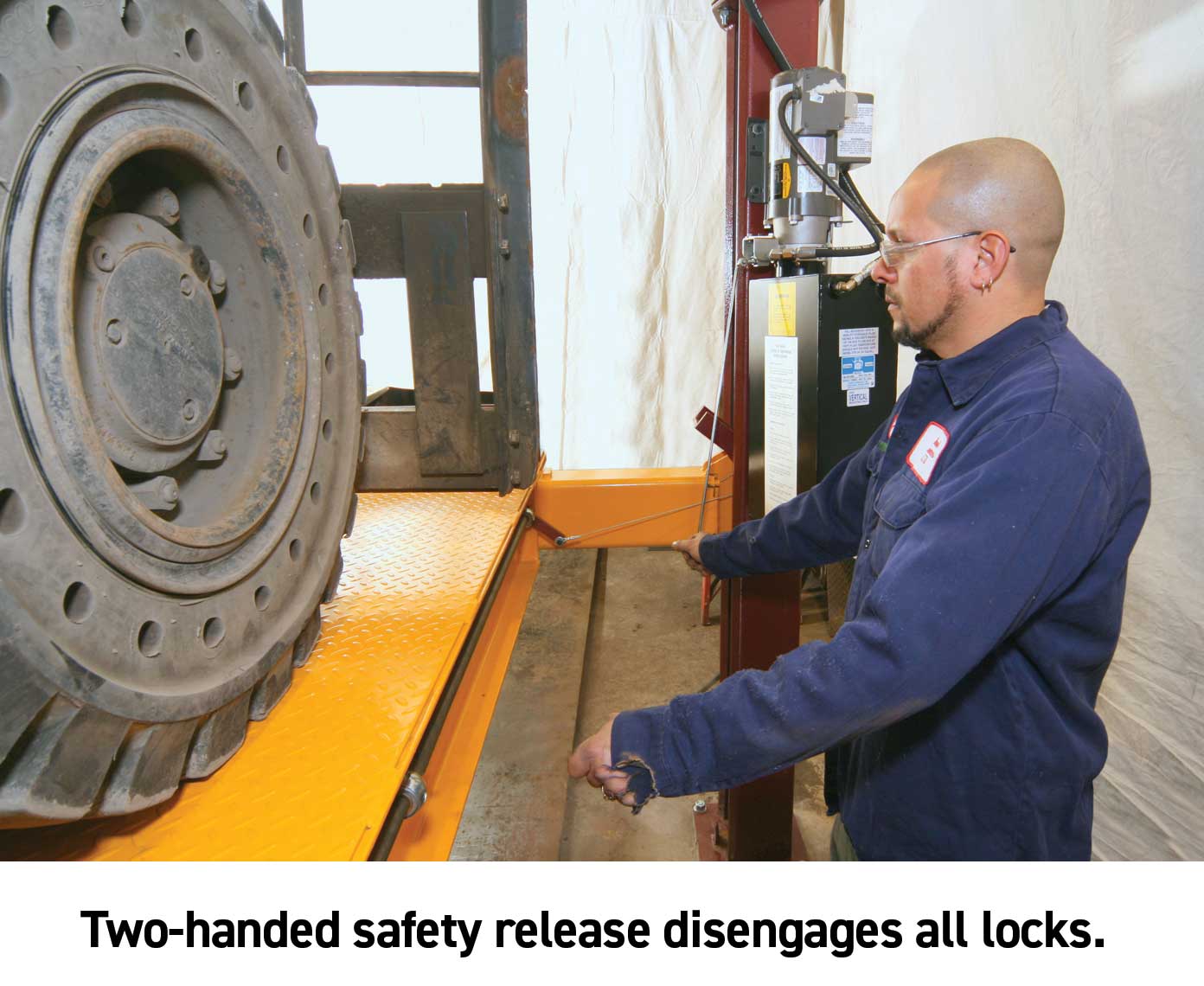

Safety is engineered into every component. Multi-position mechanical locks engage at all four posts, hydraulic safeties use pressure-compensated flow control valves and tamper-proof velocity fuses, and a single-position, two-hand release ensures controlled lowering. Mechanical chain synchronization keeps the lift perfectly level, and Mohawk’s industry-leading construction delivers unmatched stability and reliability for years of heavy service.
Featured Images

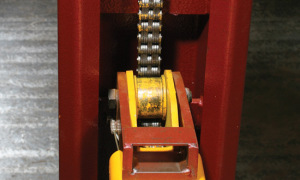

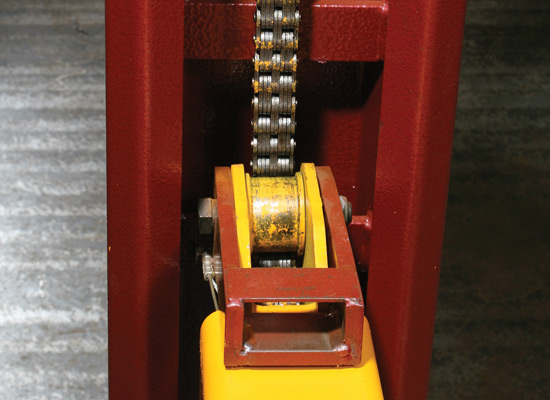

2. Mechanical Safety Locks
Mohawk mechanical locks engage the full length of travel.

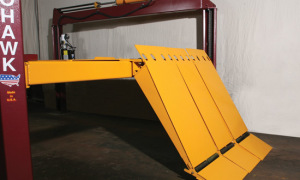

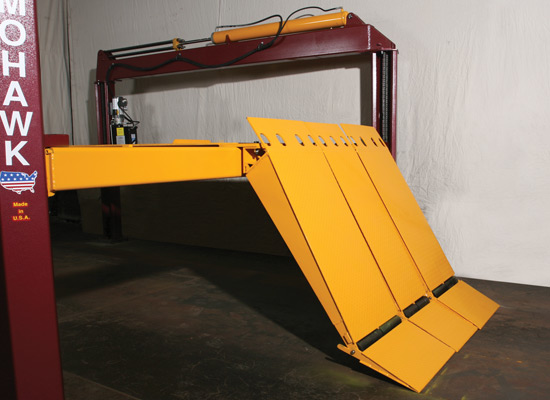

3. Fold Down Ramps
Approach ramps fold down out of the way when raised to act as a secondary automatic wheel stop.

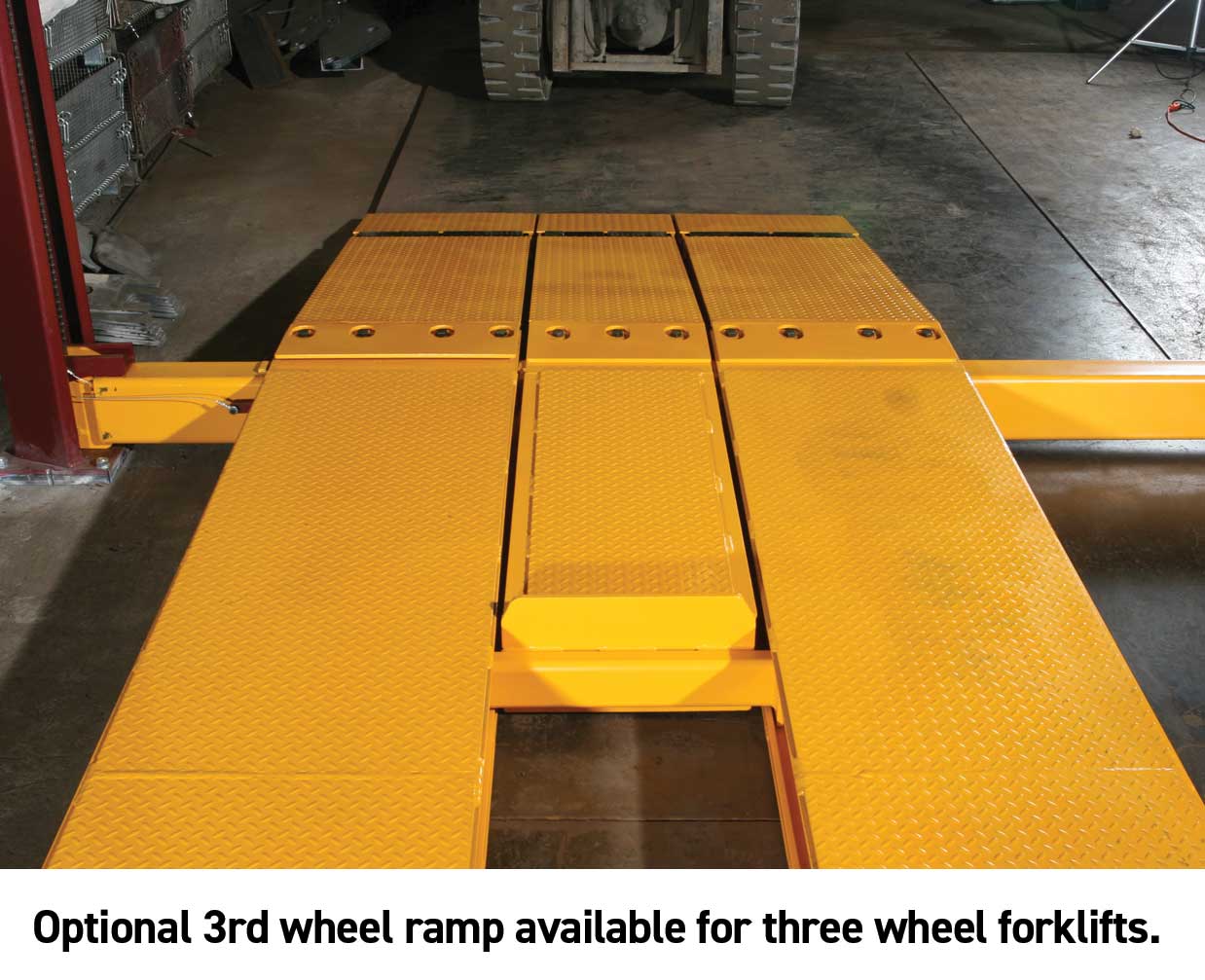

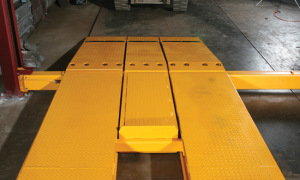

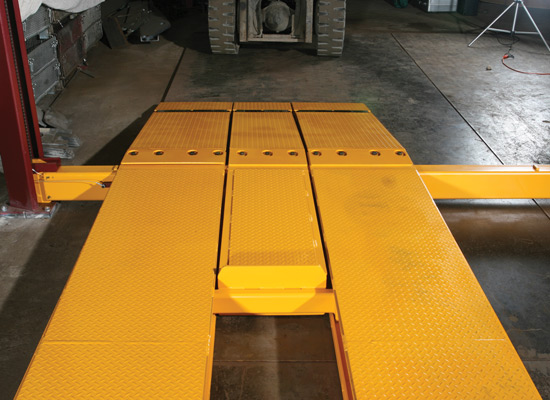

4. 3rd Wheel Ramp
Optional 3rd wheel ramp available for 3 wheel forklifts.

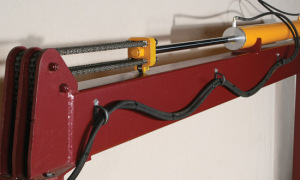

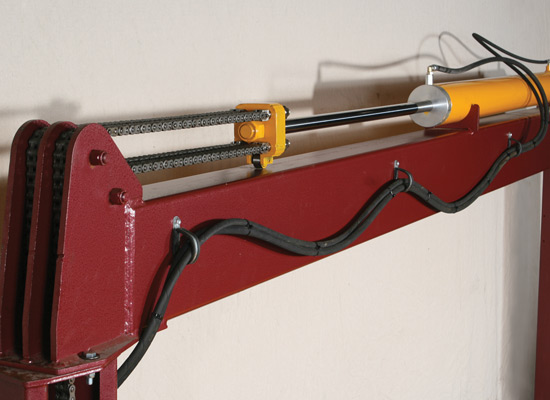

5. Large 5” Cylinder
Large 5” cylinder with leaf chain drive system eliminates stretch, fray, pulleys and maintenance associated with cable driven lifts.Options & Accessories

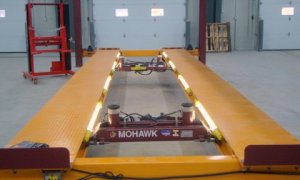

Track Lighting
Optional shatterproof track lighting to brighten up the darkest vehicle undercarriages.

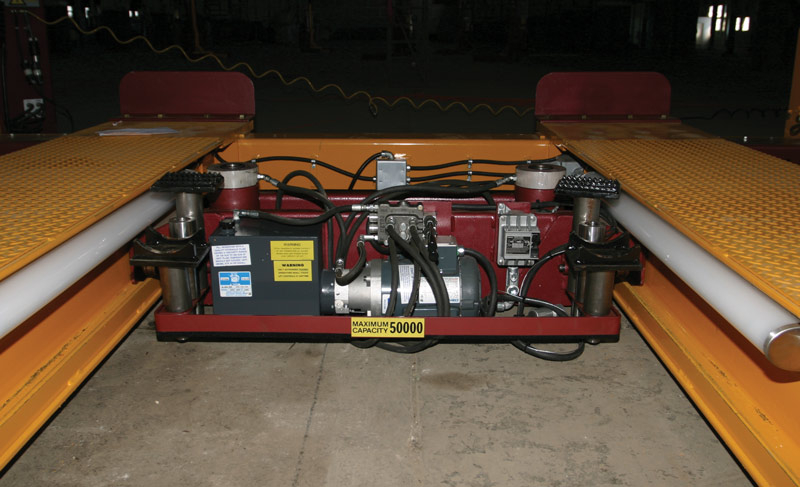

ROLLING ELECTRIC/HYDRAULIC OR AIR/HYDRAULIC JACKS
Optional rolling air/hydraulic jacks for “wheels free” tire and brake service. Jacks roll the full length of the runway and have a mechanically activated lock. Optional runway lighting illuminates the vehicle undercarriage.

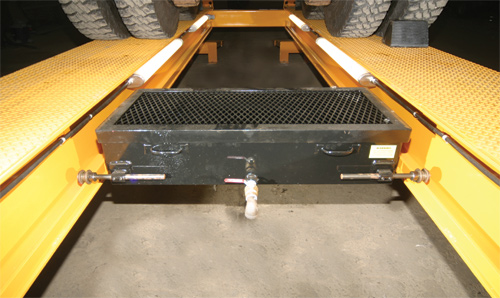

ROLLING OIL DRAIN PAN
25 gallon capacity Makes oil changes quicker & easier Expanded steel grate supports filters when draining

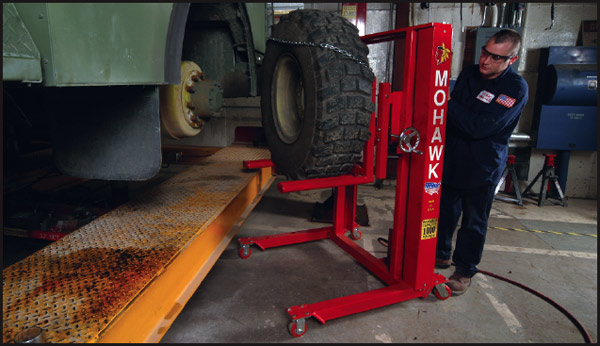

Model TD1000 / TD2000 Tire Dolly
1,000 and 2,000 lb. capacitiesUse with any lift or anytime heavyduty truck tires must be removedHigh 46" lifting height & 6" side shifting ability makes alignment simple Heavy Duty 4" steel ball bearing casters allow easy movementRear casters swivel 360 degrees, front casters equipped with locksAir/hydraulic (AH) models easily raise and lower dual tiresTilting lift arms aid axle realignment and provide additional stability to the fully loaded tire dollySafety chain provided to secure loadsHand crank model with high gear ratio winch<a href="/automotive-lifts/specialty-items/model-td1000ah-td2000/">Click here to find out more about this</a>

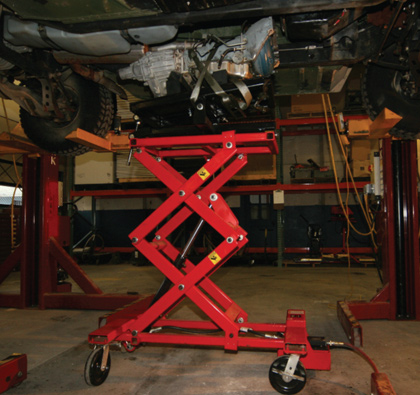

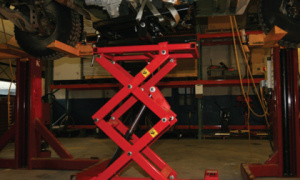

Scissor Lifting Table
Scissor Table 2,500 lb. air/hydraulic scissor lifting table for removing rear ends, differentials or heavy transmissions<p><a href="/automotive-lifts/specialty-items/st-2000n-scissor-transmission-jack/">Click here to find out more about this</a></p>Specifications
Please visit the Architects Section for all specifications.
| Model: | FL-25 |
|---|---|
| Capacity: | 25,000 lbs |
| Motor Rating: | 2 HP/220 V Single-Phase (3 phase optional) |
| Lifting Mechanism: | 5" Hydraulic Cylinder Attached to (4) #646 Leaf Chains |
| Overall Length: | 20'-3 1/16" |
| Track Length: | 20' |
| Overall Width: | 12'-6 3/16" |
| Lifting Stroke: | 5' |
| Height @ Full Stroke: | 5'-9 5/16" (top of runways) |
| Track Width: | 24" |
| Track Adjustment: | 4' to 8' |
| Clearance Between Posts: | 11' Standard (Wider Available) |
| Mechanical Safety Release: | Single Point |
| Mechanical Safety Locks: | Multi-Positions |
| Back-Up Hydraulic Safety Systems: | Pressure Compensated Flow Controls & Velocity Fuses |
| Concrete requirements: | 4,000 PSI concrete 4 ½" thick floor |
| Warranty: | 3 years; (Excluding Motor/Pump) |
| Lift Weight: | 4,200 lbs |
