System I: Two Post Automotive Lifts
Built to Outperform the Competition

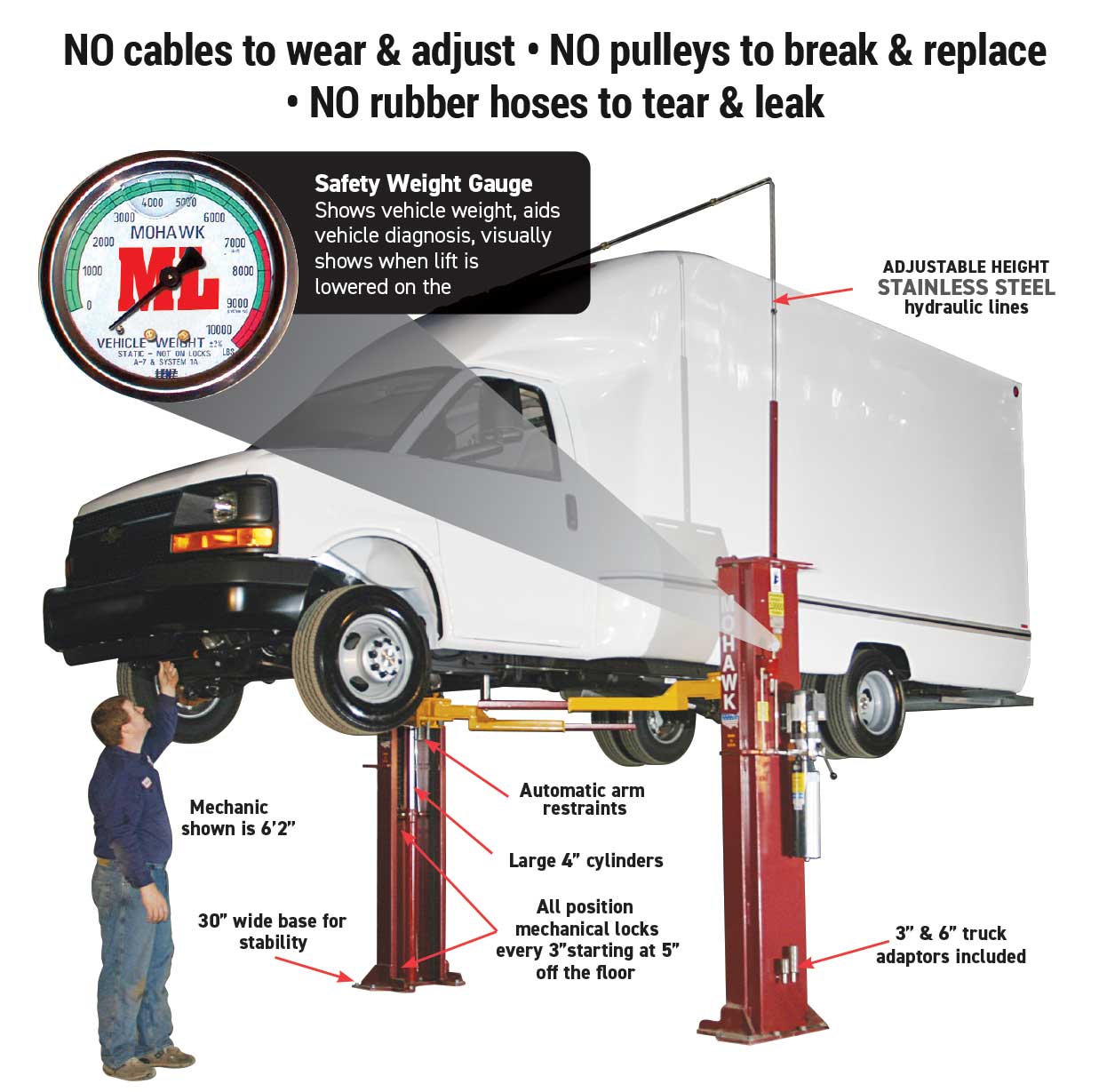

The Mohawk System I is a premium two-post lift engineered for unmatched strength, safety, and versatility. With ¾” thick forklift mast steel columns, dual heavy-duty cylinders, and patented hydraulic and mechanical safety systems, the System I delivers reliable, maintenance-free performance for shops that demand the best. Ideal for lifting everything from low-profile cars to tall commercial vans—with the industry’s best warranty to back it up.
Product Details
Superior Engineering for a Lifetime of Service
At the heart of the System I are columns made from ¾” thick forklift mast steel, measuring 5 ¾” wide—built for a lifetime of trouble-free operation. Unlike lifts using formed sheet metal, Mohawk’s solid steel design ensures maximum strength and structural integrity in demanding shop environments.
The lift’s carriages ride on eight double-sealed, self-lubricating steel ball bearing rollers, delivering smooth, maintenance-free operation and eliminating the wear-and-tear issues found in plastic slide blocks used by competitors.
Low-profile 3.5” swing arms slide easily under even the lowest ground-hugging sports cars. To handle larger vehicles, Mohawk includes 3” and 6” stackable truck adapters as standard—no costly add-ons required.
The System I adapts to almost any vehicle configuration, giving your shop ultimate flexibility with every lift.
Patented Safety Systems for Maximum Protection
Mohawk’s safety technology sets the benchmark. The all-position mechanical locks engage every 3 inches in both columns—starting just 5 inches off the ground and continuing to full height—ensuring constant engagement and support.
The System I also includes:
- Patented internal hydraulic safeties
- External flow controls and velocity fuse valving
- Automatic swing arm restraints that lock during lift and release upon descent
These layers of protection ensure both the vehicle and technician remain secure throughout every use.
Superior Operation & Maintenance-Free Design
Forget the overhead cables, chains, and equalizer pulleys. The System I uses patented hydraulic synchronization between the cylinders for perfectly even lifting without additional mechanical parts that wear down.
Heavy-duty leaf chains and twin oversized heavy-duty cylinders for steady, balanced lifting power eliminate the stretch, fray, and constant adjustments required by cable or screw-drive systems.
Adjustable stainless steel overhead hydraulic lines can be set to any height—or even routed in-floor—accommodating everything from low-ceiling shops to high-roof fleet vehicles.
The result? Smoother operation, less maintenance, and longer lifespan.
The Industry’s Best Warranty—Guaranteed
Mohawk backs the System I with the best warranty in the lift industry:
- 25-year structural warranty
- 10-year mechanical warranty
- Limited lifetime cylinder coverage
Flexible lease and purchase plans are available from 1–5 years, making it easier to bring industry-best lifting power to your shop.
Featured Images
View More Images of This Lift on the Mohawk Lifts PR Site

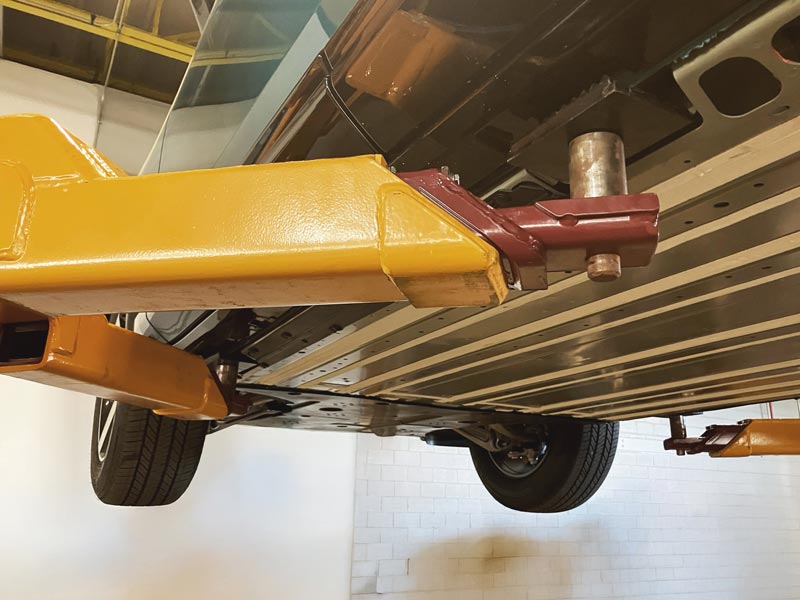

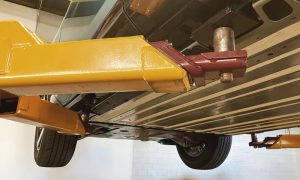

Low Profile Swing Arms
Low profile swing arms reach under low-clearance vehicles, including EVs and sports cars.

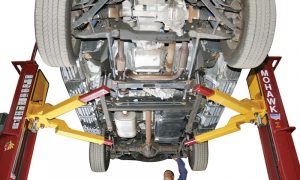

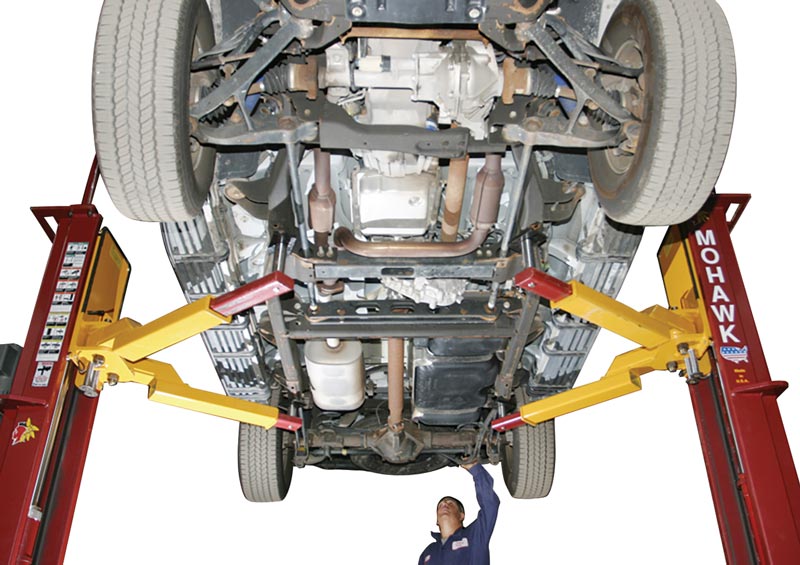

Under Vehicle Access
Two post lifts offer FULL under vehicle access for all repairs, takes up minimal bay space, while leaving the wheels hanging free for tire, brake or any other necessary repairs.

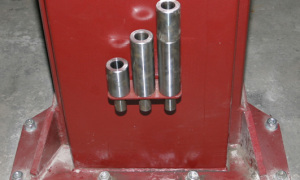

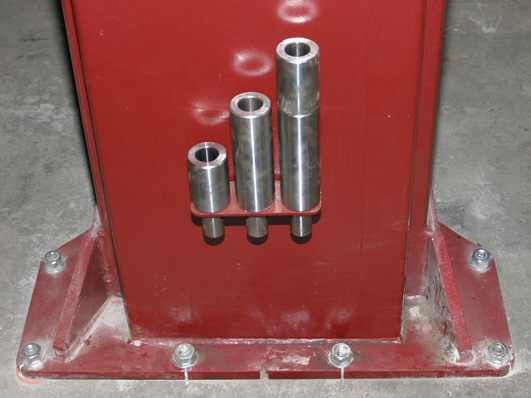

Lift Footprint
Mohawk’s large and stable footprint measures 30” wide and is made of 3/4” thick plate. Mohawk’s large base with 8 lag bolts gives stability to the lift, while distributing the load to the shop floor.

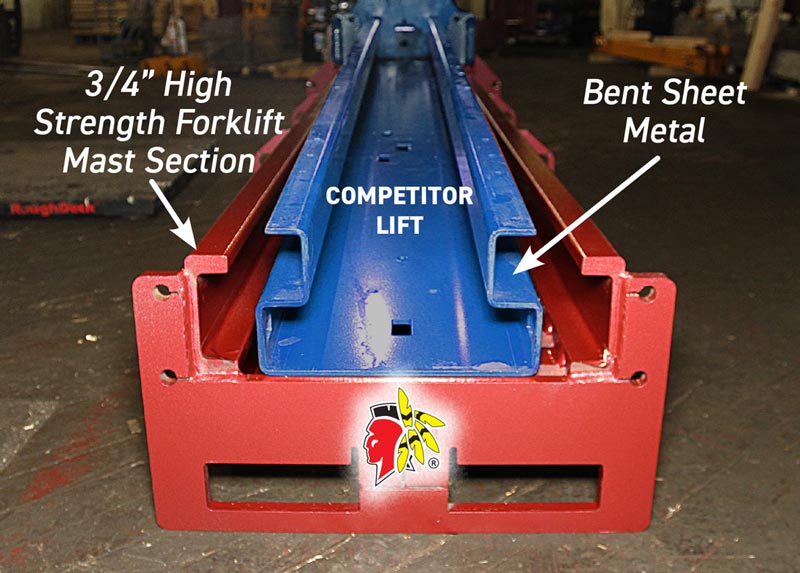

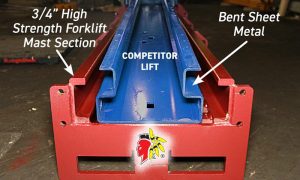

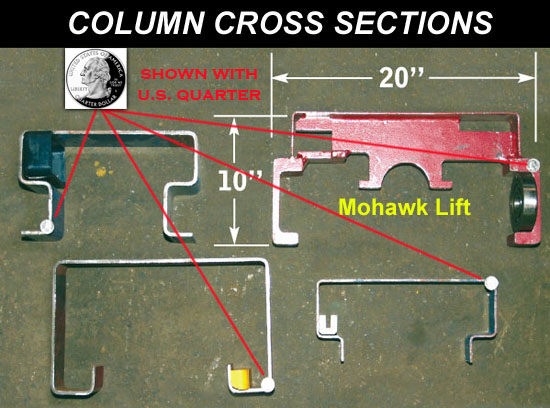

Column Comparison
Mohawks 10,000 lb. lift uses ¾” high-strength forklift mast steel columns (red lift, above), vs. competitor 12,000 lb. lifts that use bent sheet metal columns (blue lift, above).
Competitor Comparison
Mohawk fork lift channel & bearing (top right) VS. 3 different sheet metal columns which use plastic slides. Like your fork lifts mast, Mohawk lifts <strong>DO NOT WEAR OUT!</strong>

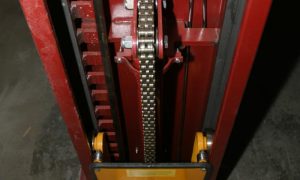

Heavy Duty Post Design

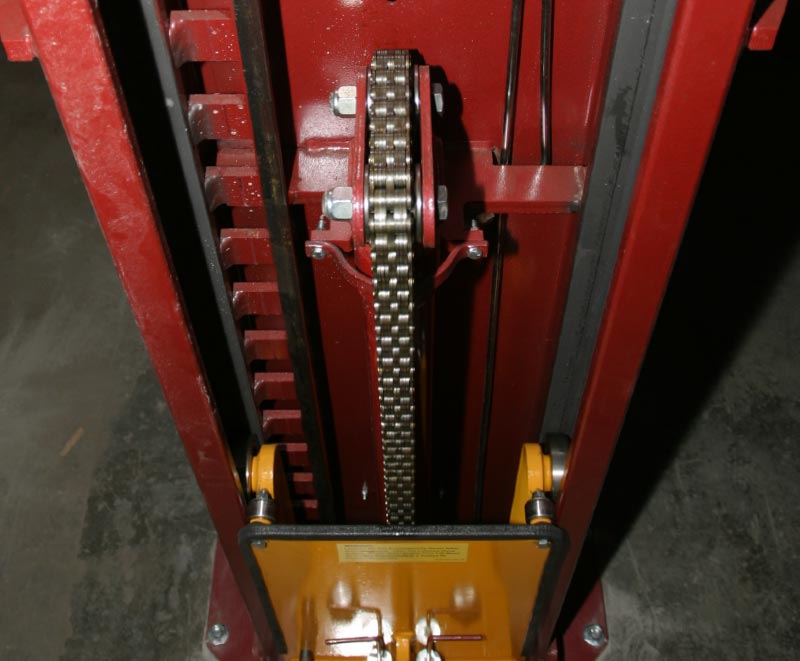

Heavy duty post design using DUAL cylinders with #646 leaf chain lifting, over DUAL bearings.

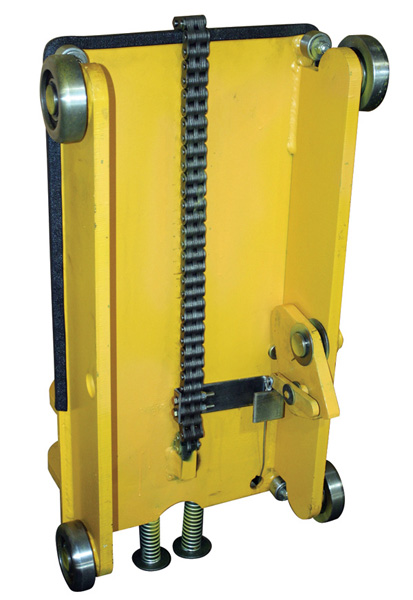

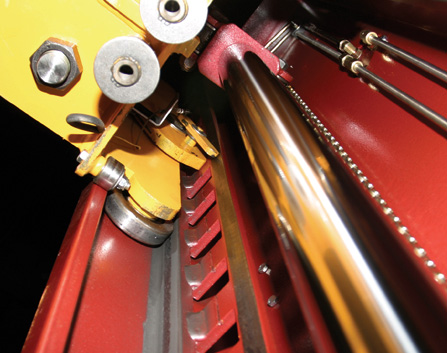

Carriage Rollers
Each carriage rolls on 8 steel ball bearing rollers for a lifetime of trouble-free service.

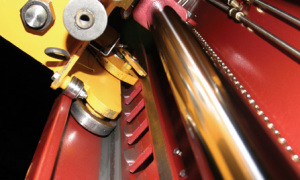

Mechanical Locks
All position mechanical locks in both columns engage the full length of travel.

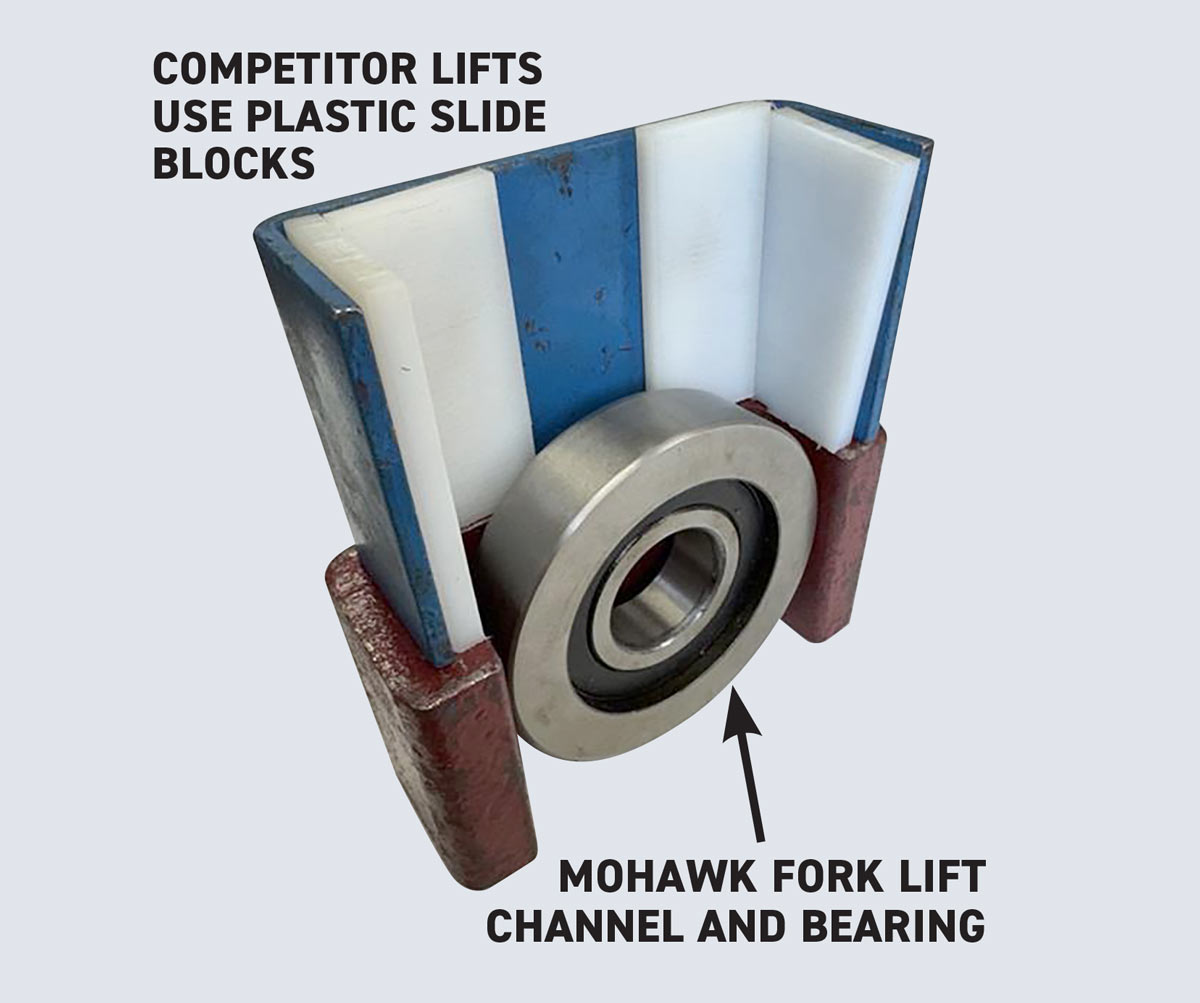

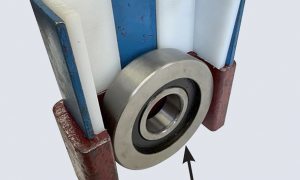

Fork Lift Channel
Fork lift channel & bearing (bottom) vs. competitive columns & plastic slider (top)

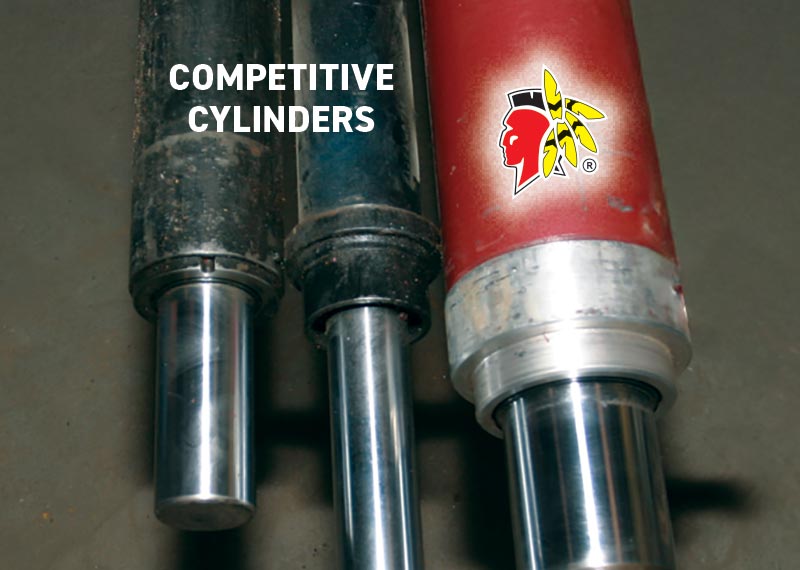

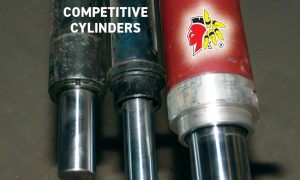

4" Cylinders
LARGE 4" CYLINDERS equal longer seal life and lower operating pressures vs. competitive cylinders.

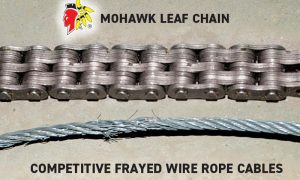

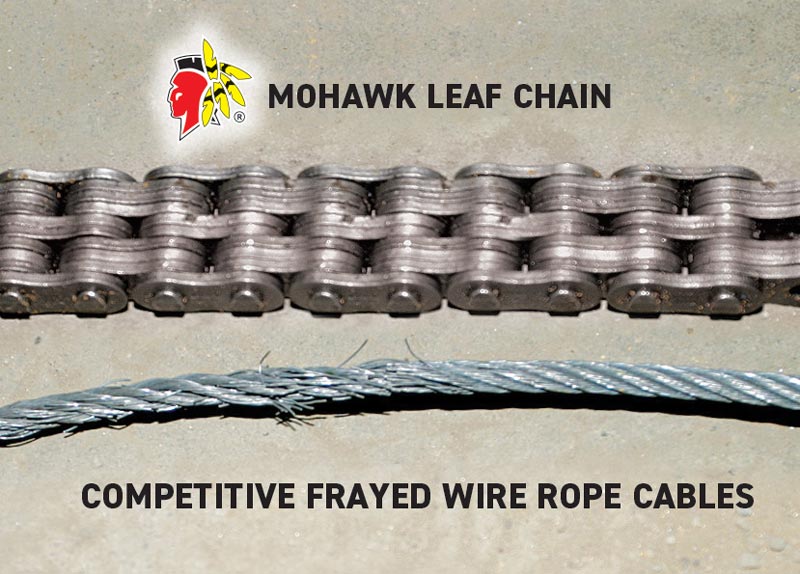

chain-vs-cable
Options & Accessories

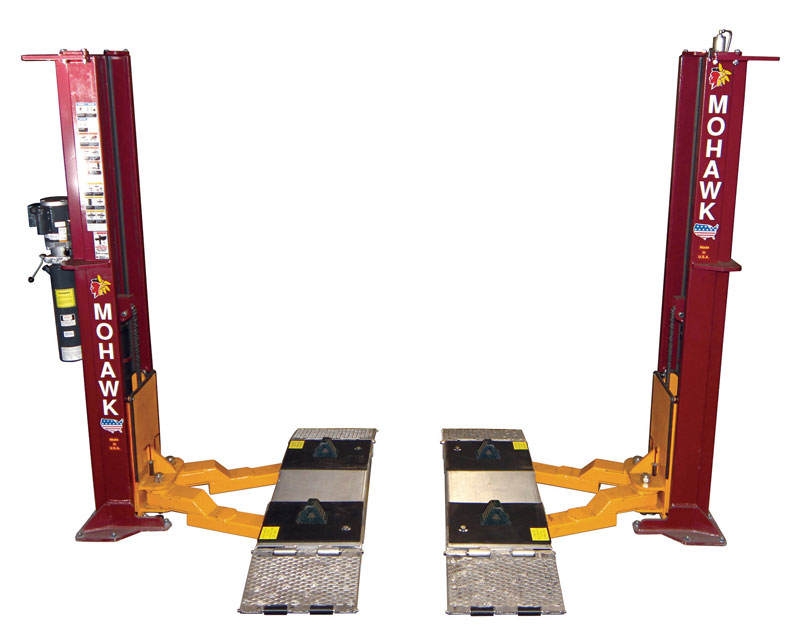

SPEEDLANE DRIVE-ON ADAPTOR
<a href="/automotive-lifts/specialty-items/speedlane-two-post-drive-on-adapter/">Learn more about the Speedlane Drive-On Adapter</a> Turns your two-post lift into a quick drive-on liftNo time wasted positioning swing arms

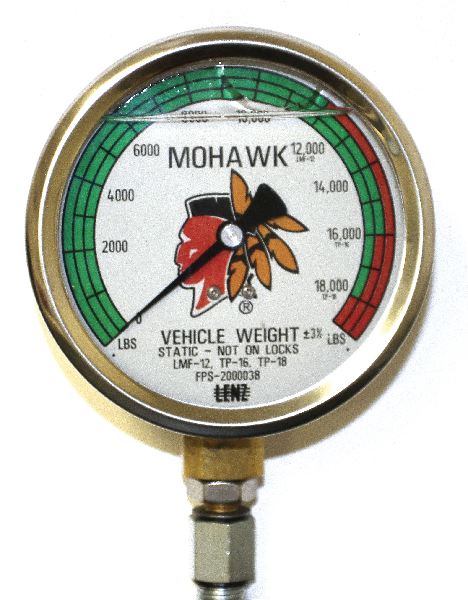

SAFETY WEIGHT GAUGE
<a href="/automotive-lifts/specialty-items/lift-weight-gauge/">Learn more about the weight gauge</a> Aides in vehicle diagnosis by measuring weight within 5% accuracyInstalled directly into the hydraulic systemEasy to read gaugeAs a diagnostic tool, the weight gauge will help you sell heavy duty brake parts, shocks, and tiresAvailable for all Mohawk two-post liftsGauge allows techs to know the lift has been lowered and is locked

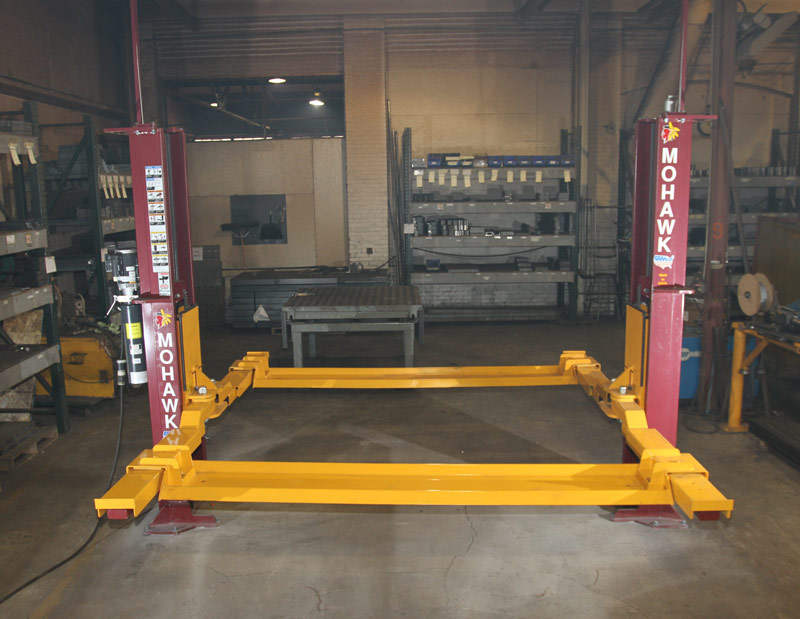

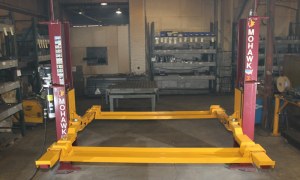

DUAL TROUGH TURF KIT
<a href="/automotive-lifts/2-post-lifts/turf-maintenance-equipment-auto-service-lift/">Learn more about the Turf Maintenance Adapter</a> Turns vehicle lift into a turf maintenance liftAvailable for 10,000 to 18,000 lb. capacity two-post liftsFull under-vehicle access and safety,with 6 foot working heightOffers maximum flexibility to service cars, light trucks, turf equipment or golf cartsInstallation is a simple, quick, one-man jobTakes less valuable shop space than 4-post liftsQuickly converts to turf lift or back to arm engaging lift in minutes

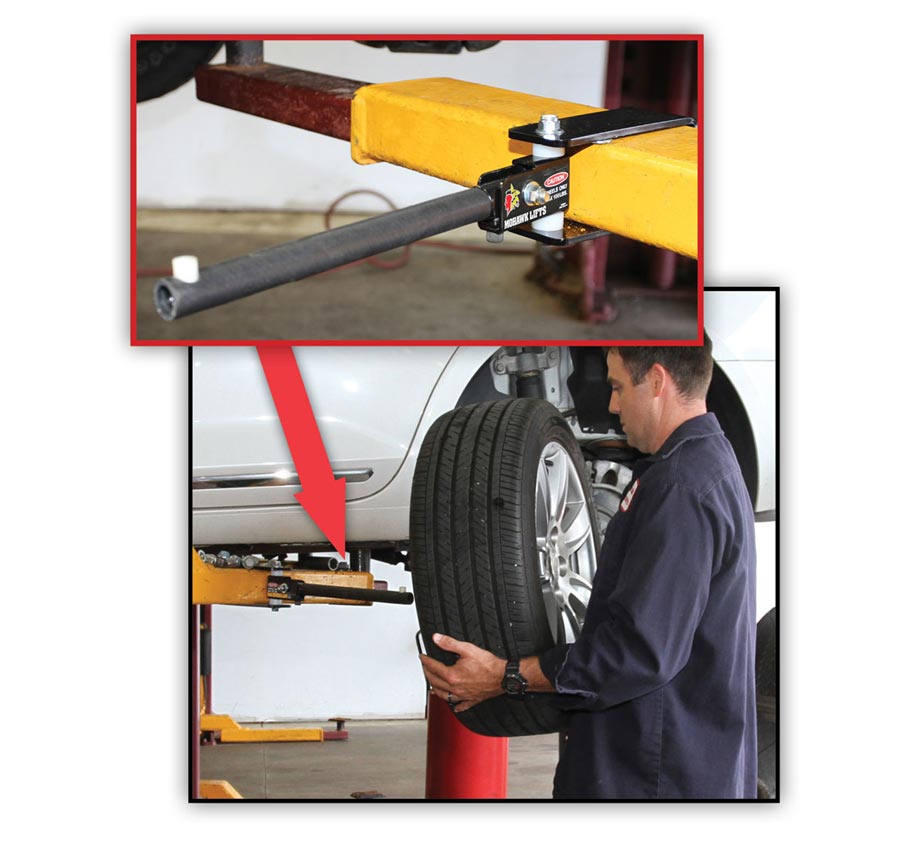

BACKSAVER
Save your technicians from bending down to lift heavy tires. Allows hanging your tires from lift swing arms. Simple 10 minute installation.

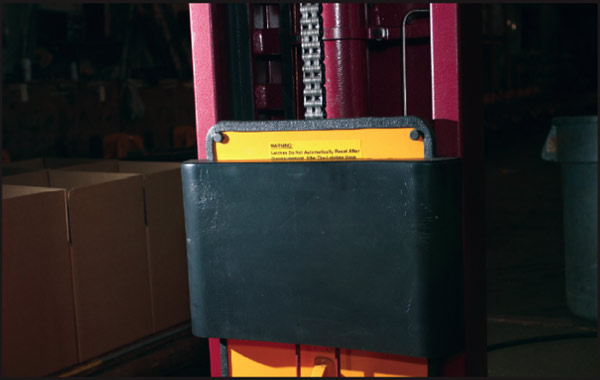

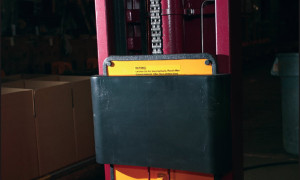

FOAM DOOR GUARD
Protects vehicle from dents and scratches if the door is accidentally opened into the columns2 inch thick soft foam will not damage doors, unlike other hard plastic door protectors.

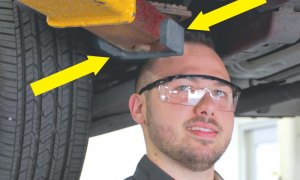

SWING ARM SAFETY HEAD GUARD
<a href="/automotive-lifts/specialty-items/2-post-automotive-lift-swing-arm-safety-head-guard/">Learn more about the safety head guard</a> Decreases workplace injuries by increasing worker safetyPrevents technicians from hurting or cutting their heads on hard steel swing armsEasily applied with a peel and stick applicationFits all lift brand swing arm sliders

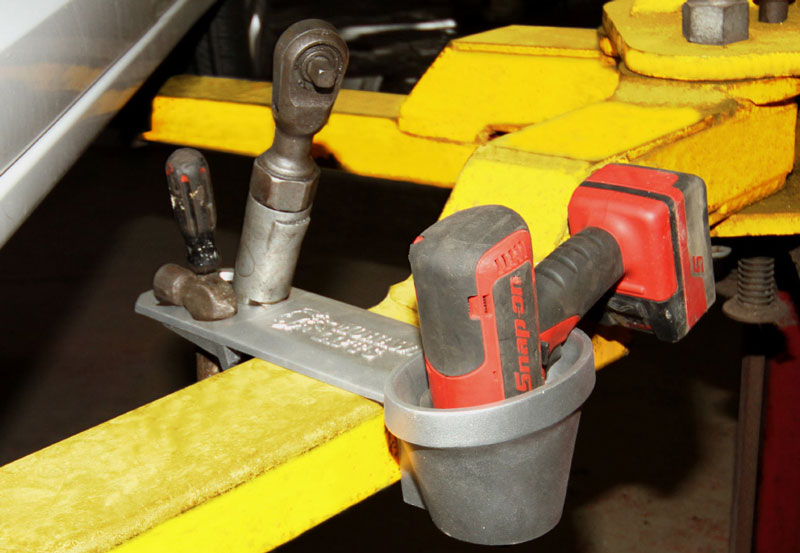

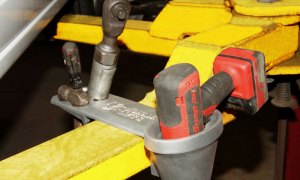

SWING ARM TOOL HOLDER
Fits all Mohawk 10,000 thru 18,000 lb. two post lifts Made for all brands and models of impact guns Tool side holds 45 pounds, cup side holds 100 lbs. of tools Slip on design means no installation Sold in pairs for left and right side of lift<a href="https://mohawklifts.wpenginepowered.com/automotive-lifts/specialty-items/two-post-tool-holder/">Learn more about the tool holder</a>

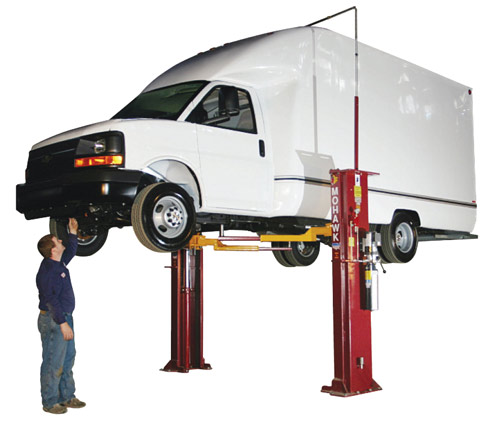

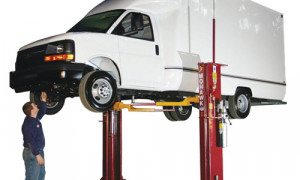

EXTENDED HEIGHT OVERHEAD LINES
Made of stainless steel that never needs replacingAdjustable to any ceiling height Hydraulic lines can be lowered for low ceiling shops

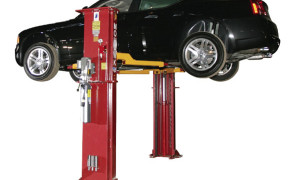

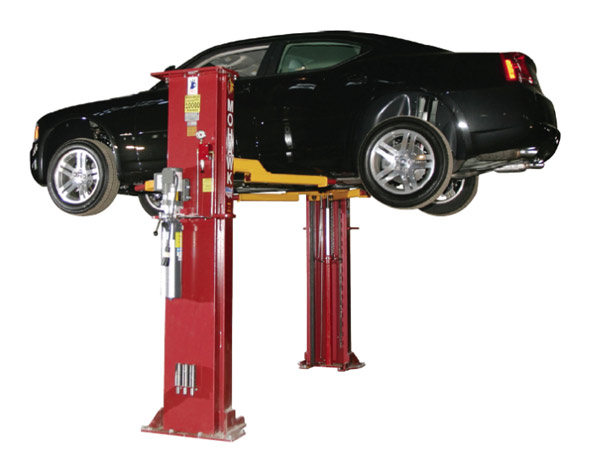

IN-FLOOR HYDRAULIC LINES
Eliminates overhead linesGreat for shops with low ceilingsMade from one-piece stainless steel, hydraulic lines that never corrodeFrees up overhead space for rolling shop cranes, tall vehicles, box vans or overhead shop equipment

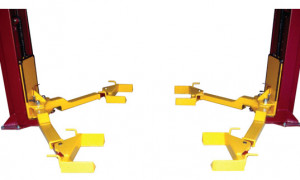

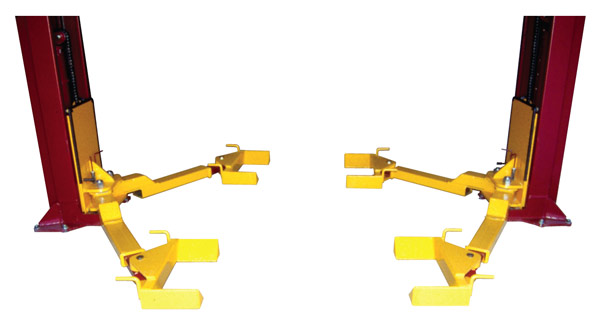

WHEEL ADAPTORS
<a href="/automotive-lifts/specialty-items/tire-engaging-adaptors/">Learn more about the WA-1 & WA-12 Tire Engaging Adaptors</a> Allows for quick conversion from a frame contact lift, to a wheel engaging lift and back againTakes up less shop space than any 4-post lift

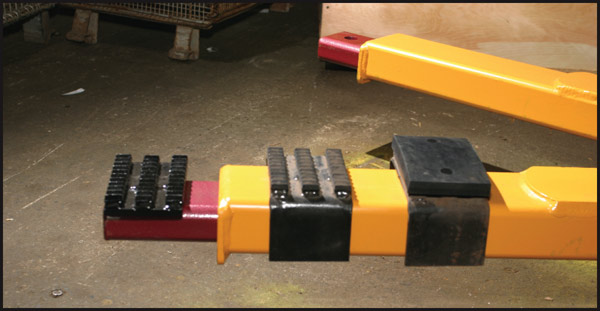

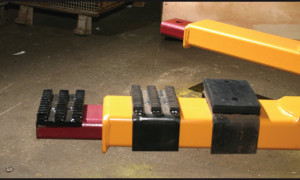

SWING-ARM LIFTING PAD
Attaches to swing arm and not sliderAvailable in rubber or steelGives access for special lifting requirementsOptional rubber protects underbody

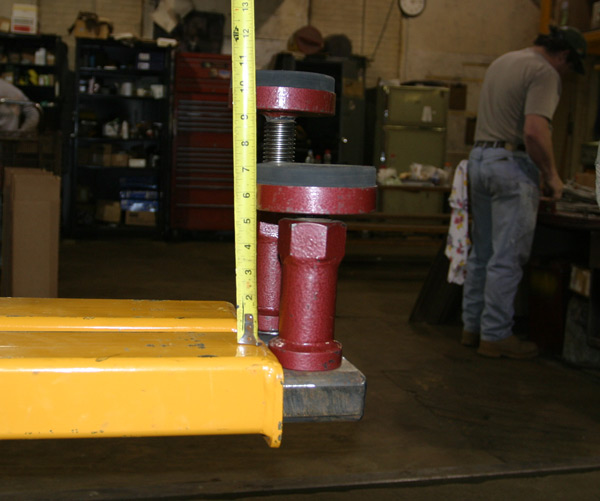

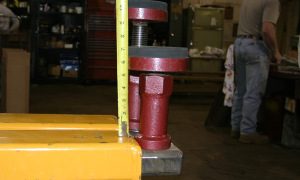

ADJUSTABLE SCREW PADS
Height adjustable screw type lift pads. Available for all 10,000 to 30,000 lb. capacity two-post lifts Choice of rubber or steel top pads. Gives additional 3+ inches of fine pad adjustmentSpecifications
Please visit the Architects Section for all specifications.
| Model: | System 1A |
|---|---|
| Capacity: | 10,000 lbs. |
| Motor Rating: | 2.0 HP/208-230V,Single-phase (3ø optional) |
| Synchronization: | Hydraulic fluid displacement using no chains, cables, or overhead obstructions |
| Arm Pad Height: | 3 1⁄2" |
| Lifting Height: | 6' under arm |
| Lift Pad Height @ Full Rise: | 6’ 3 1⁄2" |
| Lift Pad Height @ Full Rise w/Adaptors: | 7’ 1⁄2" |
| Overall Width (adjustable): | 11' 10" |
| Width Between Posts: | 10’ (adjustable) |
| Width Between Lifting Arms: | 8’ 10” (adjustable) |
| Column Height: | 8’ 7” |
| Overhead Hydraulic Line Height: | 12’ Standard (adjustable to accommodate any height ceiling or routed in-floor) |
| Weight: | 2,500 lbs. |
| Concrete Floor Requirements: | 4000 psi (27579.02 kPa) mix 61/2” |
| Anchoring System (included): | (16) 3⁄4"x5" bolts |
| Mechanical Safety Locks: | Automatic; all position starting at 5" |
| Hydraulic Safety Systems: | Automatic; all position |
| Swing Arm Restraints: | Automatic upon ascent |
| Cylinders: | 2 (1 per column) |
| Drive System: | #646 leaf chain routed over cylinder |
| Lifting Speed: | 50 seconds at full load (faster with lighter load) |
| Thrust & Guide Bearings: | (16) 4" diameter, (8 per carriage) double sealed, self-lubricating ball bearing rollers |
| 3” Frame Adaptors (stackable): | 4 included as standard equipment |
| 6” Frame Adaptors (stackable): | 4 included as standard equipment |
| Floor Access Between Posts: | Clear and unobstructed |
| Warranty: | 25 years structural, 10 year mechanical, plus limited lifetime cylinder seal warranty |
