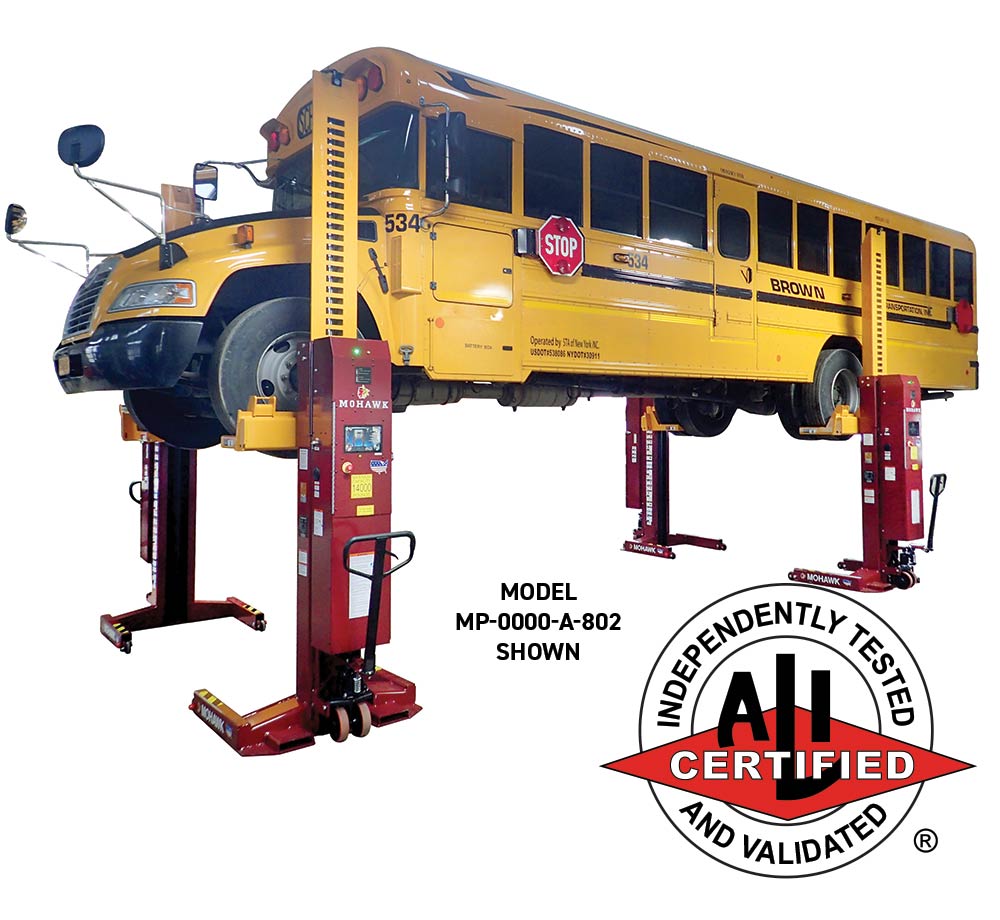

800 Series Mobile Column Lifts

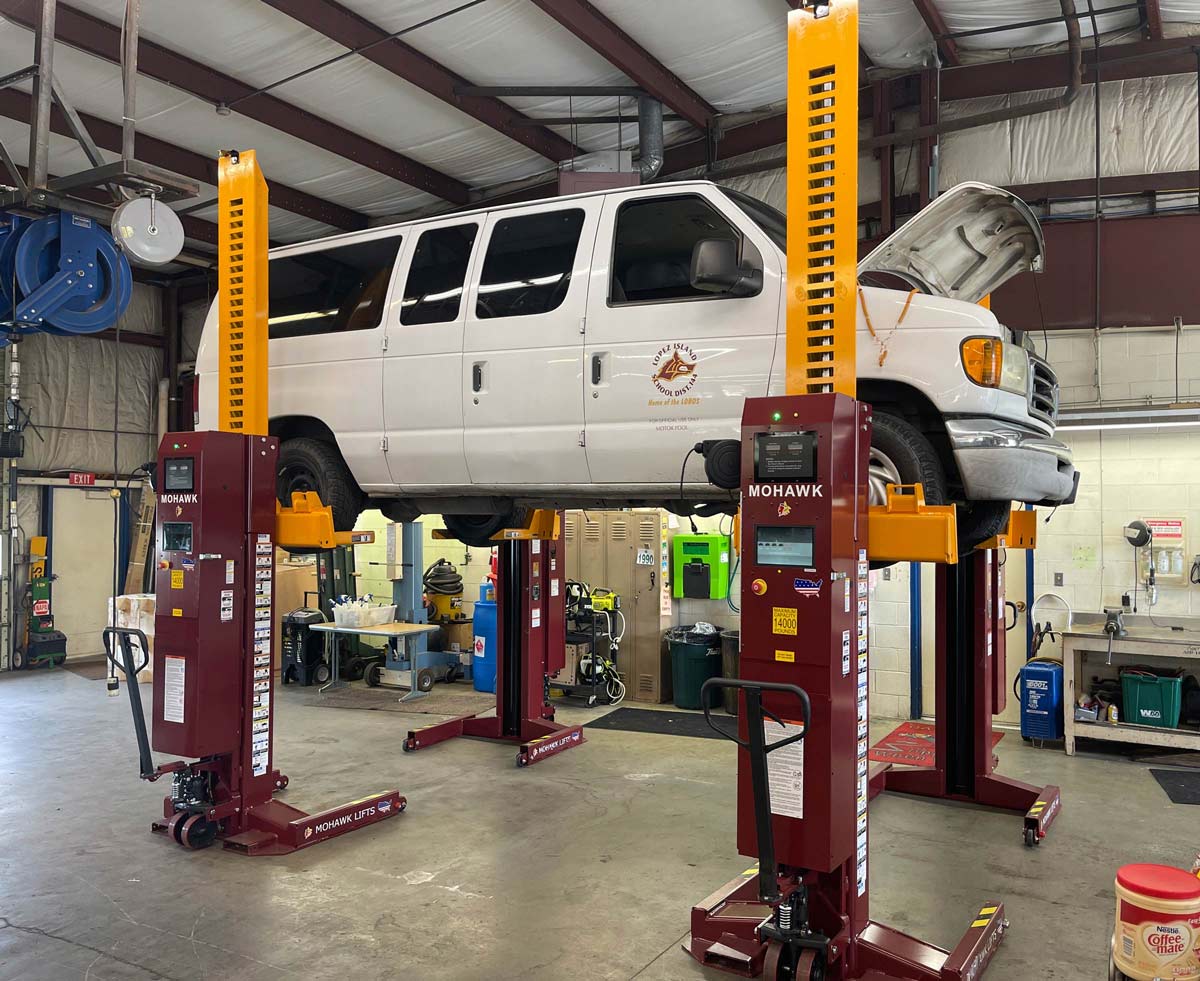

The Mohawk 800 Series Mobile Column Lifts provide 14,000- or 18,000-pound capacity per column, allowing total lift configurations of 56,000 or 72,000 pounds with a set of four. Each column can operate individually, in pairs, or as a synchronized group of up to eight, and the compact design lets a single operator roll the columns into position and transform any flat surface into a fully functional service bay within minutes.
Product Details
Heavy-Duty Wireless Capacity
The Mohawk 800 Series delivers fully wireless lifting for the largest commercial fleets. Sets of four columns provide 56,000- or 72,000-pound total capacity, and columns can operate individually, in pairs, or as a synchronized group of up to eight. A 10-inch touchscreen on any column serves as the master control, offering built-in diagnostics and system browsing for quick vehicle troubleshooting.
Safety & Versatility
Technicians can set the vehicle at the optimal working height thanks to a safety latch rack that locks every 2.5 inches. Adjustable lifting forks fit wheel diameters from 5 to 24.5 inches without reducer sleeves, and the low-profile fork angle makes positioning easy—even for flotation tires. A positive-grip carriage design keeps forks secure once engaged. Optional adapters add even more capability, including an 18,000-pound front-to-rear adapter and a 15,000-pound forklift adapter, expanding the range of vehicles the 800 Series can handle with confidence.
Stable, Low-Maintenance Performance
A 24-volt wireless system runs on multiple frequencies to minimize interference, while visual charge indicators display real-time battery status. Each column uses a retractable wheel design that plants more steel on the floor for unmatched stability and safety, and hydraulic lifting ensures smooth, low-maintenance operation. Standard lift height is 69 inches, with a 32-inch Wheel-Lift mode when using two columns for tire or brake work.
Featured Images

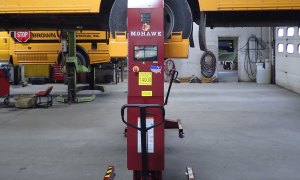

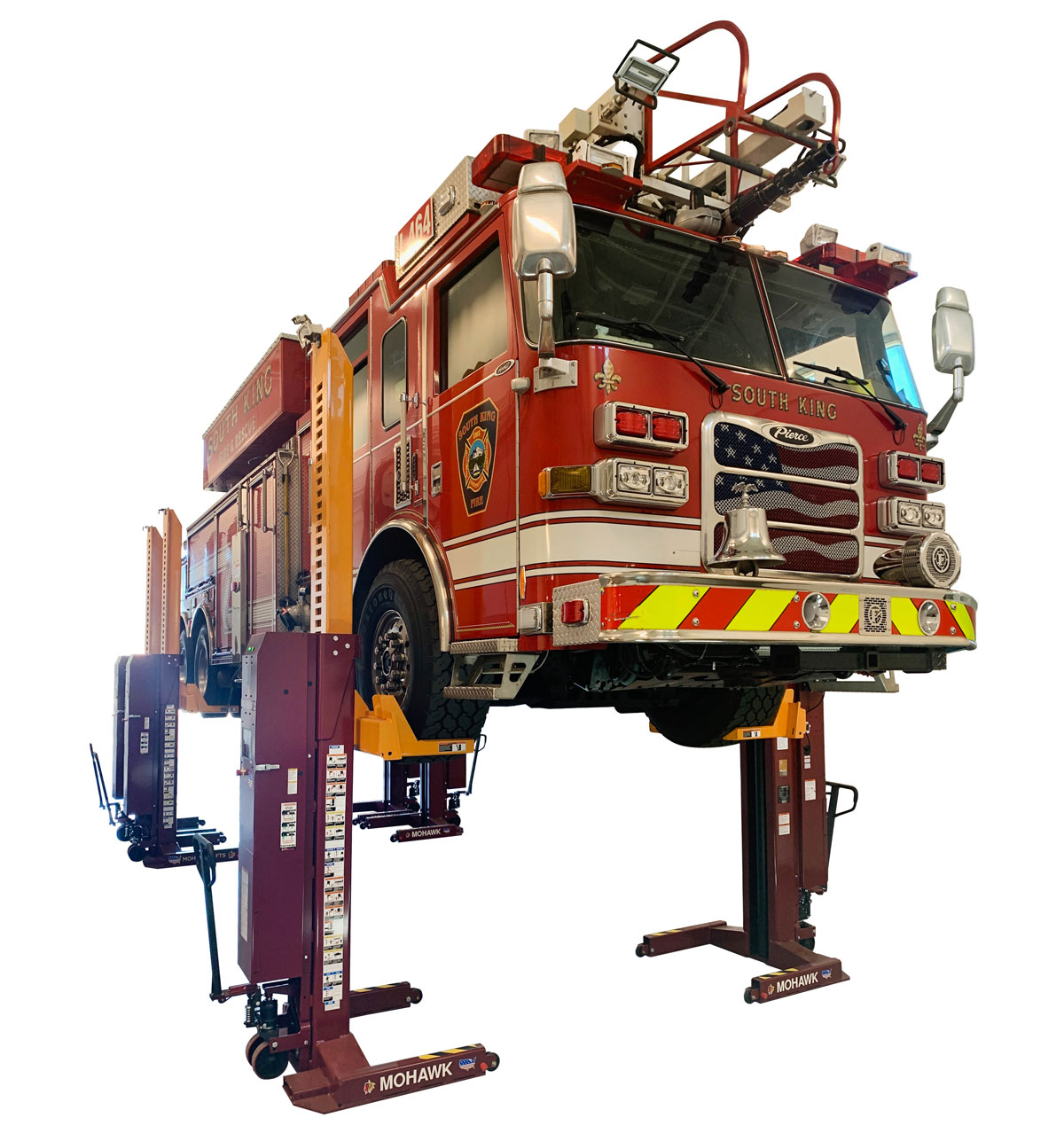

Wireless Columns

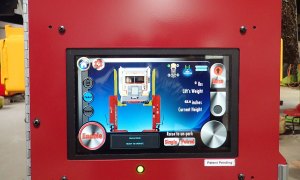

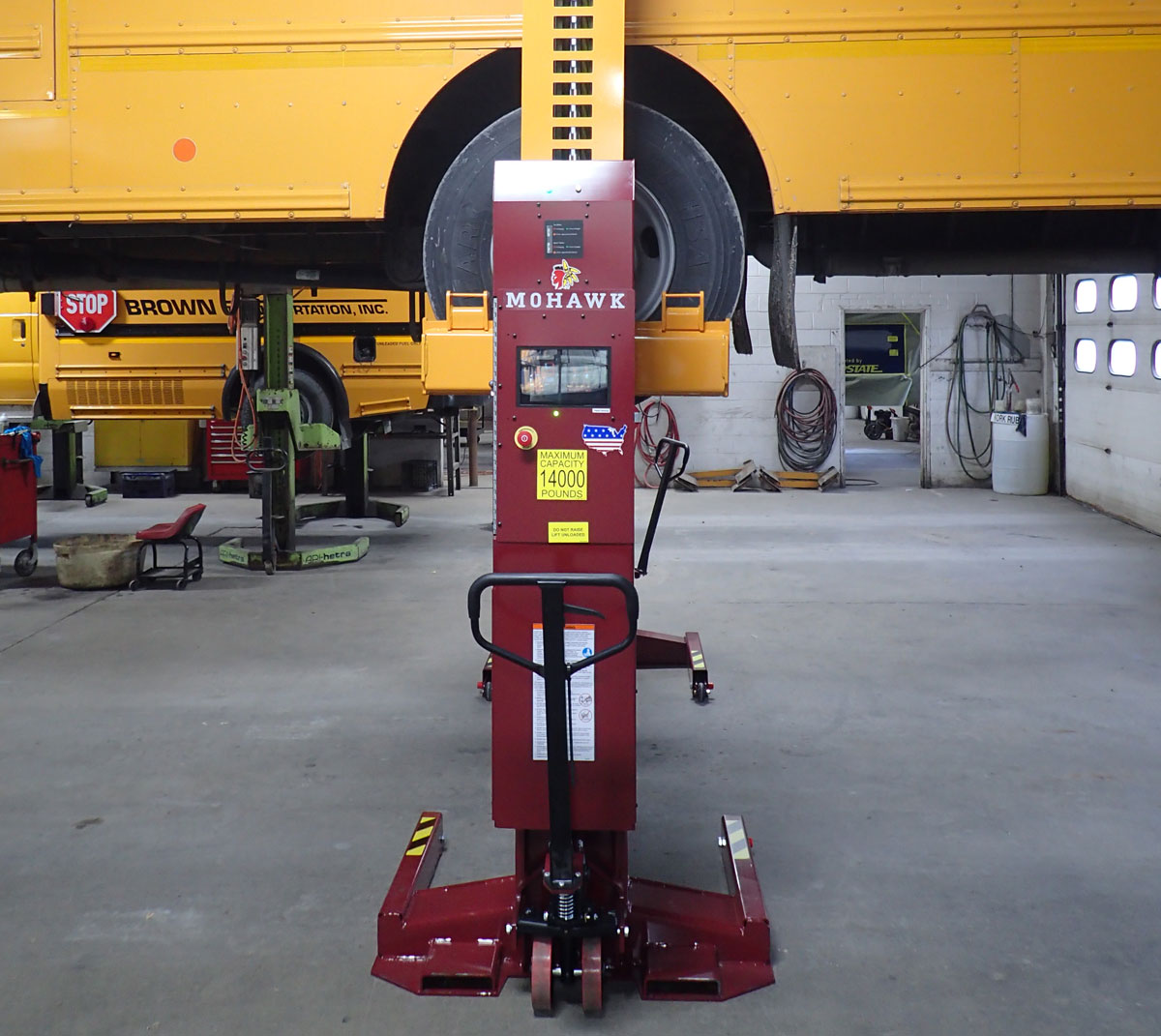

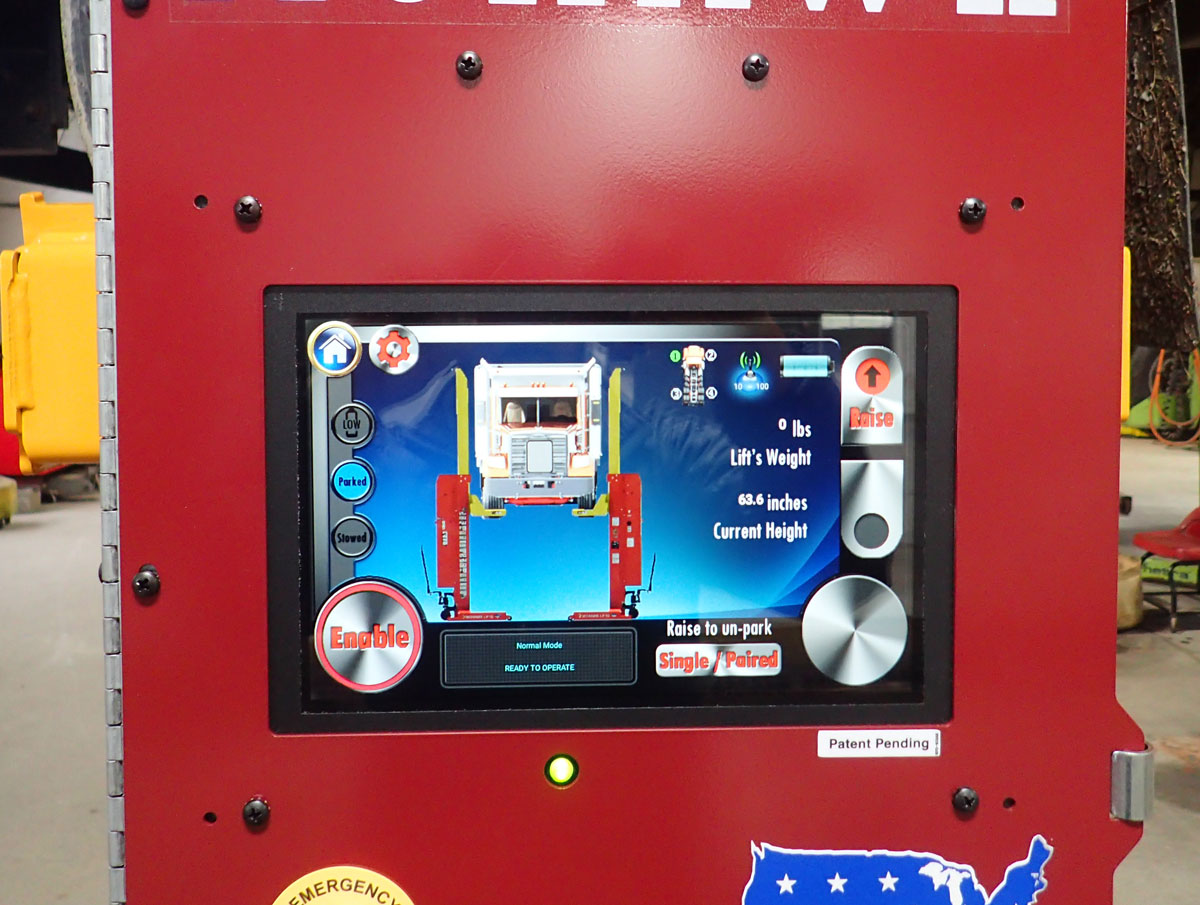

Full Diagnostic Display

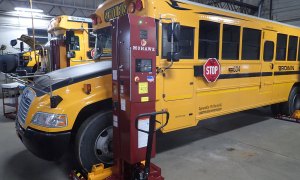

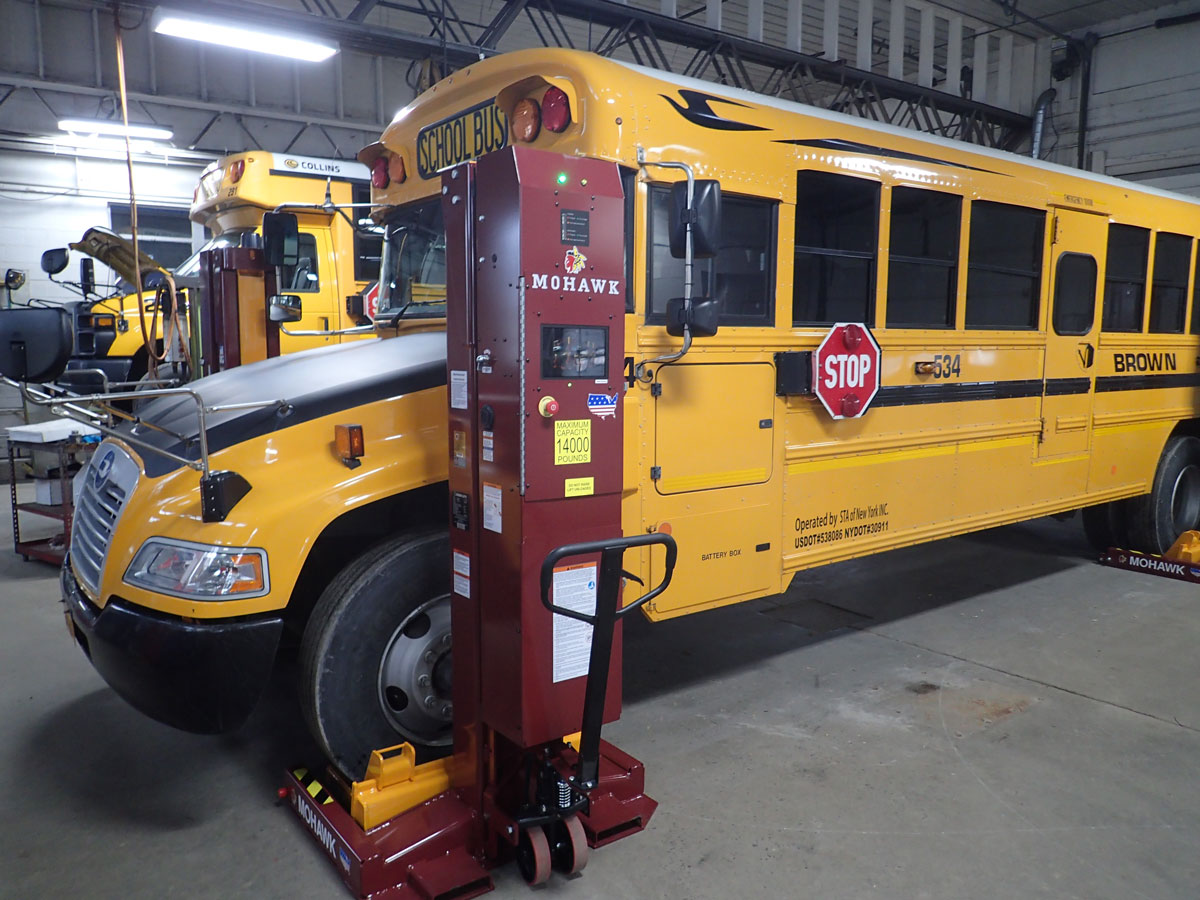

Compact Footprint

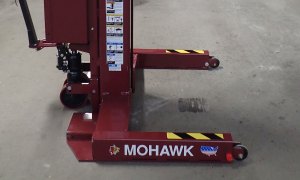

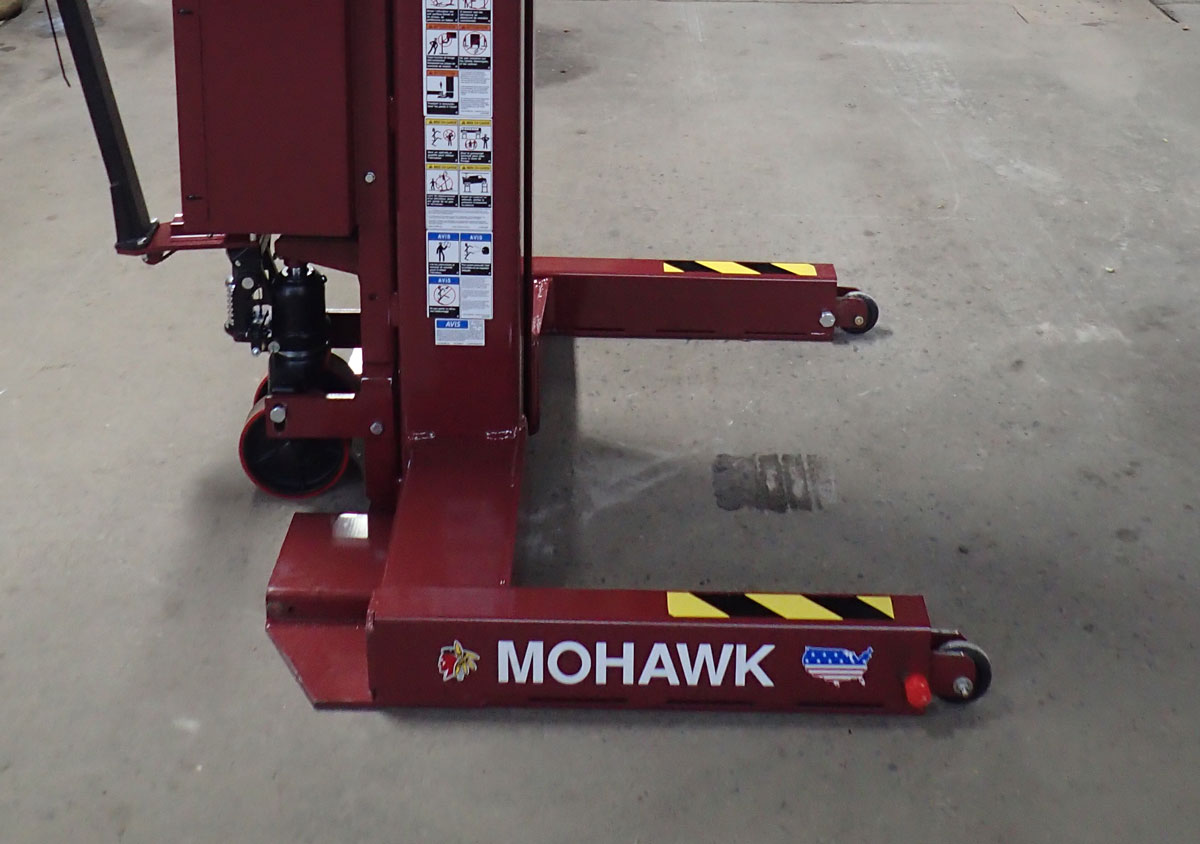

Base Design

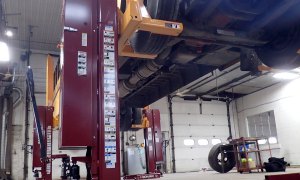

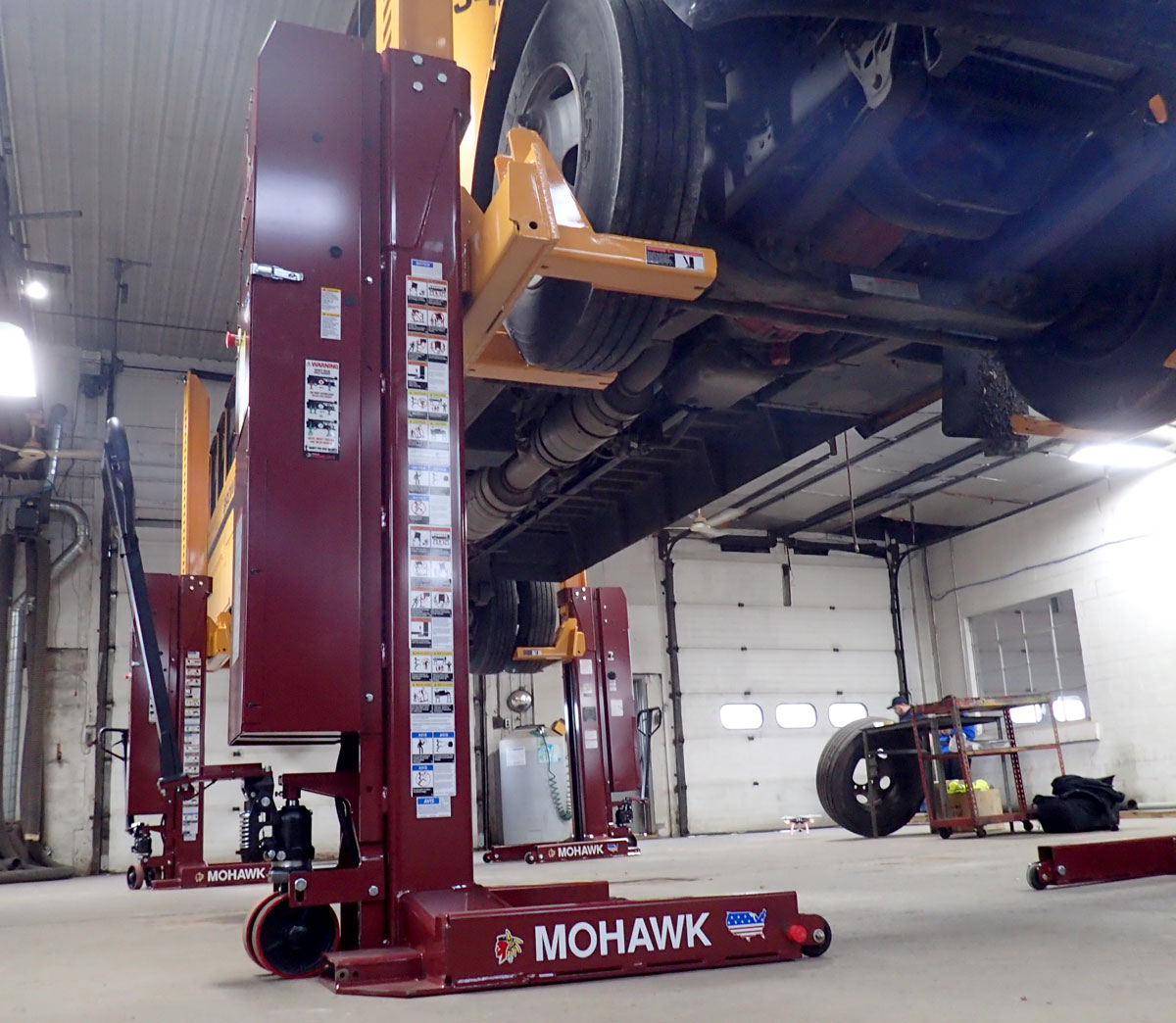

Under Carriage Access
Options & Accessories

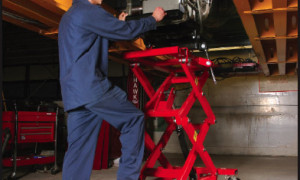

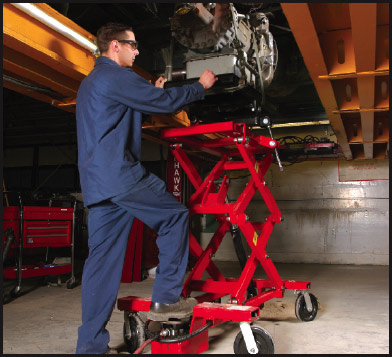

SCISSOR LIFTING TABLE
Scissor Table 2,500 lb. air/hydraulic scissor lifting table for removing rear ends, differentials or heavy transmissions

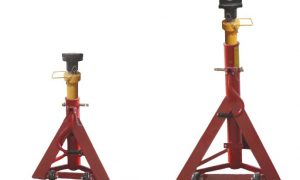

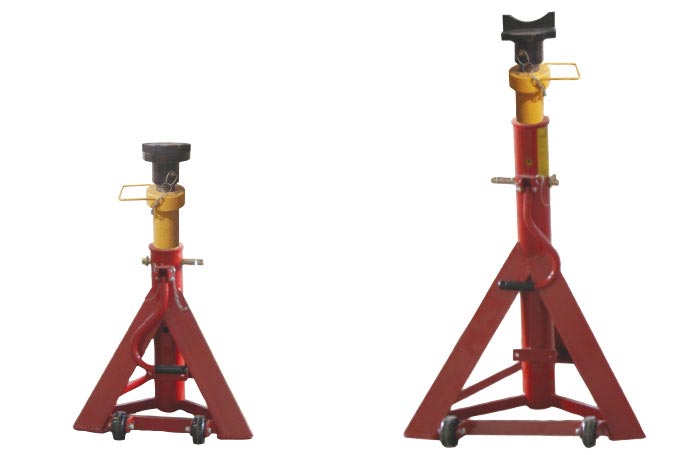

MID & FULL HEIGHT JACK STANDS
Allows multiple vehicles to be raised with just 1 set of columnsETL certified to meet national ANSI standards7" fine adjustment at top of standSpring loaded for easy raising and lowering

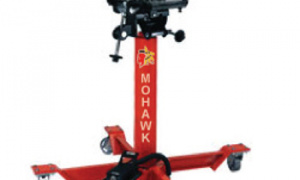

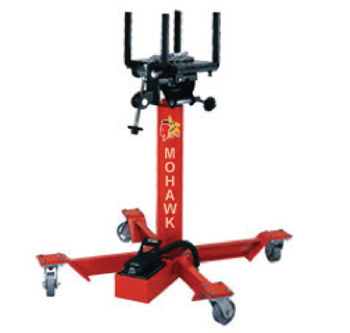

Transmission Jack
Transmission Jack 2,000 lb. capacity Fully adjustable universal saddle with adjustable arms to position the transmission Air/Hydraulic foot pump provides hands free operation and easy convenient lifting

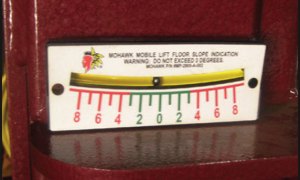

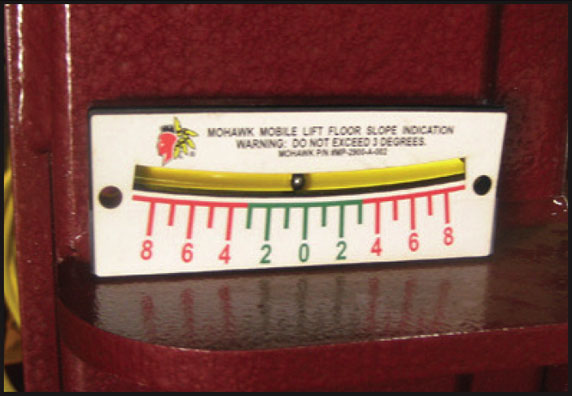

SLOPE INDICATOR
Attaches to the mobile column to display the floor slope measured in degrees
Specifications
Please visit the Architects Section for all specifications.
| Model: | MP-800-014 | MP-800-018 |
|---|---|---|
| Capacity per Post: | 14,000 lbs. | 18,000 lbs. |
| Height of Lift Unit: | 88.5" | |
| Height of Lift Unit at Full Rise: | 157.125" | |
| Width of Lift Unit: | 44.25" | |
| Length of Lift Unit: | 53.625" | |
| Max. Lift Height (4 or more units): | 69" | |
| Max. Lift Height (2 units - Wheel Lift Mode: | 32" | |
| Min-Max Wheel Diameter: | 5" - 24.5" | |
| Max. Hydraulic System Operating Pressure: | 2,180 psi | 2,600 psi |
| Lift Speed (Max Load): | 60" per min. | |
| Weight of Lift Unit: | 1,485 lbs | 1,510 lbs |
| Footprint of Lift Unit: | 560 sq in. | |
| Ground Pressure for each Lift (Max. Load): | 27.7 psi | 36.6 psi |
| Turning Radius of Lift Unit: | 47" | |
| Operating Peak Power: | 4HP | |
| Operating Voltage: | 24 VDC Nominal | |
| Charger Voltage Required: | 120 VAC @ 60 Hz | |
| Charger Amps Required | 1.3 amps | |
