Turf Maintenance Equipment & Auto Service Lift
Shop Power Meets Turf Maintenance

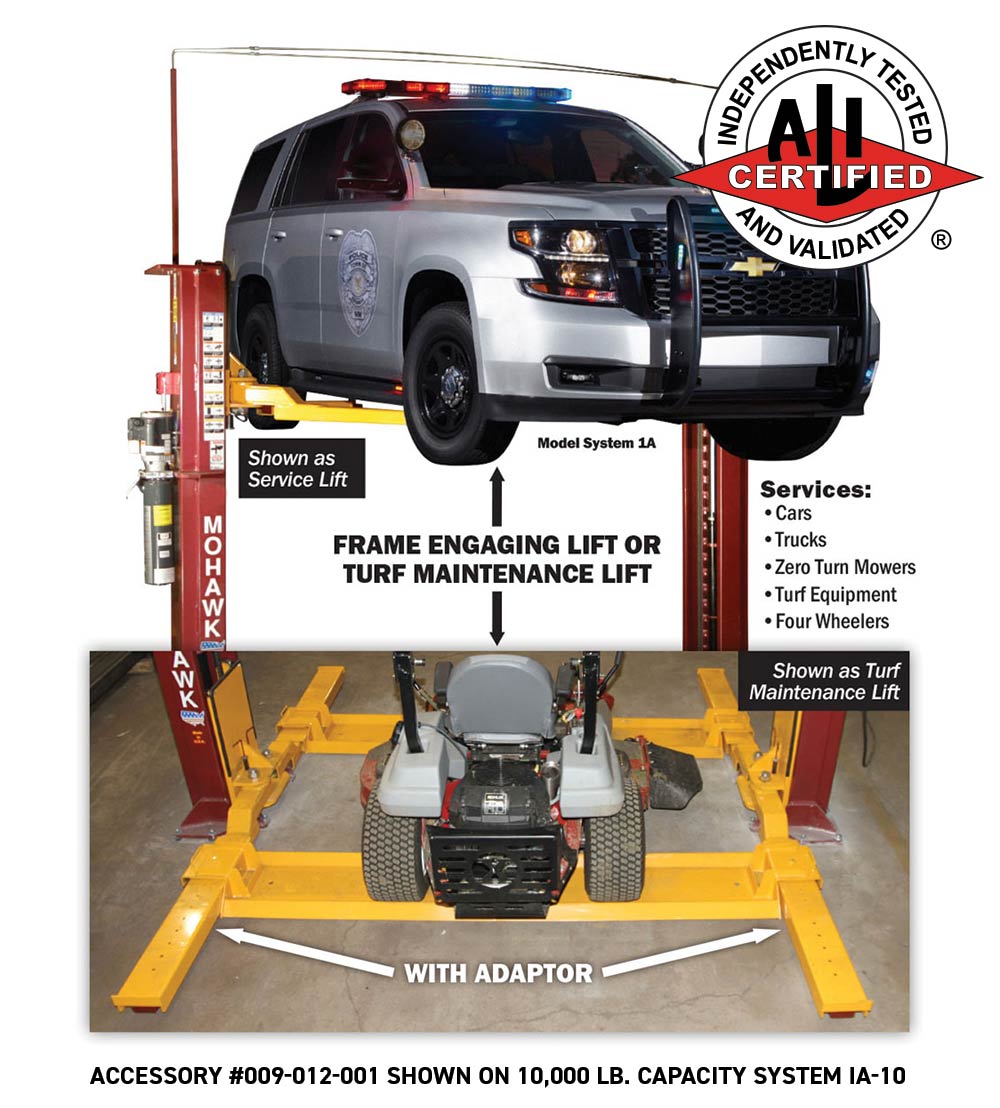

The only lift made (or designed) for both vehicle service and turf maintenance equipment. The Turf Adapter with Dual Trough kit is designed to be used on all 10,000–20,000 lb. capacity 2 post lifts and can service; cars, trucks, zero turn mowers, turf equipment, four wheelers.
Product Details
Turf Maintenance Equipment Adapter
Designed for municipalities, school campuses, and multi-use service facilities, the Mohawk Turf Maintenance Equipment Adapter transforms a standard Mohawk 2-post vehicle lift into a versatile turf service solution. Built to work seamlessly with Mohawk 10,000–20,000 lb. capacity 2-post lifts, this adapter allows technicians to service both traditional vehicles and a wide range of turf equipment on the same lift.
From carts and UTVs to zero-turn mowers, large turf machinery, and GSE equipment, the adapter speeds up repairs while improving access, stability, and safety. The result is a single lift solution that reduces downtime, maximizes shop efficiency, and eliminates the need for dedicated turf-only lifting equipment.
Superior Engineering for a Lifetime of Service
Mohawk lifts are engineered from the ground up for strength, longevity, and real-world shop performance. Each column is constructed from massive ¾″-thick forklift mast steel with wide 4″ sections, delivering unmatched rigidity and a lifetime of dependable service. The lift carriages glide smoothly on eight double-sealed, self-lubricating steel ball-bearing rollers — NOT plastic sliders — ensuring quiet, maintenance-free operation year after year.
Lifting power comes from two large, heavy-duty hydraulic cylinders, providing a safer, steadier lift than single-cylinder designs or lifts with undersized components. Adjustable overhead stainless-steel hydraulic lines can be set at virtually any height, routed overhead or in-floor, making the system adaptable for tall trucks, vans, and turf equipment — or easily configured for low-ceiling shops. Low-profile 3½″ swing arms fit beneath even the lowest vehicles, while stackable truck adapters come standard for added versatility.
Mohawk’s Industry-Leading Safety Systems
Safety is built into every Mohawk lift, not added as an afterthought. All models feature all-position mechanical safety locks in both columns, starting as low as 5 inches and continuing through the full lifting height. These systems are backed by Mohawk’s patented infinite-position internal hydraulic safeties, along with external pressure-compensated flow controls and velocity fuse valving for redundant protection.
Swing-arm restraints automatically engage as the vehicle is lifted and release only when the lift is fully lowered, helping ensure proper arm positioning at all times. Mohawk also backs its engineering with one of the most comprehensive warranties in the industry — including 25 years on structural components, 10 years on mechanical parts, and a limited lifetime warranty on cylinder seals — reinforcing their commitment to safety, durability, and long-term value.
Superior Operation & Maintenance-Free Design
Mohawk’s hydraulic systems are designed for precision, balance, and minimal maintenance. Hydraulic fluid is transferred between the twin cylinders through stainless-steel lines — NOT rubber hoses — routed overhead or optionally through the floor. This patented hydraulic synchronization system eliminates the need for cables, pulleys, equalizer chains, restrictive overhead covers, or floor plates, resulting in a cleaner, more reliable installation.
Depending on the model, Mohawk lifts utilize either heavy-duty leaf chain lifting systems with twin bearings or direct-drive designs, both of which avoid the stretching, fraying, and frequent maintenance associated with cable-driven lifts. Combined with steel ball-bearing carriage rollers, this approach delivers smoother operation, reduced wear, and long-term reliability that stands up to daily use in demanding turf maintenance and service environments.
The Industry’s Best Warranty—Guaranteed
Backed by the best warranty in the business, Mohawk two post lifts include:
- 25-year structural warranty
- 10-year mechanical warranty
- Limited lifetime hydraulic cylinder seal warranty
No other lift manufacturer matches Mohawk’s confidence—or commitment—to quality and customer support.
Features & Images
View More Images of This Lift on the Mohawk Lifts PR Site

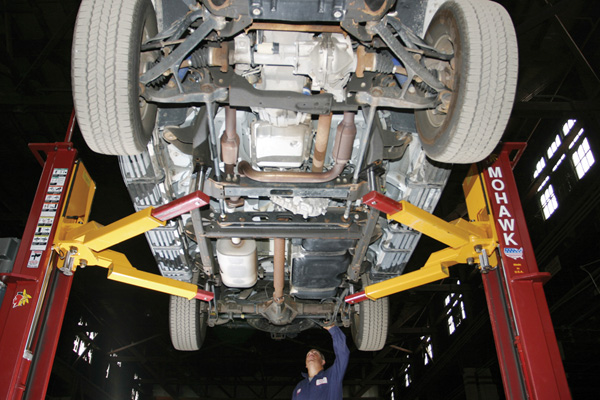

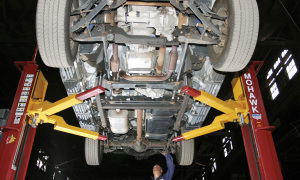

Under Vehicle Access
Two post lifts offer FULL under vehicle access for all repairs, takes up minimal bay space, while leaving the wheels hanging free for tire, brake or any other necessary repairs.

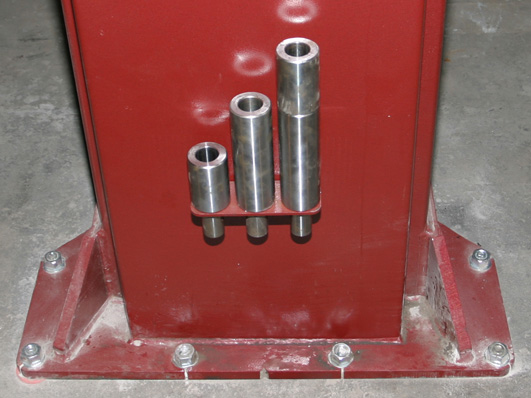

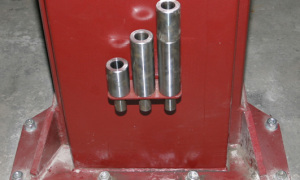

Lift Footprint
Mohawk’s large and stable footprint measures 30” wide and is made of 3/4” thick plate. Mohawk’s large base with 8 lag bolts gives stability to the lift, while distributing the load to the shop floor.

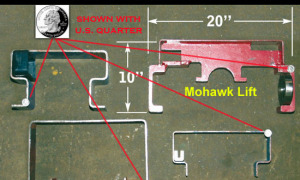

Competitor Comparison

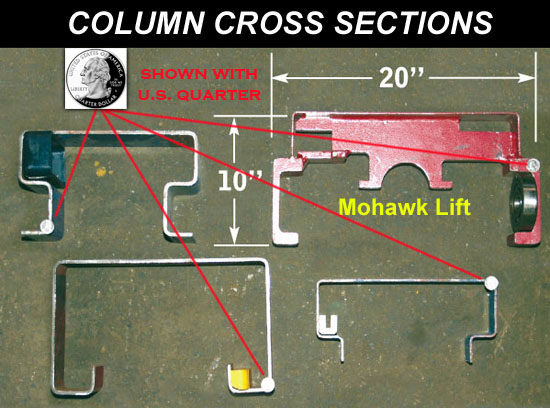

Mohawk fork lift channel & bearing (top right) VS. 3 different sheet metal columns which use plastic slides. Like your fork lifts mast, Mohawk lifts DO NOT WEAR OUT!

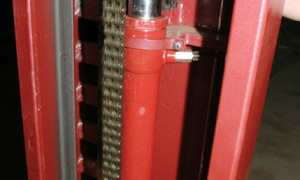

Heavy Duty Post Design

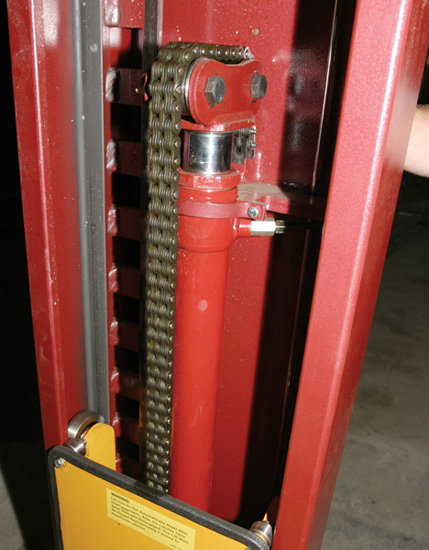

Heavy duty post design using DUAL cylinders with #646 leaf chain lifting, over DUAL bearings.

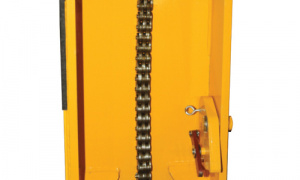

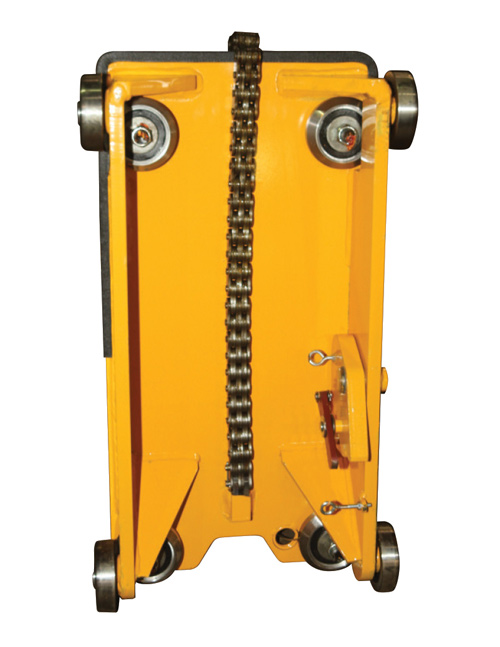

Carriage Rollers
Each carriage rolls on 8 steel ball bearing rollers for a lifetime of trouble-free service.

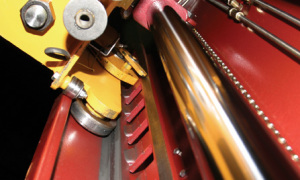

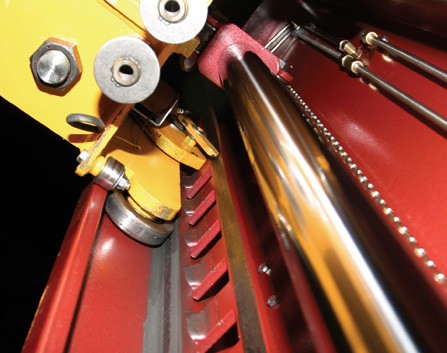

Mechanical Locks
All position mechanical locks in both columns engage the full length of travel.

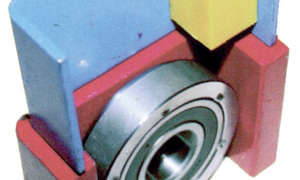

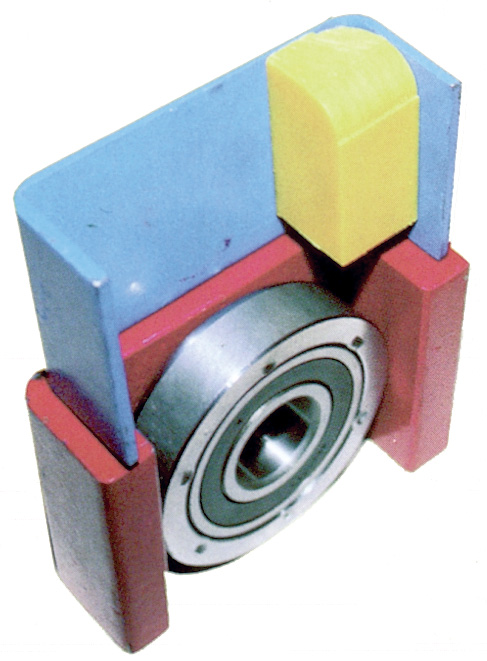

Fork Lift Channel
FORK LIFT CHANNEL & bearing (bottom) vs. competitive columns & plastic slider (top)

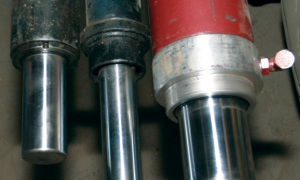

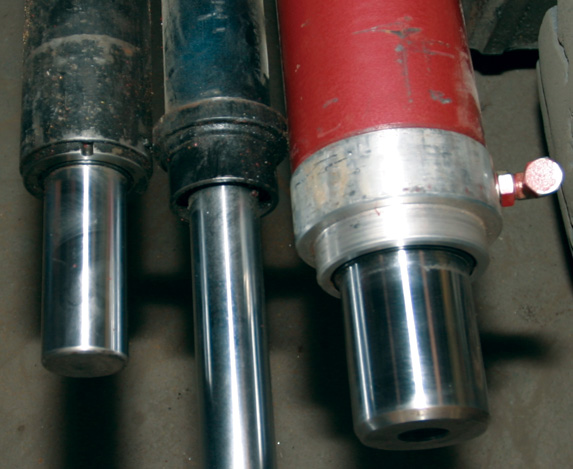

4" Cylinders
LARGE 4” CYLINDERS equal longer seal life and lower operating pressures vs. competitive cylinders.

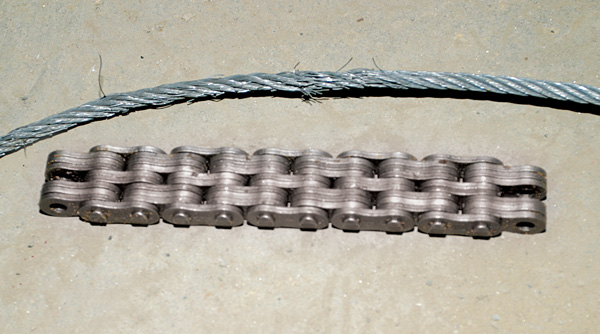

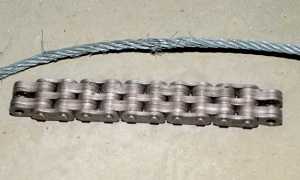

High Strength Chain
#646 HIGH STRENGTH leaf chain compared to the competitive cables which fray.Options & Accessories

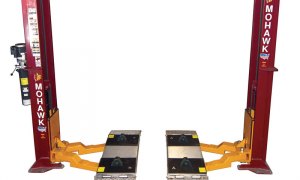

SPEEDLANE DRIVE-ON ADAPTOR
Learn more about the Speedlane Drive-On Adapter Turns your two-post lift into a quick drive-on liftNo time wasted positioning swing arms

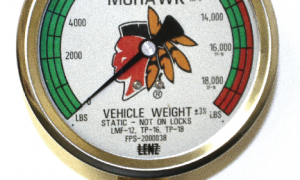

SAFETY WEIGHT GAUGE
Learn more about the weight gauge Aides in vehicle diagnosis by measuring weight within 5% accuracyInstalled directly into the hydraulic systemEasy to read gaugeAs a diagnostic tool, the weight gauge will help you sell heavy duty brake parts, shocks, and tiresAvailable for all Mohawk two-post liftsGauge allows techs to know the lift has been lowered and is locked

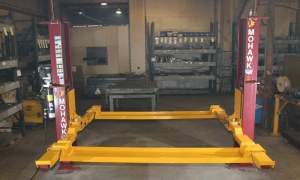

DUAL TROUGH TURF KIT
Learn more about the Turf Maintenance Adapter Turns vehicle lift into a turf maintenance liftAvailable for 10,000 to 18,000 lb. capacity two-post liftsFull under-vehicle access and safety,with 6 foot working heightOffers maximum flexibility to service cars, light trucks, turf equipment or golf cartsInstallation is a simple, quick, one-man jobTakes less valuable shop space than 4-post liftsQuickly converts to turf lift or back to arm engaging lift in minutes

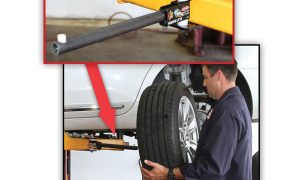

BACKSAVER
Save your technicians from bending down to lift heavy tires. Allows hanging your tires from lift swing arms. Simple 10 minute installation.

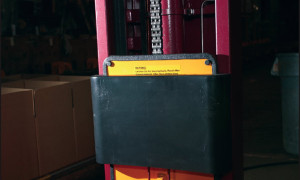

FOAM DOOR GUARD
Protects vehicle from dents and scratches if the door is accidentally opened into the columns2 inch thick soft foam will not damage doors, unlike other hard plastic door protectors.

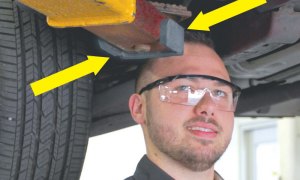

SWING ARM SAFETY HEAD GUARD
Learn more about the safety head guard Decreases workplace injuries by increasing worker safetyPrevents technicians from hurting or cutting their heads on hard steel swing armsEasily applied with a peel and stick applicationFits all lift brand swing arm sliders

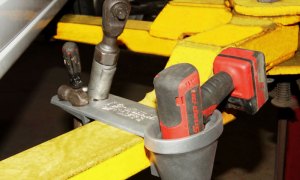

SWING ARM TOOL HOLDER
Fits all Mohawk 10,000 thru 18,000 lb. two post lifts Made for all brands and models of impact guns Tool side holds 45 pounds, cup side holds 100 lbs. of tools Slip on design means no installation Sold in pairs for left and right side of liftLearn more about the tool holder

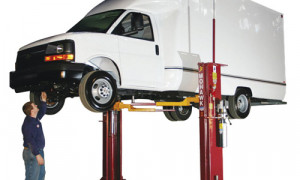

EXTENDED HEIGHT OVERHEAD LINES
Made of stainless steel that never needs replacingAdjustable to any ceiling height Hydraulic lines can be lowered for low ceiling shops

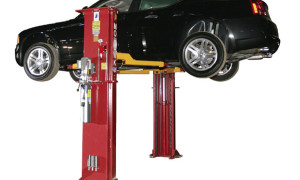

IN-FLOOR HYDRAULIC LINES
Eliminates overhead linesGreat for shops with low ceilingsMade from one-piece stainless steel, hydraulic lines that never corrodeFrees up overhead space for rolling shop cranes, tall vehicles, box vans or overhead shop equipment

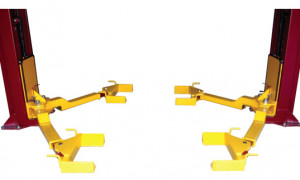

WHEEL ADAPTORS
Learn more about the WA-1 & WA-12 Tire Engaging Adaptors Allows for quick conversion from a frame contact lift, to a wheel engaging lift and back againTakes up less shop space than any 4-post lift

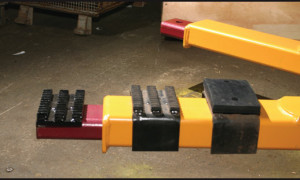

SWING-ARM LIFTING PAD
Attaches to swing arm and not sliderAvailable in rubber or steelGives access for special lifting requirementsOptional rubber protects underbody

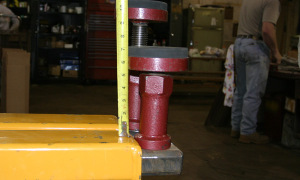

ADJUSTABLE SCREW PADS
Height adjustable screw type lift pads. Available for all 10,000 to 30,000 lb. capacity two-post lifts Choice of rubber or steel top pads. Gives additional 3+ inches of fine pad adjustmentSpecifications
Please visit the Architects Section for all specifications.
| Model: | System 1A |
|---|---|
| Capacity: | 10,000 lbs. |
| Motor Rating: | 2.0 HP/208-230V,Single-phase (3ø optional) |
| Synchronization: | Hydraulic fluid displacement using no chains, cables, or overhead obstructions |
| Arm Pad Height: | 3 1⁄2" |
| Lifting Height: | 6' under arm |
| Lift Pad Height @ Full Rise: | 6’ 3 1⁄2" |
| Lift Pad Height @ Full Rise w/Adaptors: | 7’ 1⁄2" |
| Overall Width (adjustable): | 11' 10" |
| Width Between Posts: | 10’ (adjustable) |
| Width Between Lifting Arms: | 8’ 10” (adjustable) |
| Column Height: | 8’ 7” |
| Overhead Hydraulic Line Height: | 12’ Standard (adjustable to accommodate any height ceiling or routed in-floor) |
| Weight: | 2,500 lbs. |
| Concrete Floor Requirements: | 4000 psi (27579.02 kPa) mix 61/2” |
| Anchoring System (included): | (16) 3⁄4"x5" bolts |
| Mechanical Safety Locks: | Automatic; all position starting at 5" |
| Hydraulic Safety Systems: | Automatic; all position |
| Swing Arm Restraints: | Automatic upon ascent |
| Cylinders: | 2 (1 per column) |
| Drive System: | #646 leaf chain routed over cylinder |
| Lifting Speed: | 50 seconds at full load (faster with lighter load) |
| Thrust & Guide Bearings: | (16) 4" diameter, (8 per carriage) double sealed, self-lubricating ball bearing rollers |
| 3” Frame Adaptors (stackable): | 4 included as standard equipment |
| 6” Frame Adaptors (stackable): | 4 included as standard equipment |
| Floor Access Between Posts: | Clear and unobstructed |
| Warranty: | 25 years structural, 10 year mechanical, plus limited lifetime cylinder seal warranty |
