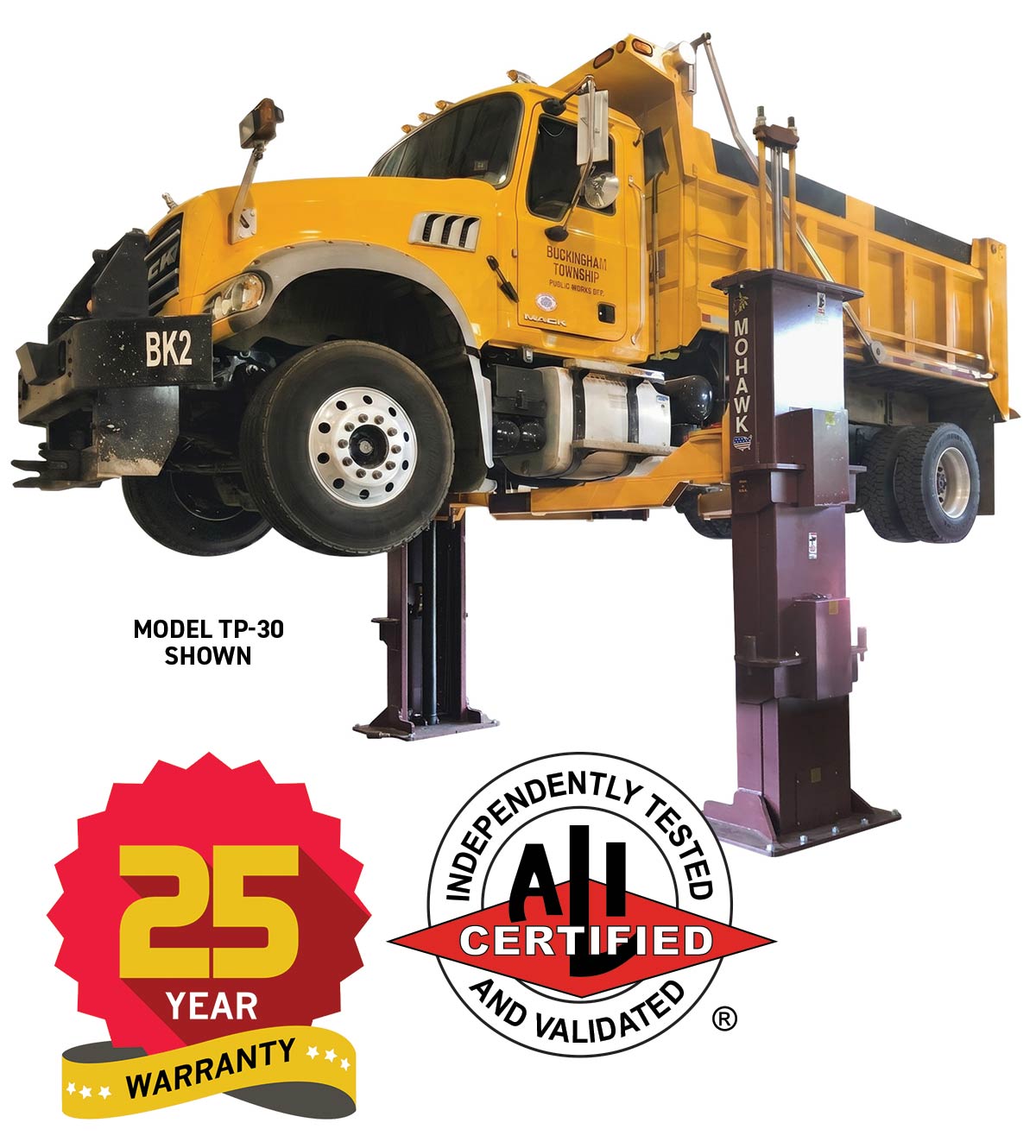

TP-26/TP-30: 2 Post Truck Lifts
Heavy-Duty Lifts for Heavy-Duty Vehicles
When it comes to strength, safety, and serviceability, the Mohawk TP-26 and TP-30 two-post lifts stand in a league of their own. Designed to handle vehicles up to 30,000 lbs., these industry-leading lifts are engineered for reliability, long-term performance, and shop efficiency. Whether you’re servicing medium-duty fleet trucks or full-size utility vehicles, Mohawk’s rugged lift design delivers unmatched stability and access
Product Details
Precision Engineering and American-Made Strength
Crafted from 7″ wide by 1″ thick forklift mast channel steel—not formed sheet metal—the TP-26 and TP-30 deliver the kind of durability that lasts for decades. Each lift is surface-mounted, eliminating the need for in-ground installation, tanks, or disruptive excavation. This not only simplifies setup but makes maintenance more accessible.
The wide 48″ base offers superior stability, while the twin-post design provides full under-vehicle access. This allows technicians to perform frame work, engine repairs, brake jobs, and tire service with ease.
The TP-26 and TP-30 come standard with 3-stage arms that accommodate a wide range of wheelbases and lifting points, from mid-size trucks to heavy-duty utility vehicles. Included are 5”, 7.5”, and 10” stackable truck adapters to reach frame rails, clear toolboxes, or navigate around fuel tanks with ease.
Minimal Maintenance, Maximum Uptime

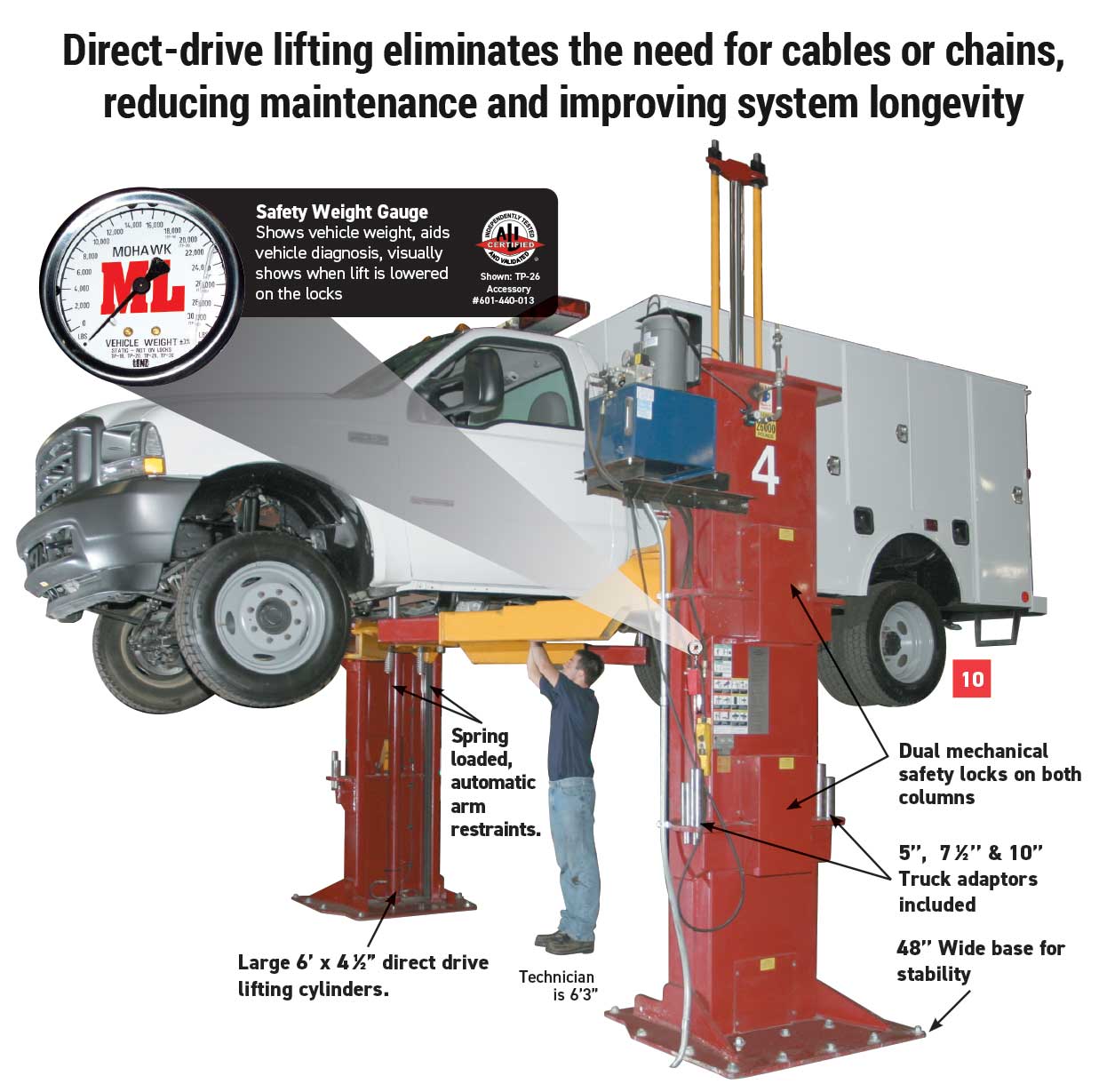

Mohawk lifts use direct-drive lifting rods—no cables, chains, or pulleys to wear out. Each carriage glides on self-lubricating, double-sealed steel ball bearing rollers for a lifetime of low-friction, maintenance-free use. No greasing. No plastic slide blocks. Just smooth, dependable performance.
Finished with durable hammertone paint and backed by Mohawk’s industry-best warranty, the TP-26 and TP-30 are built to outperform and outlast. Whether you’re upgrading your facility or outfitting a new shop, this lift series is the ultimate investment in long-term capability.
Certified Safety, Smart Operation
Safety is at the core of every Mohawk design. Both the TP-26 and TP-30 are ALI Certified to meet OSHA and ANSI/ALI ALCTV-2006 standards, ensuring a safe working environment for your team. Each lift includes:
-
12-position mechanical safety locks made from 1.5” thick steel plates, engaging every 6 inches from 5″ up to the full lifting height of 6’7″.
-
Patented hydraulic locking system with velocity fuses and pressure-compensated flow control for added protection.
-
Air-actuated mechanical lock release with automatic re-engagement for hands-free, secure lowering.
-
Hand-held pendant control allows technicians to raise or lower the lift safely and conveniently.
The Industry’s Best Warranty—Guaranteed
Backed by the best warranty in the business, the TP-26 & TP-30 includes:
- 25-year structural warranty
- 10-year mechanical warranty
- Limited lifetime hydraulic cylinder warranty
No other lift manufacturer matches Mohawk’s confidence—or commitment—to quality and customer support.
Featured Images
View More Images of This Lift on the Mohawk Lifts PR Site

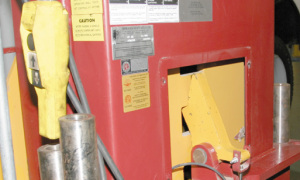

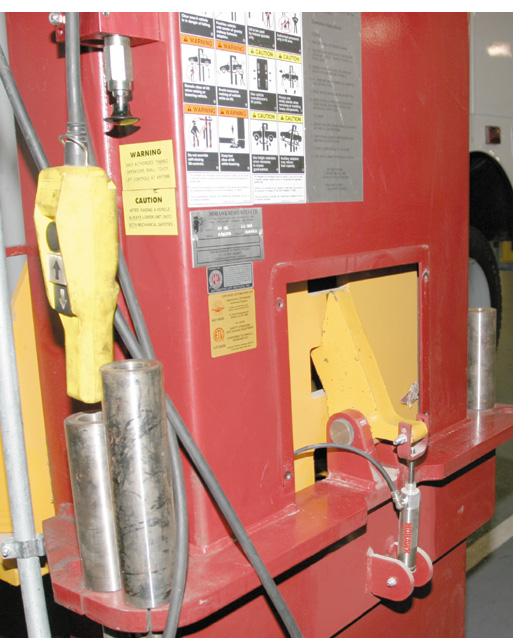

Safety Systems
Mohawk’s all position mechanical and hydraulic safety systems lock the vehicles at ALL working heights. Mohawk safeties consist of 1 1⁄2” plate steel locks engaging into the slotted carriage lock racks every 6”.

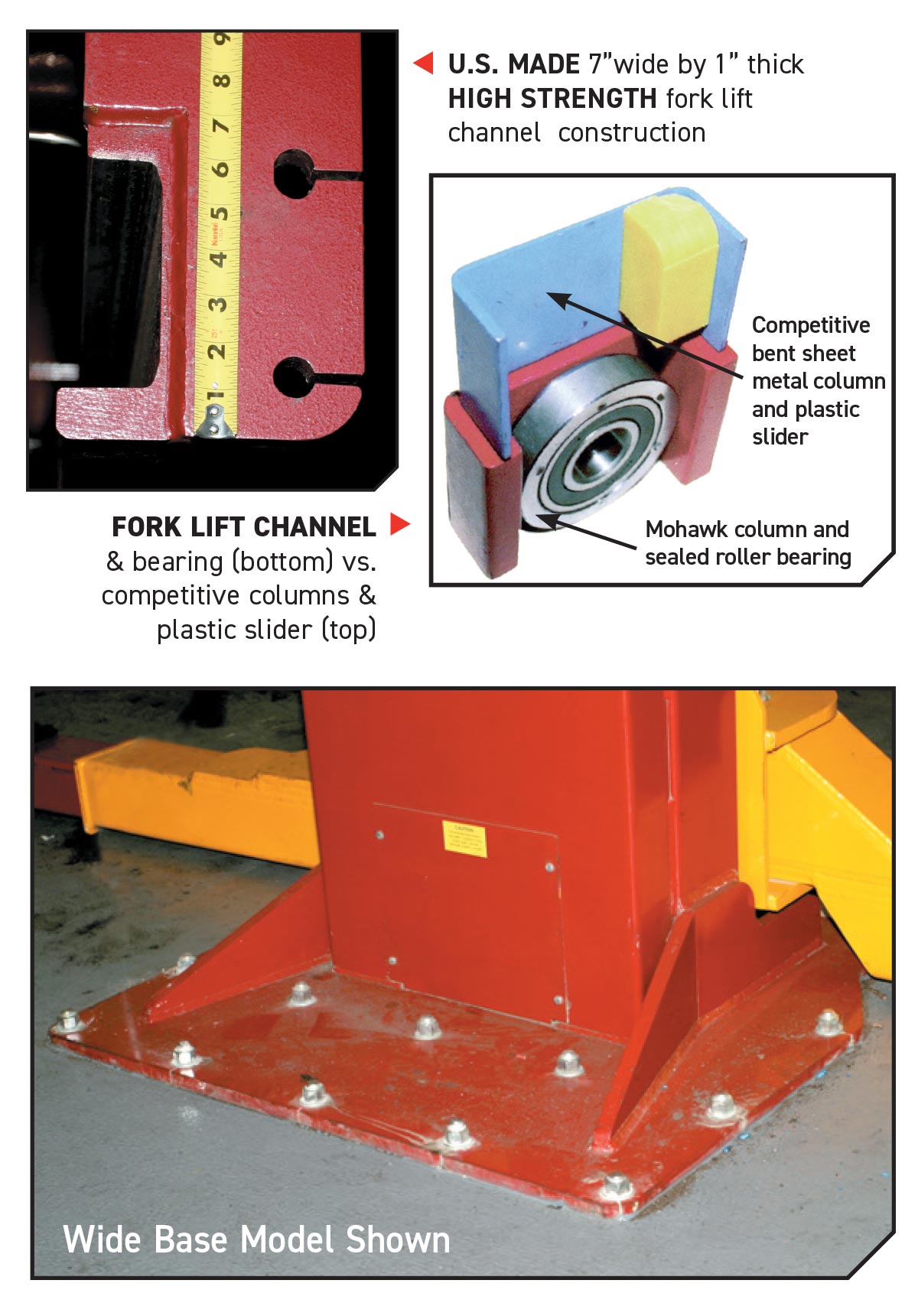

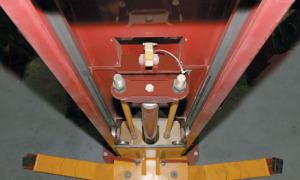

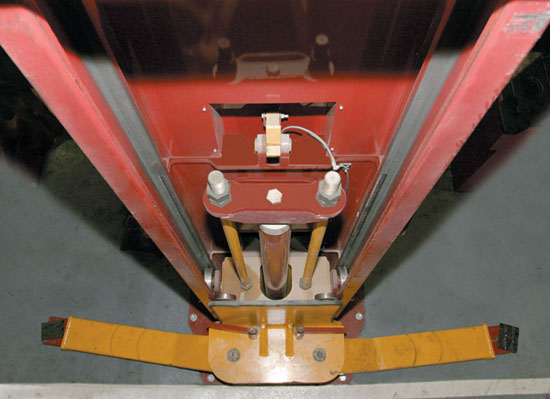

High Strength Columns

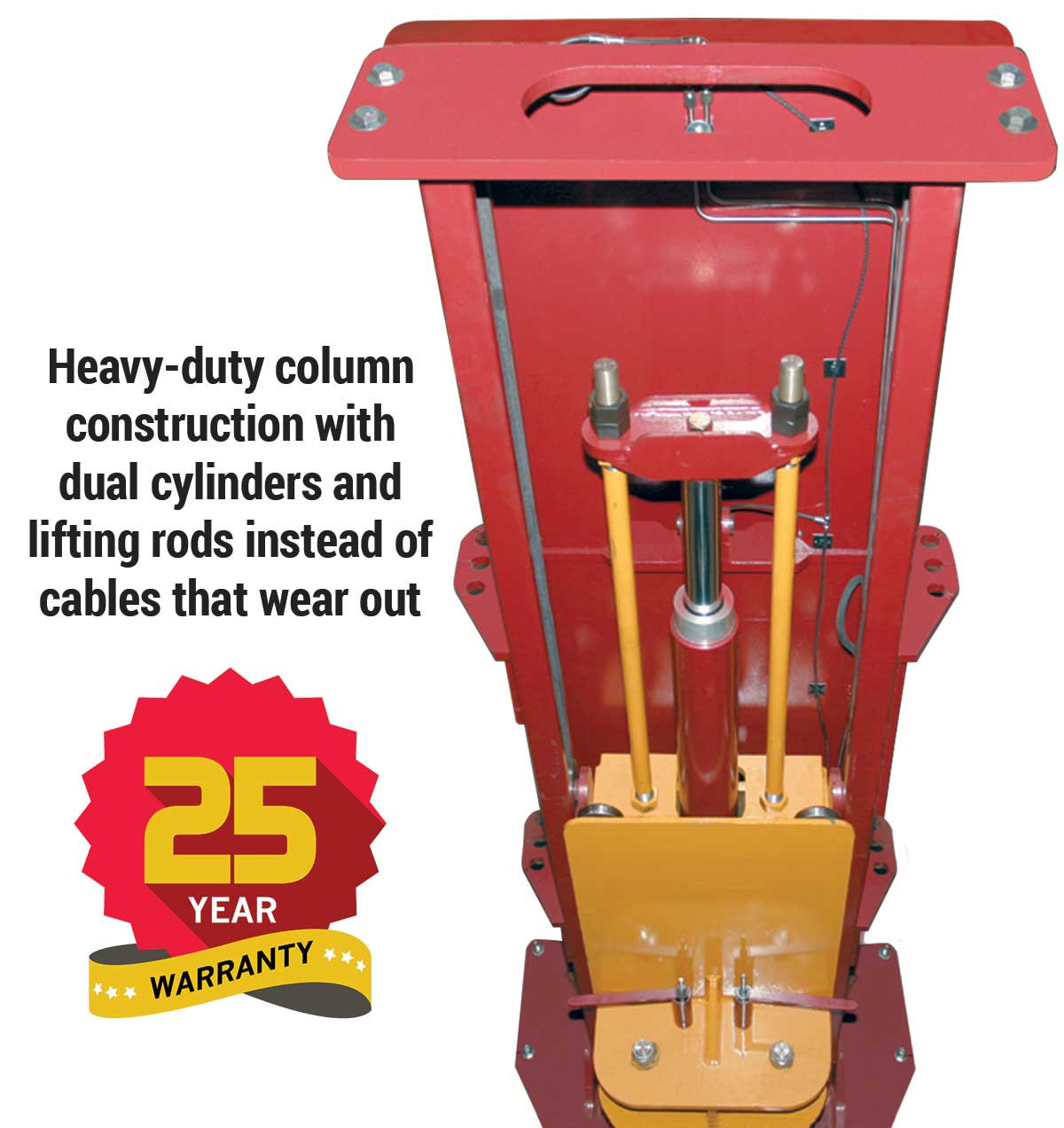

Mohawk columns are constructed of 1” thick, HIGH STRENGTH fork lift mast channels, using 24 double sealed, self lubricating ball bearing rollers to smoothly raise the lift, using large 4 1/2” cylinders for a lifetime of trouble free service.

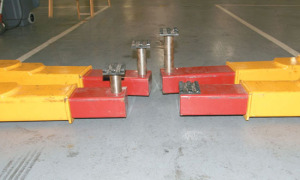

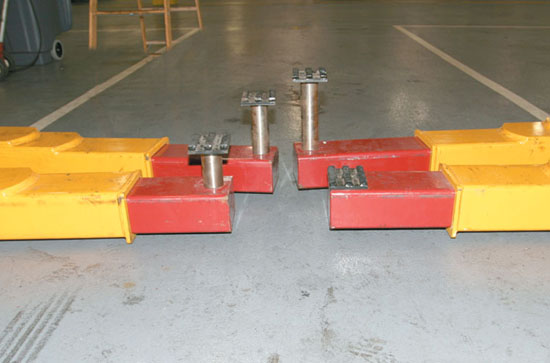

Stackable Truck Adaptors
Mohawk stackable truck adaptors are included for access around gas tanks and tool boxes to reach the vehicle frame.

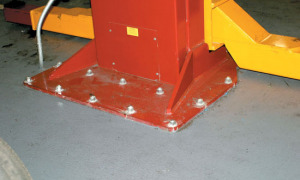

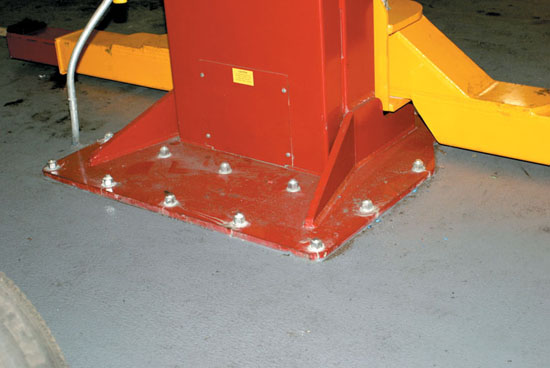

Baseplate
Mohawk’s large and stable footprint measures 48” wide x 30” (or 42”) deep and is made of 1” thick plate. Mohawk’s baseplate gives stability to the lift, while distributing the load to the shop floor. The TP-26/TP-30 requires 12” of concrete or optional footprint (shown) for shops with only 8” floors.

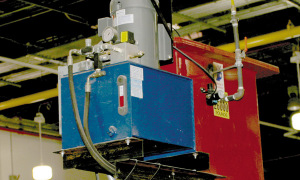

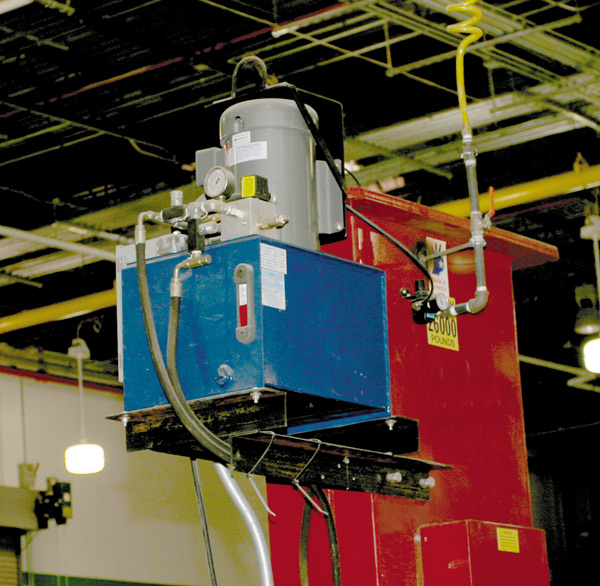

Three Phase Power Unit
5 HP 3 phase power unit delivers fluid equally to twin hydraulic cylinders for quick and smooth lifting.

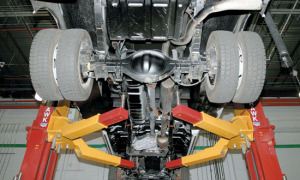

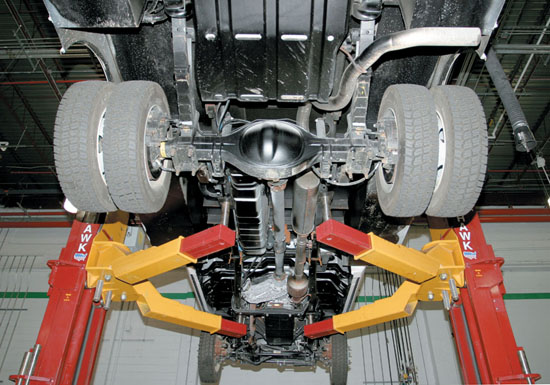

Under Vehicle Access
Mohawk’s TP-26, TP-30 gives FULL under vehicle access for all repairs, yet takes up minimal bay space, while leaving the wheels hanging free for tire, brake or any other necessary repairs.Options & Accessories

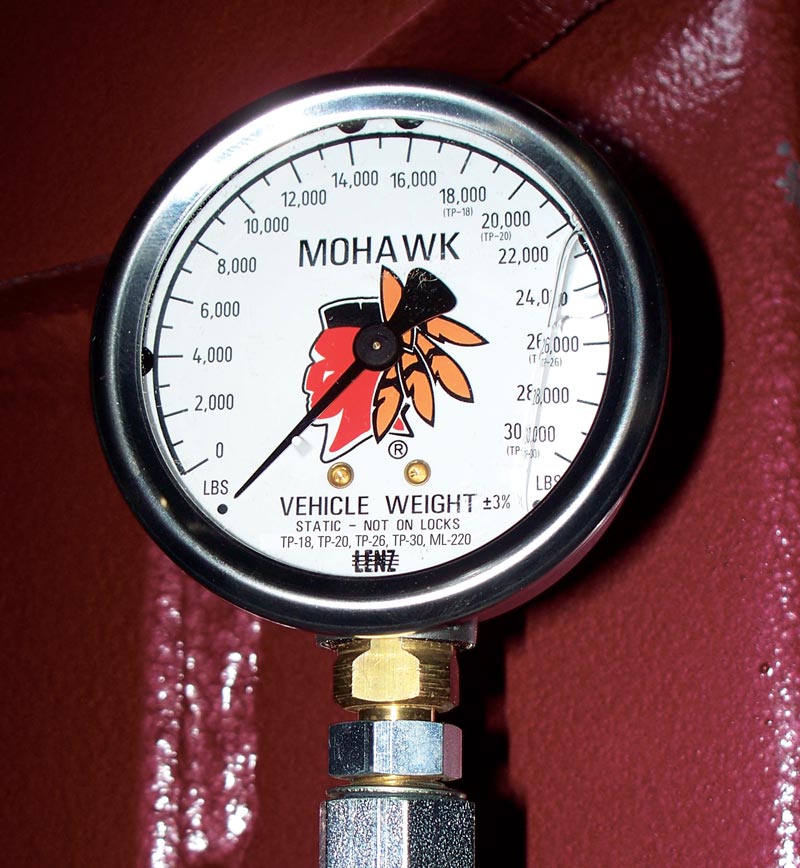

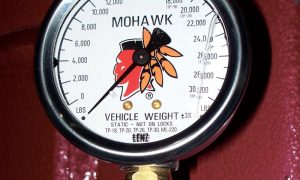

SAFETY WEIGHT GAUGE
Aides in vehicle diagnosis by measuring weight within 3% accuracyInstalled directly into the hydraulic systemEasy to read gaugeAs a diagnostic tool, the weight gauge will help you sell heavy duty brake parts, shocks, and tiresAvailable for all Mohawk two-post liftsGauge allows techs to know the lift has been lowered and is locked on the mechanical locksALI/ETL certifiedLearn more about the weight gauge.

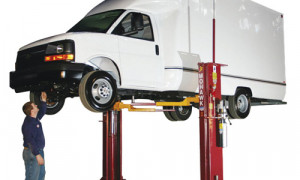

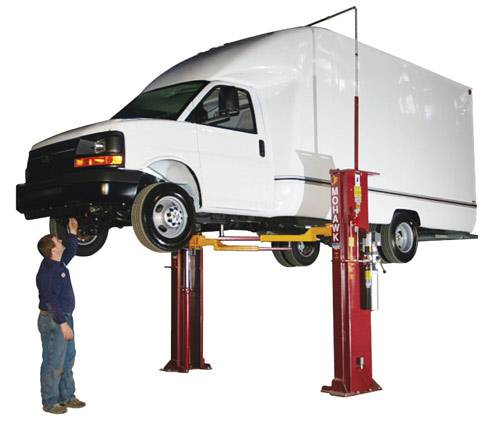

EXTENDED HEIGHT OVERHEAD LINES
Made of stainless steel that never needs replacingAdjustable to any ceiling height Hydraulic lines can be lowered for low ceiling shops* System I 10,000lb Lift Shown

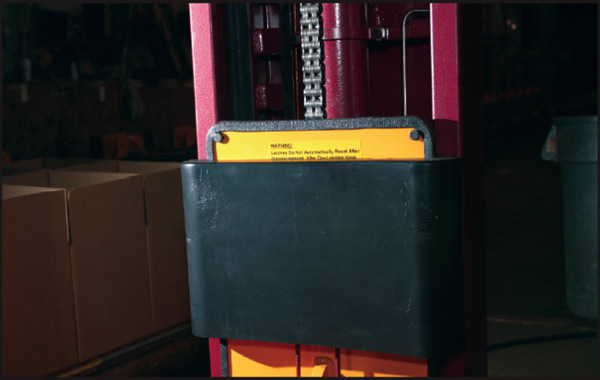

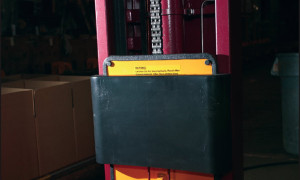

FOAM DOOR GUARD
Protects vehicle from dents and scratches if the door is accidentally opened into the columns2" thick soft foam won't damage doors (unlike other hard plastic door protectors)

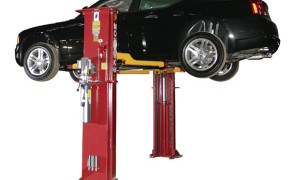

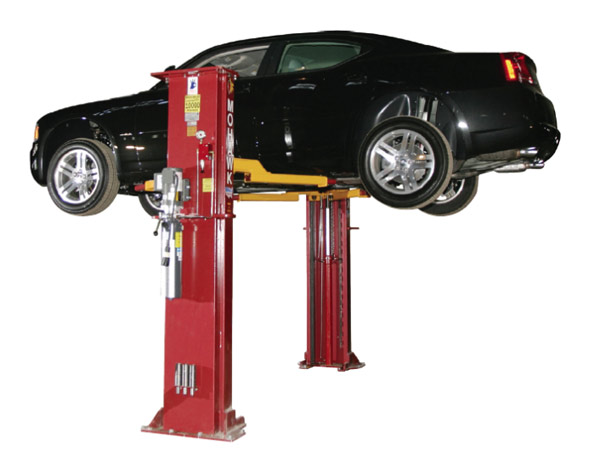

IN-FLOOR HYDRAULIC LINES
Eliminates overhead linesGreat for shops with low ceilingsMade from one-piece stainless steel, hydraulic lines that never corrodeFrees up overhead space for rolling shop cranes, tall vehicles, box vans or overhead shop equipment* System I 10,000lb Lift Shown

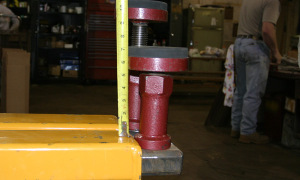

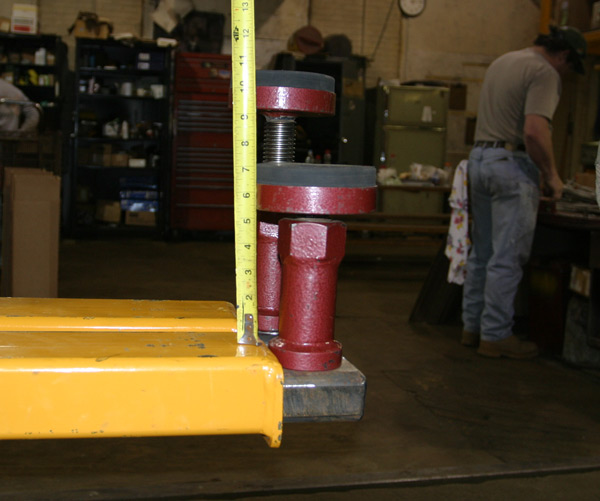

ADJUSTABLE SCREW PADS
Height adjustable screw type lift pads. Available for all 10,000 to 30,000 lb. capacity two-post lifts Choice of rubber or steel top pads. Gives additional 3+ inches of fine pad adjustment

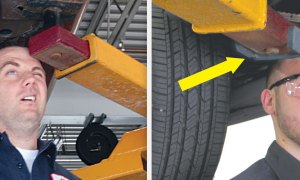

SWING ARM SAFETY HEAD GUARD
Decreases workplace injuries by increasing worker safety Prevents technicians from hurting or cutting their heads on hard steel swing arms Easily applied with a peel and stick application Fits all lift brand swing arm slidersSpecifications
Please visit the Architects Section for all specifications.
| Model: | TP-26/TP-30 WB |
|---|---|
| Capacity: | 26,000 lbs. / 30,000 lbs. |
| Motor Rating: | 5 HP 208-230v or 440-480v 3ø |
| Synchronization: | Hydraulic fluid displacement using no chains, cables, or overhead obstructions |
| Arm Pad Height: | 7” |
| Lifting Height: | 6' under arm |
| Arm Height @ Full Rise: | 6’ 7” |
| Lift Pad Height @ Full Rise w/Adaptors: | 7’ 5” |
| Overall Width (adjustable): | 15' (wider base model 17’) |
| Width Between Posts: | 12’ |
| Width Between Carriage: | 9’ 9” |
| Column Height: | 11' |
| Overhead Hydraulic Line Height: | 16’ Standard (adjustable to accommodate any height ceiling or routed in-floor) |
| Weight: | 8,800 lbs. / 9,300 lbs. |
| Concrete Floor Requirements: | 4000 psi (27579.02 kPa) |
| Wide Base: | TP-26/30 WB: 8” of 4000 psi concrete |
| Standard Base: | TP-26/30: 12” of 4000 psi concrete |
| Anchoring System (included): | 12” floor: (18) 1” x 10” Wej-it bolts, 8” floor: (28) 1” x 8” Wej-it bolts |
| Mechanical Safety Locks: | Multi-position, interlocked redundant safety systems |
| Hydraulic Safety Systems: | Automatic; all position |
| Swing Arm Restraints: | Automatic upon ascent |
| Cylinders: | 2 (1 per column) |
| Drive System: | #BL-848 leaf chain routed over cylinder |
| Lifting Speed: | 135 seconds |
| Carriage Bearings: | (16) 5” (12.7 cm) diameter (8 per carriage) Double sealed self lubricating |
| Side Load Bearings: | (8) 5” (12.7 cm) diameter (4 per Carriage) Double sealed self lubricating |
| 5” Frame Adaptors (stackable): | 4 included as standard equipment |
| 7 1/2” Frame Adaptors (stackable): | 4 included as standard equipment |
| 10” Frame Adaptors (stackable): | 4 included as standard equipment |
| Floor Access Between Posts: | Clear and unobstructed |
| Warranty: | 25 years structural, 10 year mechanical, plus limited lifetime cylinder seal warranty |
