Model A7: Asymmetric 2 Post Automotive Lift
Rugged. Reliable. Built to Last.
The Mohawk A-7 Two Post Lift is a heavy-duty, American-made lifting solution engineered for professional automotive shops, fleet garages, and performance vehicle facilities. With a 7,000 lb. lifting capacity, it combines heavy duty construction, low-profile arms, and industry-leading safety systems — making it ideal for everything from low-clearance EVs to light trucks and SUVs.
Product Details
Heavy-Duty Construction for Lifetime Performance
Mohawk’s A-7 stands apart with columns made from ¾” thick forklift mast steel — delivering unmatched durability, strength, and resistance to flex or fatigue. Unlike lifts built from formed sheet metal, this one is built to take decades of use in high-demand environments.
Each carriage rides on eight double-sealed, self-lubricating steel ball bearing rollers, providing ultra-smooth, maintenance-free operation — no plastic slide blocks, no greasing, no nonsense. Combined with twin heavy-duty hydraulic cylinders, the A-7 lifts evenly, reliably, and safely every time.
Patented Hydraulic Synchronization — No Chains, No Cables
Mohawk’s patented hydraulic synchronization system replaces the need for restrictive overhead cable covers, equalizer chains, or floor plates. Hydraulic fluid is transferred seamlessly between the two lift cylinders via rugged stainless steel lines — eliminating stretch, wear, and costly repairs associated with traditional cable or screw lifts.
The A-7’s heavy-duty #646 leaf chains and twin 4″ cylinders provide rock-solid lifting with minimal maintenance and no fray or slack over time.

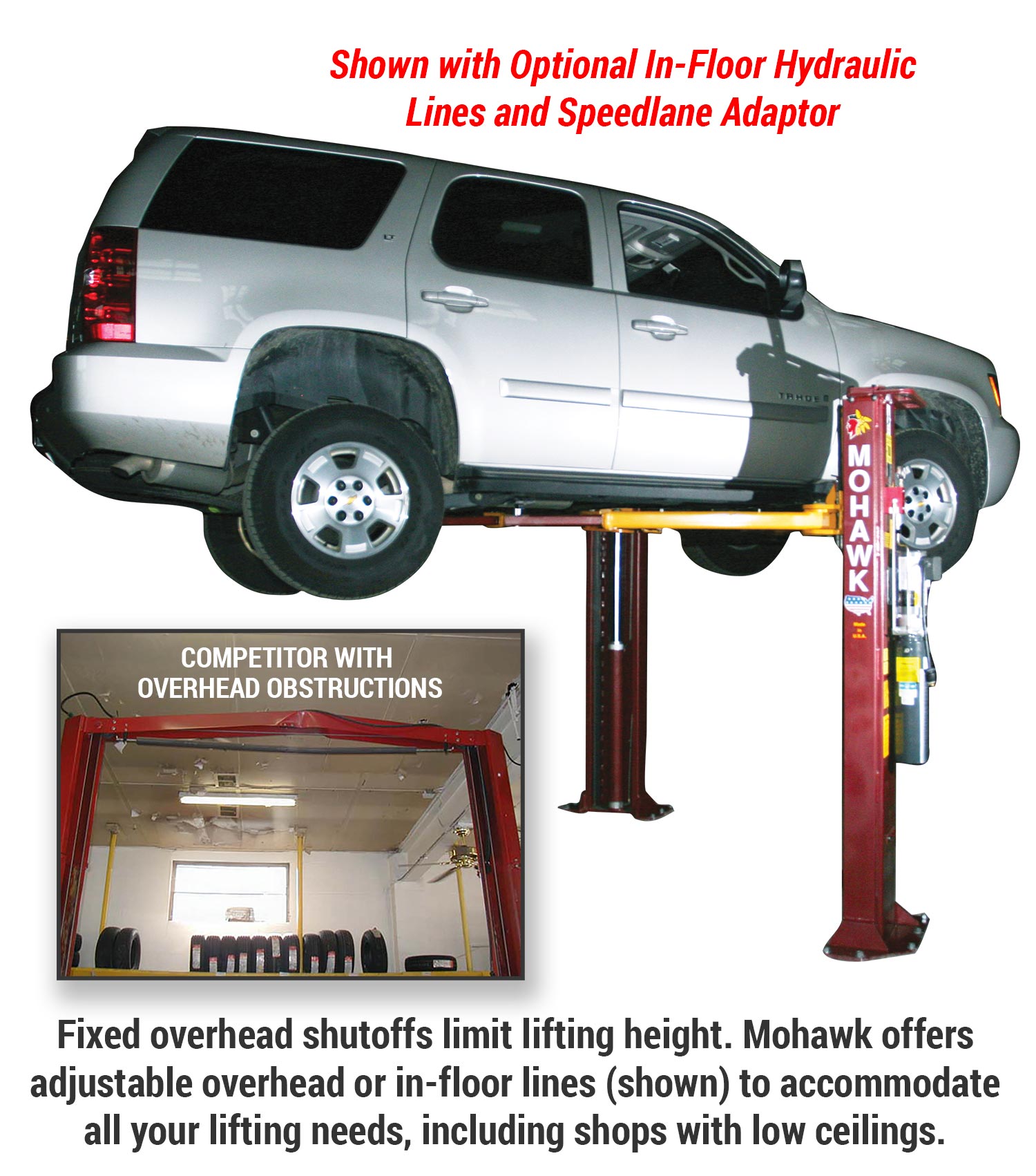

Overhead stainless steel hydraulic lines come adjustable for any ceiling height or can be routed in-floor — giving you total flexibility to accommodate tall vans, tight shops, or clean shop layouts.
Safety-First, Always
When it comes to safety, Mohawk doesn’t cut corners. The A-7 is equipped with:
- All-position mechanical locks that engage every 3″ from just 5″ off the ground to full height.
- Automatic swing arm restraints that lock into place upon lifting and release only once the vehicle is fully lowered.
- Durable stainless steel hydraulic lines with pressure-compensated flow control and velocity fuse valving for emergency protection.
- Designed with low-profile 3½” swing arms, the A-7 easily reaches under sports cars, EVs, and other low-clearance vehicles.
The Best Warranty in the Lift Industry
Mohawk backs every A-7 lift with the most comprehensive warranty on the market:
- 25 years structural
- 10 years mechanical
- Limited lifetime cylinder warranty
This lift is built to last a lifetime — and guaranteed to do so.
Featured Images
View More Images of This Lift on the Mohawk Lifts PR Site

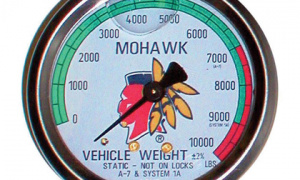

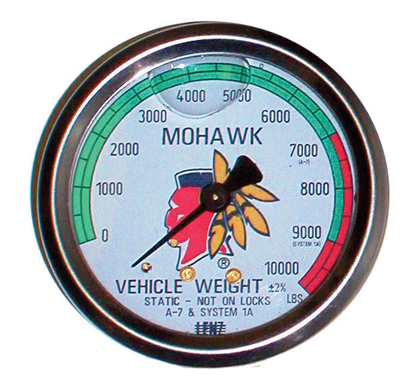

Safety Weight Gauge
Use to determine vehicle weight & aid vehicle diagnosis. Winner of Top 20 Tools. <a href="%5C">Learn more about the weight gauge</a>.

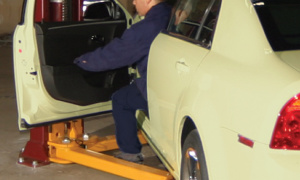

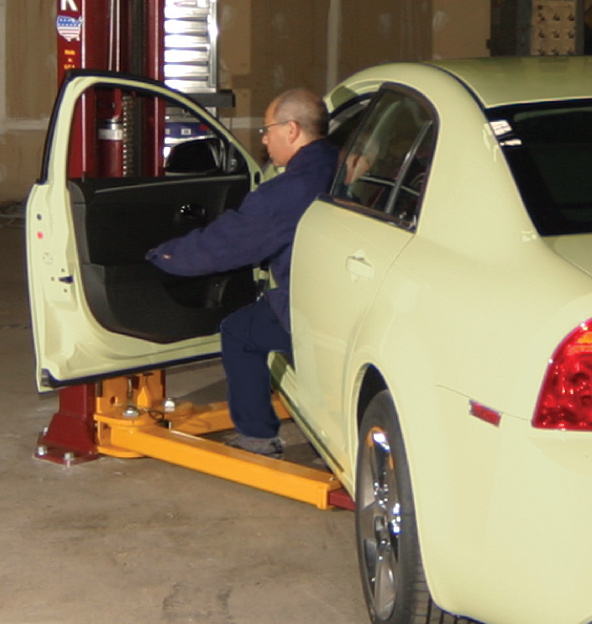

Maximum Clearance
Open any door on any vehicle for maximum clearance when switching from under-car to under-dash service.

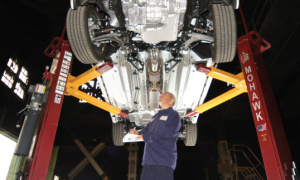

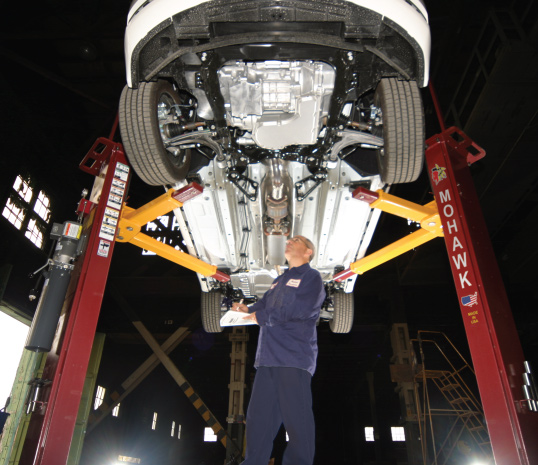

Unrestricted Under Vehicle Access
Rotated columns with asymmetric lift arms will lift cars, trucks or vans with maximum safety and stability. 3” and 6” stacking adaptors included means no interference between lift arms and under vehicle access.

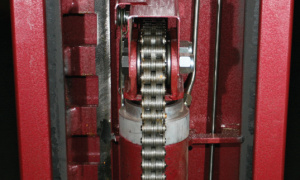

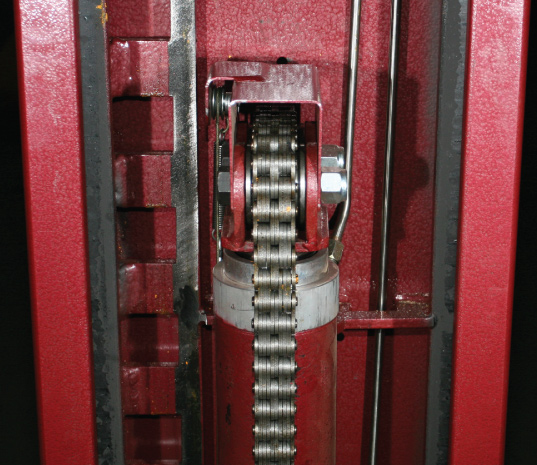

Heavy Duty Dual Cylinders
Heavy duty post design using dual cylinders with 1-1/2” #646 leaf chain provides adjustment free maintenance for the life of the lift.

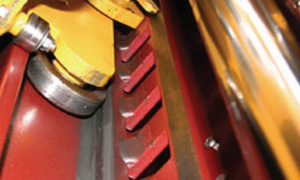

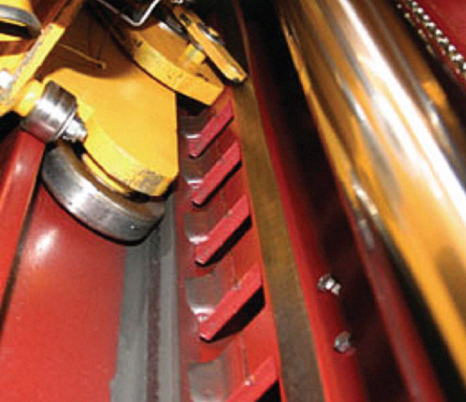

All-Position Safety Locks
All-position twin safeties combine positive mechanical locks backed by a hydraulic safety system for absolute security at every height.

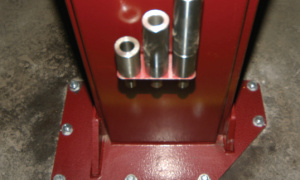

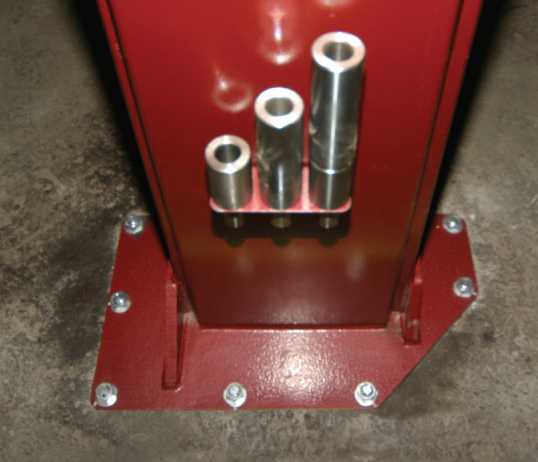

Stable Footprint
Mohawk’s large and stable footprint measures 26.5” wide and is made of 3/4” thick plate. Mohawk’s base with 7 lag bolts gives stability to the lift, while distributing the load to the shop floor.

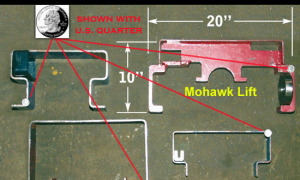

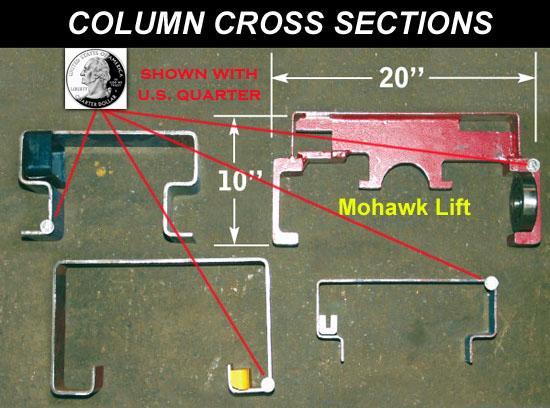

Competitor Comparison

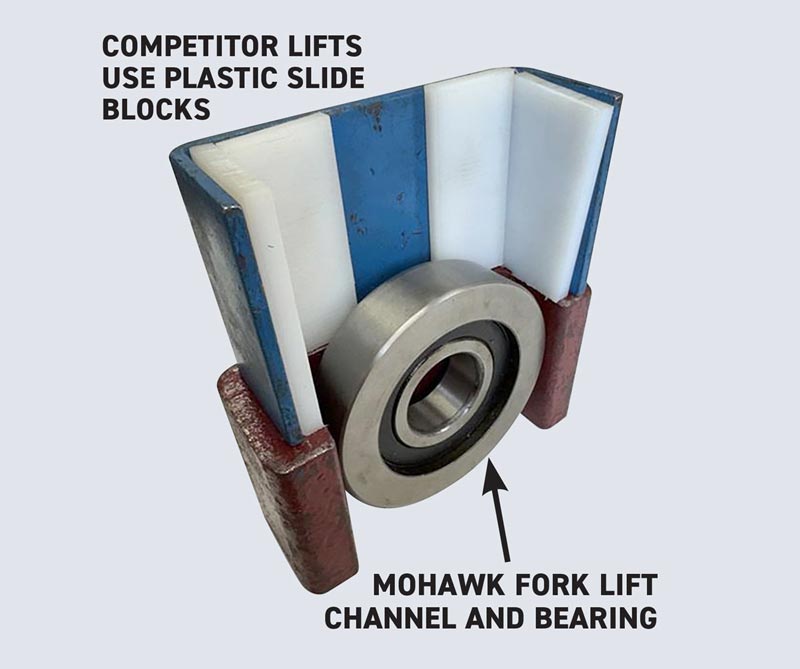

Mohawk fork lift channel & bearing (top right) VS. 3 different sheet metal columns which use plastic slides. Like your fork lifts mast, Mohawk lifts <strong>DO NOT WEAR OUT!</strong>

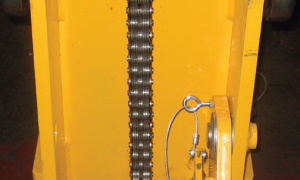

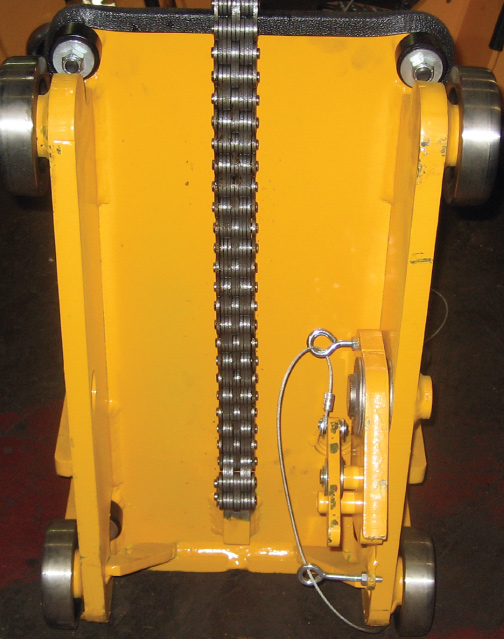

Steel Ball Bearing Rollers
Each carriage rolls on steel ball bearing rollers for a lifetime of trouble free service. (Not plastic slides.)

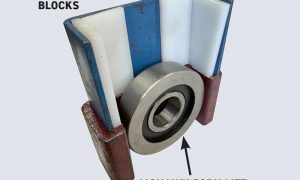

Bearing vs. Plastic
FORK LIFT CHANNEL & bearing (bottom) vs. competitive columns & plastic slider (top).

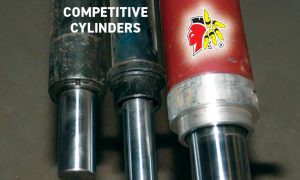

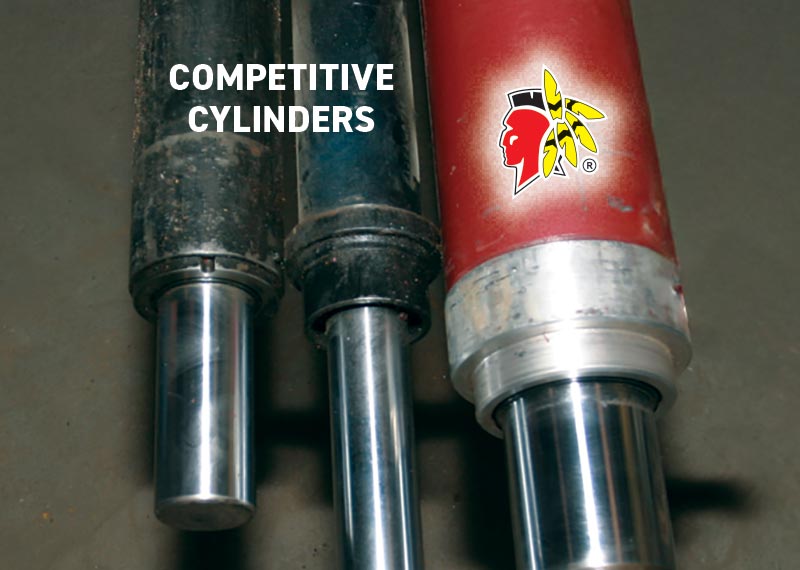

4" Cylinders
LARGE 4" CYLINDERS equal longer seal life and lower operating pressures vs. competitive cylinders.

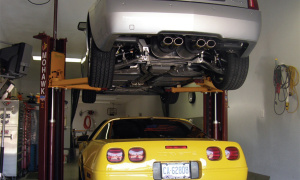

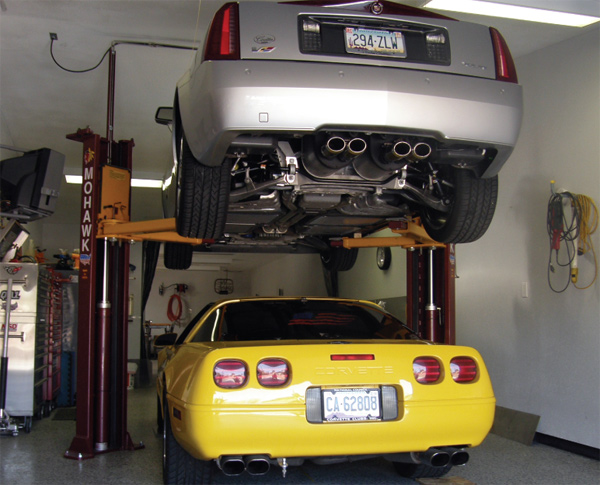

Low Ceiling Capable
Mohawk’s A-7 shown in home shop with low ceiling.

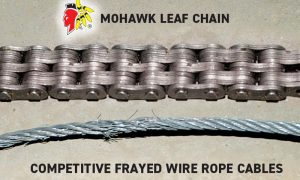

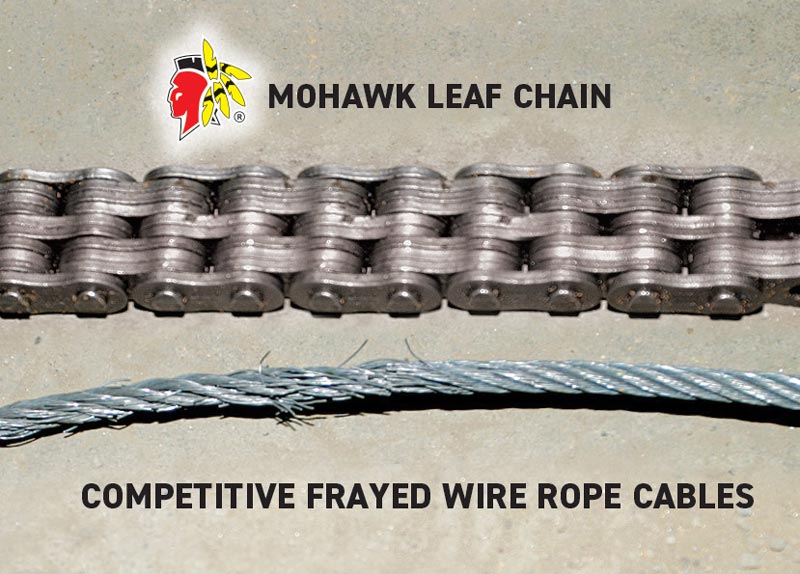

High Strength Chain
#646 HIGH STRENGTH leaf chain compared to the competitive cables which fray.Options & Accessories
SPEEDLANE DRIVE-ON ADAPTOR
<a href="/automotive-lifts/specialty-items/speedlane-two-post-drive-on-adapter/">Learn more about the Speedlane Drive-On Adapter</a> Turns your two-post lift into a quick drive-on liftNo time wasted positioning swing arms
SAFETY WEIGHT GAUGE
<a href="/automotive-lifts/specialty-items/lift-weight-gauge/">Learn more about the weight gauge</a> Aides in vehicle diagnosis by measuring weight within 5% accuracyInstalled directly into the hydraulic systemEasy to read gaugeAs a diagnostic tool, the weight gauge will help you sell heavy duty brake parts, shocks, and tiresAvailable for all Mohawk two-post liftsGauge allows techs to know the lift has been lowered and is locked
DUAL TROUGH TURF KIT
<a href="/automotive-lifts/2-post-lifts/turf-maintenance-equipment-auto-service-lift/">Learn more about the Turf Maintenance Adapter</a> Turns vehicle lift into a turf maintenance liftAvailable for 10,000 to 18,000 lb. capacity two-post liftsFull under-vehicle access and safety,with 6 foot working heightOffers maximum flexibility to service cars, light trucks, turf equipment or golf cartsInstallation is a simple, quick, one-man jobTakes less valuable shop space than 4-post liftsQuickly converts to turf lift or back to arm engaging lift in minutes
BACKSAVER
Save your technicians from bending down to lift heavy tires. Allows hanging your tires from lift swing arms. Simple 10 minute installation.
FOAM DOOR GUARD
Protects vehicle from dents and scratches if the door is accidentally opened into the columns2 inch thick soft foam will not damage doors, unlike other hard plastic door protectors.
SWING ARM SAFETY HEAD GUARD
<a href="/automotive-lifts/specialty-items/2-post-automotive-lift-swing-arm-safety-head-guard/">Learn more about the safety head guard</a> Decreases workplace injuries by increasing worker safetyPrevents technicians from hurting or cutting their heads on hard steel swing armsEasily applied with a peel and stick applicationFits all lift brand swing arm sliders
SWING ARM TOOL HOLDER
Fits all Mohawk 10,000 thru 18,000 lb. two post lifts Made for all brands and models of impact guns Tool side holds 45 pounds, cup side holds 100 lbs. of tools Slip on design means no installation Sold in pairs for left and right side of lift<a href="https://mohawklifts.wpenginepowered.com/automotive-lifts/specialty-items/two-post-tool-holder/">Learn more about the tool holder</a>
EXTENDED HEIGHT OVERHEAD LINES
Made of stainless steel that never needs replacingAdjustable to any ceiling height Hydraulic lines can be lowered for low ceiling shops
IN-FLOOR HYDRAULIC LINES
Eliminates overhead linesGreat for shops with low ceilingsMade from one-piece stainless steel, hydraulic lines that never corrodeFrees up overhead space for rolling shop cranes, tall vehicles, box vans or overhead shop equipment
WHEEL ADAPTORS
<a href="/automotive-lifts/specialty-items/tire-engaging-adaptors/">Learn more about the WA-1 & WA-12 Tire Engaging Adaptors</a> Allows for quick conversion from a frame contact lift, to a wheel engaging lift and back againTakes up less shop space than any 4-post lift
SWING-ARM LIFTING PAD
Attaches to swing arm and not sliderAvailable in rubber or steelGives access for special lifting requirementsOptional rubber protects underbody
ADJUSTABLE SCREW PADS
Height adjustable screw type lift pads. Available for all 10,000 to 30,000 lb. capacity two-post lifts Choice of rubber or steel top pads. Gives additional 3+ inches of fine pad adjustmentSpecifications
Please visit the Architects Section for all specifications.
| Model: | A-7 |
|---|---|
| Capacity: | 7,000 lbs. |
| Motor Rating: | 2.0 HP/208-230V,Single-phase (3ø optional) |
| Synchronization: | Hydraulic fluid displacement using no chains, cables, or overhead obstructions |
| Arm Pad Height: | 4" |
| Lifting Height: | 6' under arm |
| Lift Pad Height @ Full Rise: | 6’ 4" |
| Lift Pad Height @ Full Rise w/Adaptors: | 7’ 1" |
| Overall Width (adjustable): | 11' 7" |
| Width Between Posts: | 7’ 7 1/8” to 8’ 1 1/8” |
| Width Between Lifting Arms: | 6’ 11 3/8” to 7’ 5 3/8” |
| Column Height: | 7’ 11 1/2” |
| Overhead Hydraulic Line Height: | 12’ Standard (adjustable to accommodate any height ceiling or routed in-floor) |
| Weight: | 2,000 lbs. |
| Concrete Floor Requirements: | 4000 psi (27579.02 kPa) mix 4 1/2” |
| Anchoring System (included): | (14) 3⁄4"x5" bolts |
| Mechanical Safety Locks: | Automatic; all position starting at 3" |
| Hydraulic Safety Systems: | Automatic; all position |
| Swing Arm Restraints: | Automatic upon ascent (starting at 4”) |
| Cylinders: | 2 (1 per column) |
| Drive System: | #646 leaf chain routed over cylinder |
| Lifting Speed: | 45 seconds at full load (faster with lighter load) |
| Steel Carriage Bearings: | 8 per carriage, double sealed, selflubricating |
| 3” Frame Adaptors (stackable): | 4 included as standard equipment |
| 6” Frame Adaptors (stackable): | 4 included as standard equipment |
| Floor Access Between Posts: | Clear and unobstructed |
| Warranty: | 25 years structural, 10 year mechanical, plus limited lifetime cylinder seal warranty |
