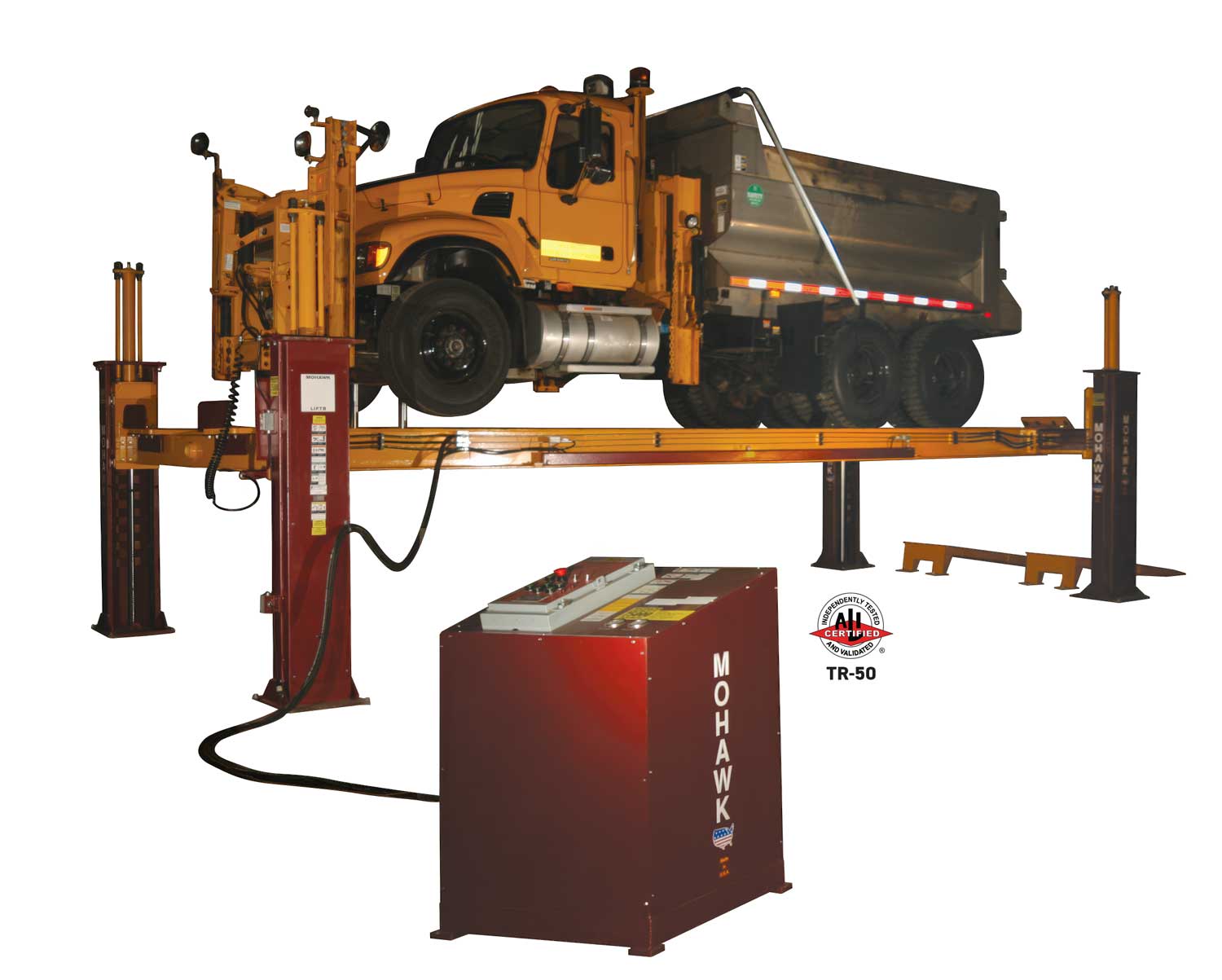

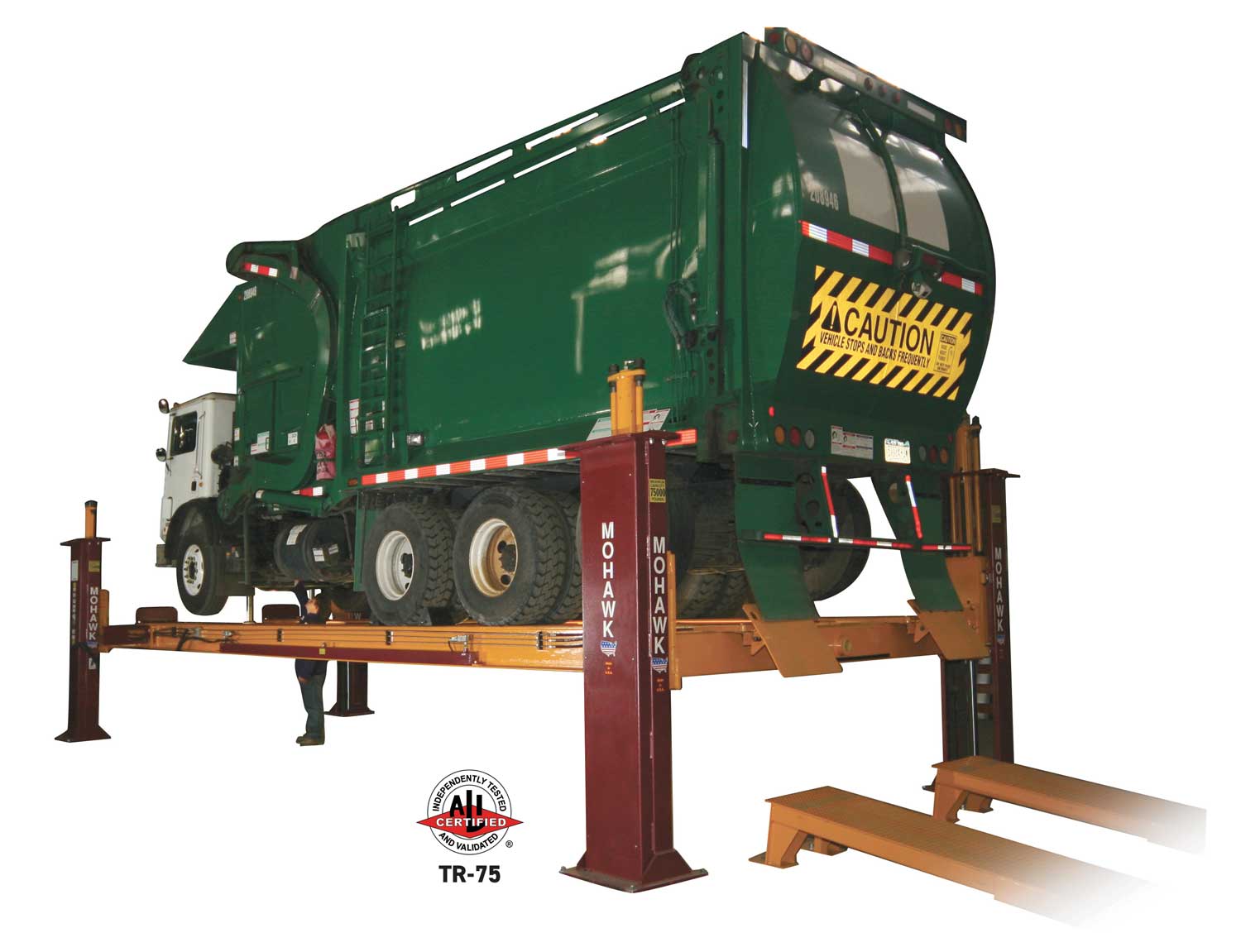

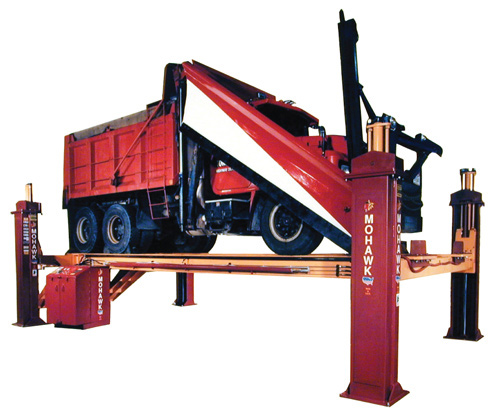

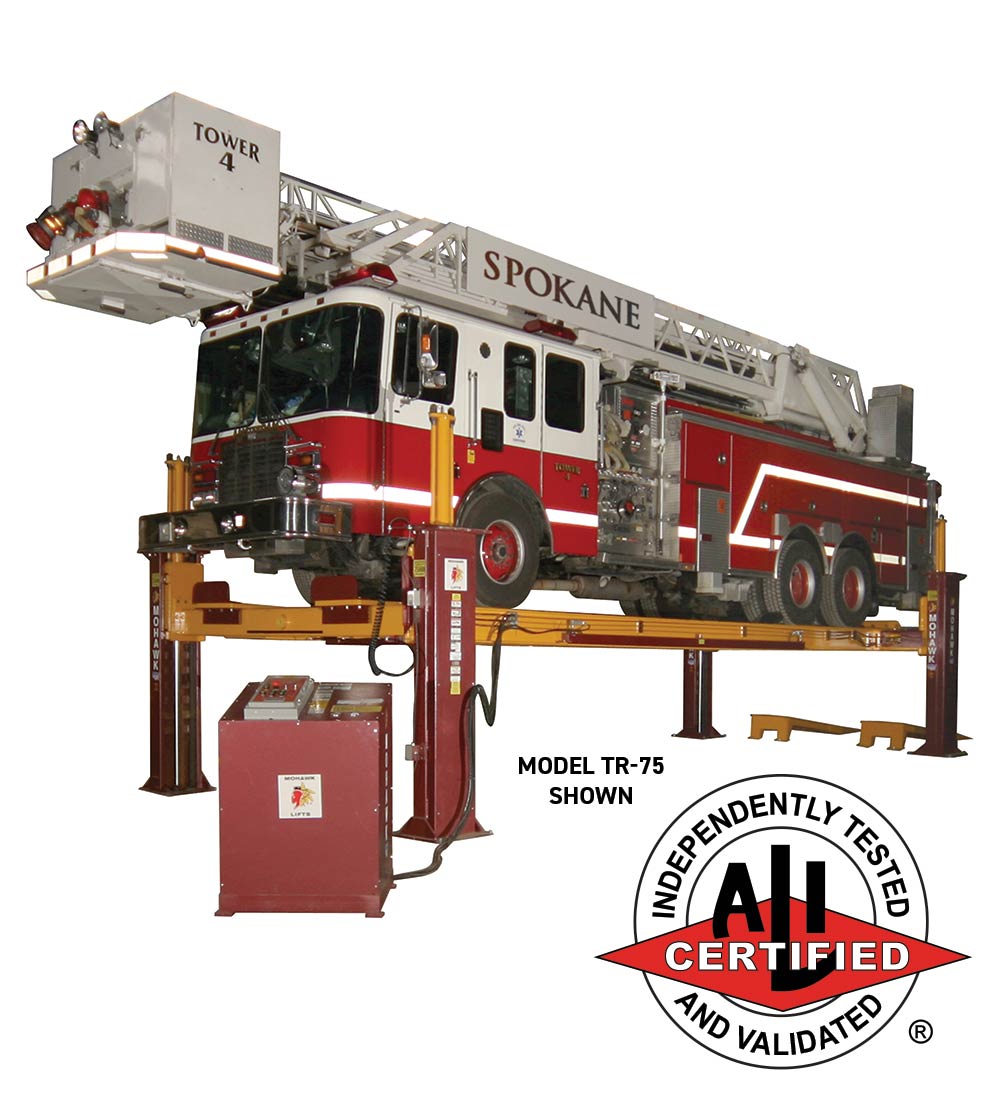

TR Series Drive-On Lifts
The Mohawk TR-35 through TR-80 four-post drive-on lifts are engineered to service the full spectrum of fleet and public-works vehicles—from passenger cars and vans to heavy equipment such as winged snow-plow trucks, loaders, and buses. Each model provides unmatched under-vehicle clearance for repairs and preventive maintenance, and can be equipped with optional rolling “wheels-free” jacks that lift the tires off the runways for complete wheel, brake, and axle service.
Product Details
Fast, Clear, and Environmentally Friendly
Mohawk’s above-ground, four-post design is built for speed and efficiency. Simply drive on and start work—no wheelbase adjustments required. Unlike in-ground lifts, the surface-mounted TR-Series installs quickly and avoids environmental concerns while offering a completely clear floor. Toolboxes, high-rise tire dollies, and shop equipment can move freely under and around the vehicle, giving technicians unobstructed access for every repair.
Versatile Runways and Heavy-Duty Construction
Runways are available in 24- or 32-inch widths with a full four feet of clear span between them, providing maximum undercarriage access and a 6′-2 ½″ lifting height for even the tallest mechanics. Adjustable runways fit any vehicle wheelbase, from passenger cars and utility trucks to RVs, school buses, and heavy dump trucks. The TR-Series is built from three parallel 12-inch wide-flange I-beams and uses direct-drive cylinders at each post—eliminating cables, reducing maintenance, and removing any “top rail” obstruction. Models are available in 20-, 25-, 30-, and 35-foot runway lengths, with custom sizes on request.
Superior Safety and Service Options
Safety is engineered into every TR-Series lift. Multi-position mechanical locks engage in all four posts, backed by redundant hydraulic safeties with pressure-compensated flow control and tamper-proof velocity fuses. A single-point lock release, mechanical side-to-side chain synchronization, and an automatic track leveler keep runways perfectly level even under heavy loads. Built-in front and rear wheel stops, automatic flip-up chocks, and double-sealed, self-lubricating ball-bearing rollers ensure smooth, reliable operation without plastic slide blocks. Optional equipment—such as rolling jacks, track lighting, air lines, oil drain pans, and 110-volt outlets—lets shops customize the lift to their workflow.
Featured Images
AUTOMOTIVE LIFT FEATURES

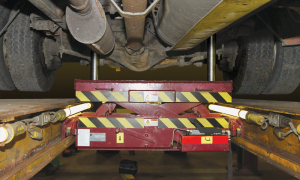

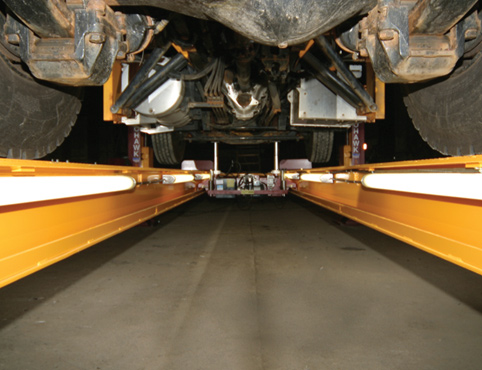

1. Under-Vehicle Access
Full under-vehicle access with no obstructions (Note: tires raised off of runways.)

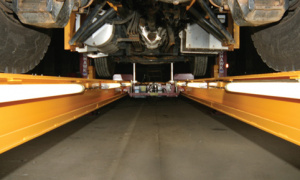

2. Optional Track Lighting
Optional shatterproof flourescent track lighting to brighten up the darkest vehicle undercarriages.

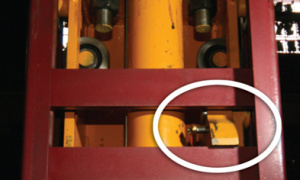

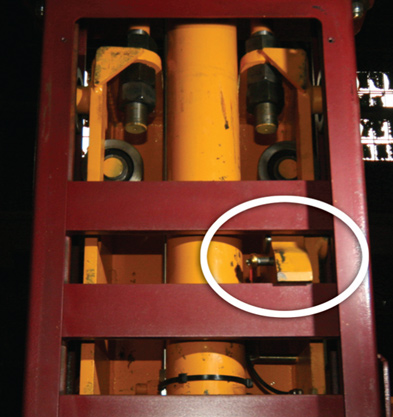

3. Safety Locks
Mohawk's all-position safety locks engage every 6" and continue to full lifting height.

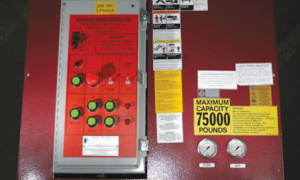

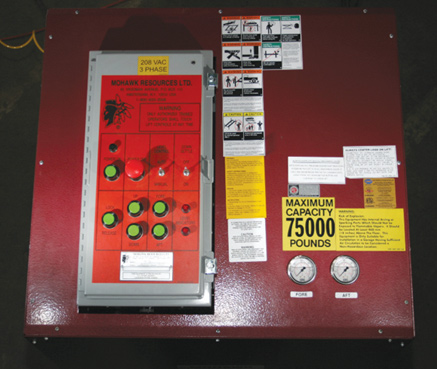

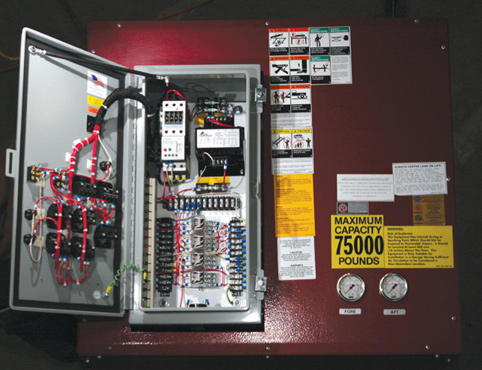

4. Simple Control Panel
TR control panel design features simple two handed operation for maximum safety with single point lock release.

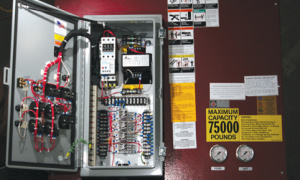

5. 10HP Unit
10 HP unit designed for long life, smooth operation and minimal maintenance. Uses modular manifold valving for simplicity.

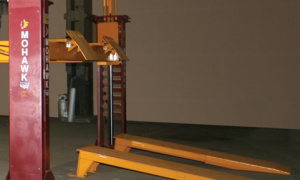

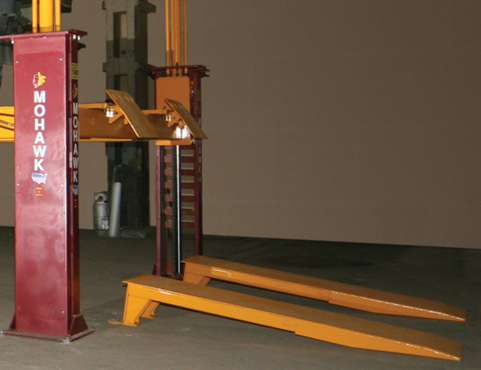

6. Approach Ramps
Shallow angle approach ramps are 24" wide for easy drive on with the ability to accommodate a wide variety of vehicles (including low floor busses.) Shorter/longer or moveable ramps upon request.

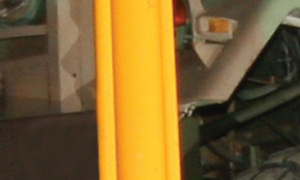

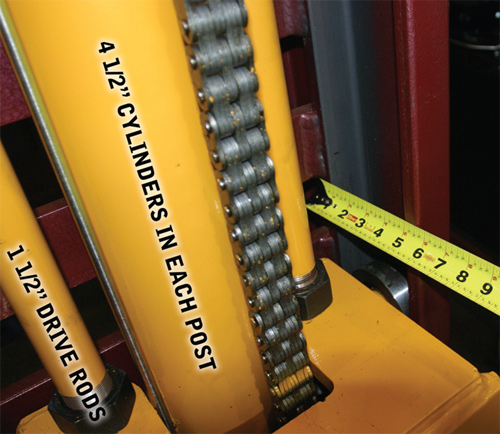

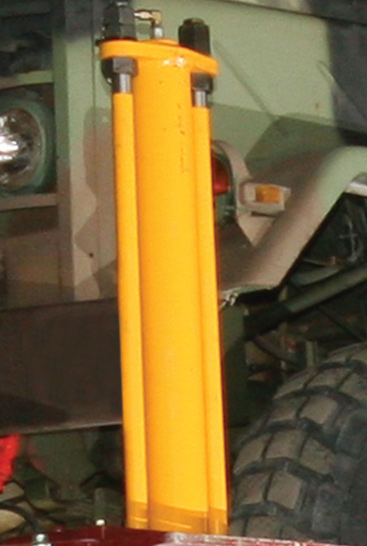

7. Direct Drive Cylinders
Built for the heavy duty lift user. Mohawk's 4 direct drive cylinders are engineered for a lifetime of heavy duty use.

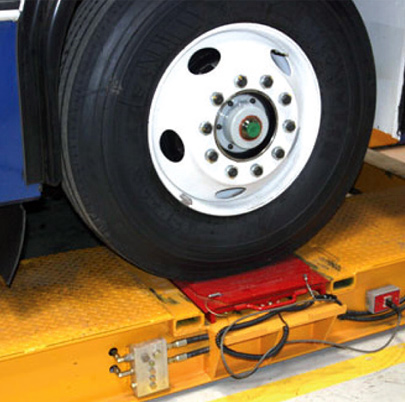

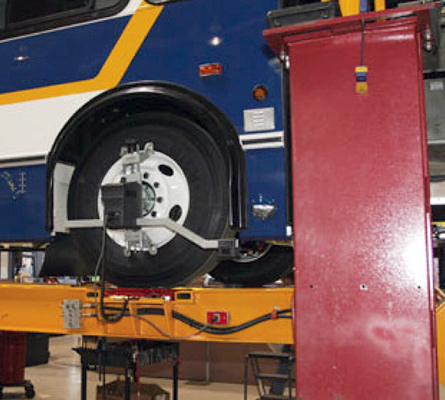

8. Alignment Compatible
ALIGNMENT COMPATIBLE. To verify alignment at any working height.

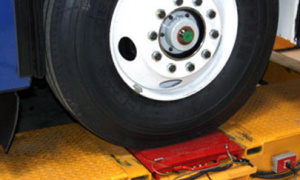

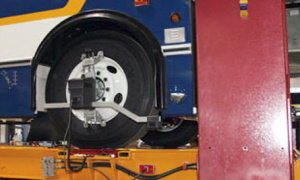

9. Alignment Compatible
ALIGNMENT COMPATIBLE. To verify alignment at any working height.

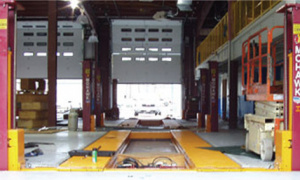

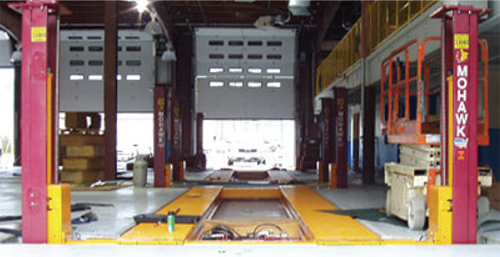

10. Flush Mount Capable
Mohawk Lifts can be installed as flush-mounted lifts, leaving runways level with shop floor.

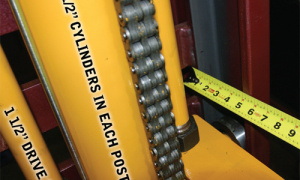

11. Fork Lift Mast Columns
Mohawk columns are made of 6" x 1" thick fork lift mast sections, with carriages riding on 4" sealed ball bearing rollers and raise via direct drive lifting rods.

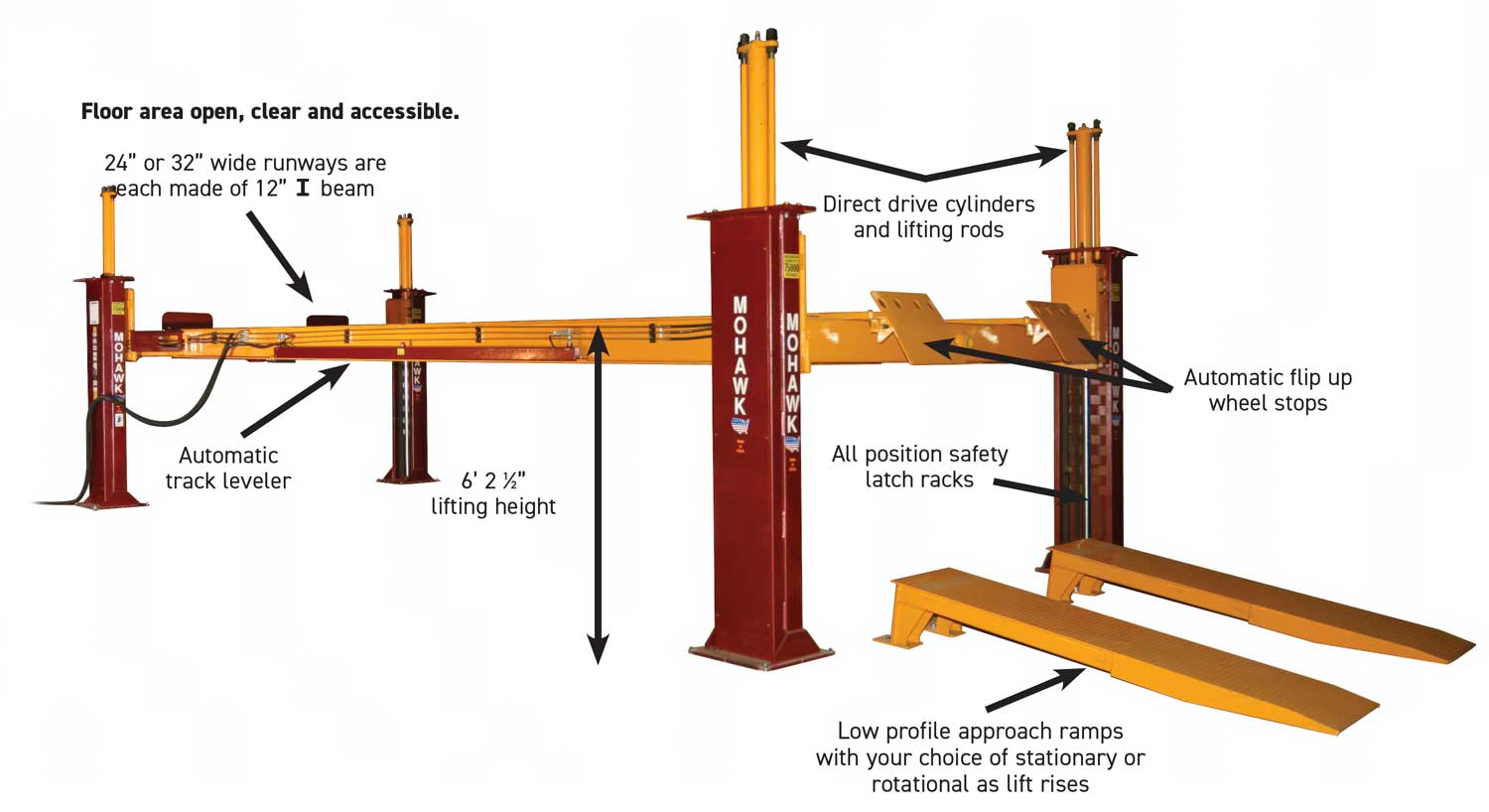

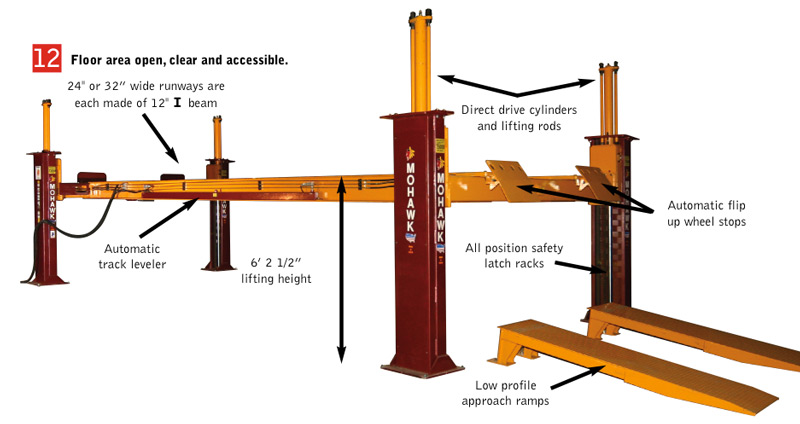

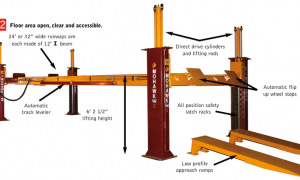

12. Floor Area Open, Clear and Accessible.
Floor area open, clear and accessible.

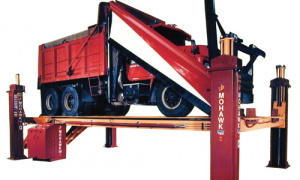

13. Custom Widths and Capacities
Mohawk runways can be set off center for wider equipment, or lifts can be manufactured with wider cross-rails, wider runways or heavier capacities.Options & Accessories
AUTOMOTIVE LIFT OPTIONS & ACCESSORIES

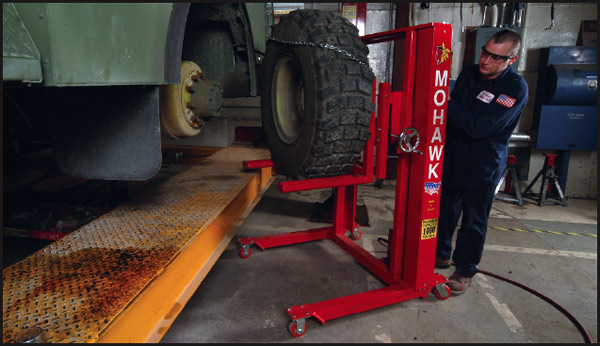

Model TD1000 / TD2000 Tire Dolly
1,000 and 2,000 lb. capacitiesUse with any lift or anytime heavyduty truck tires must be removedHigh 46" lifting height & 6" side shifting ability makes alignment simple Heavy Duty 4" steel ball bearing casters allow easy movementRear casters swivel 360 degrees, front casters equipped with locksAir/hydraulic (AH) models easily raise and lower dual tiresTilting lift arms aid axle realignment and provide additional stability to the fully loaded tire dollySafety chain provided to secure loads<p><a href="/automotive-lifts/specialty-items/model-td1000ah-td2000/">Click here to find out more about this</a></p>

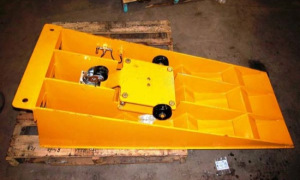

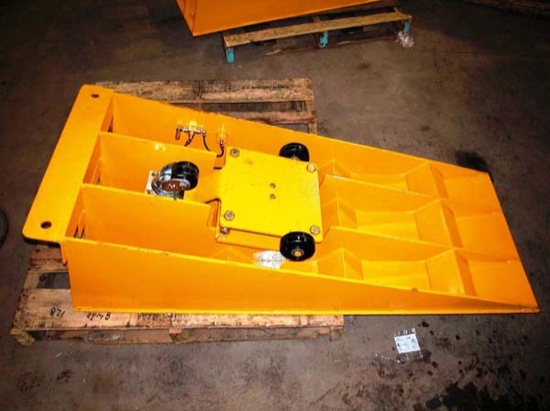

Movable Air Inflated Approach Ramps
Made to Order Movable Air Inflated Approach Ramps

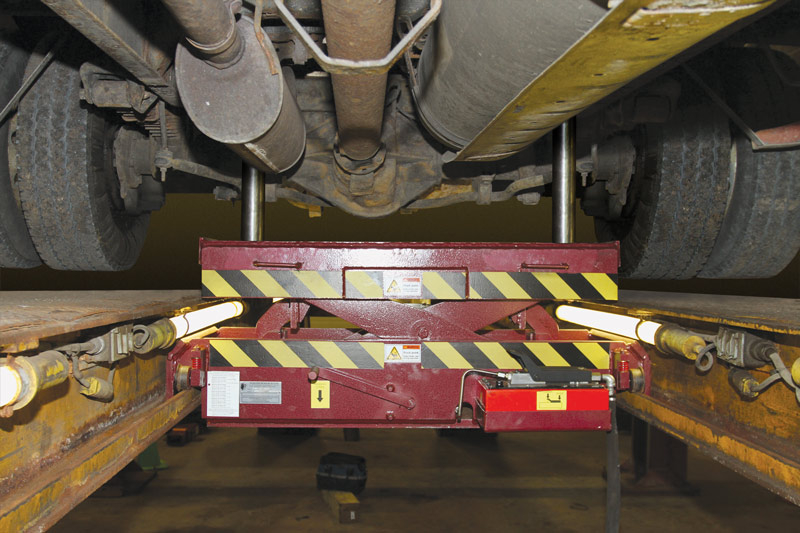

Rolling Air/Hydraulic Jacking Beam

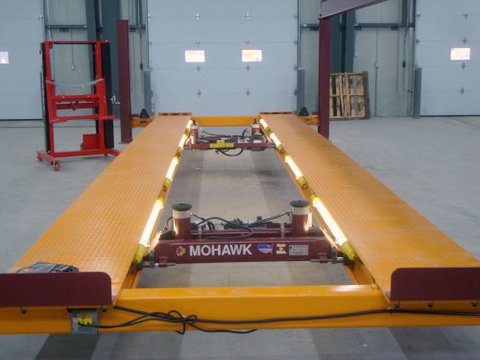

Optional rolling air/hydraulic jacks for "wheels free" tire and brake service. Jacks roll the full length of the runway and have a mechanically activated lock. Optional runway lighting illuminates the vehicle undercarriage.
Track Lighting
Optional shatterproof track lighting to brighten up the darkest vehicle undercarriages.

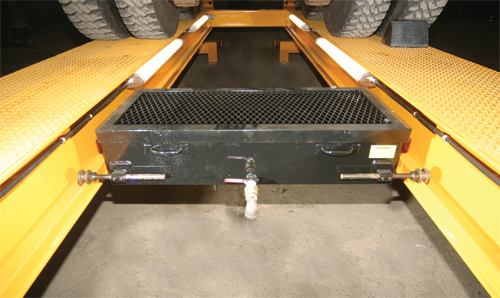

Rolling 25 Gallon Drain Pan
Optional rolling 25 gallon oil drain pan makes oil changes quicker & easier. Expanded steel grate supports filters when draining.

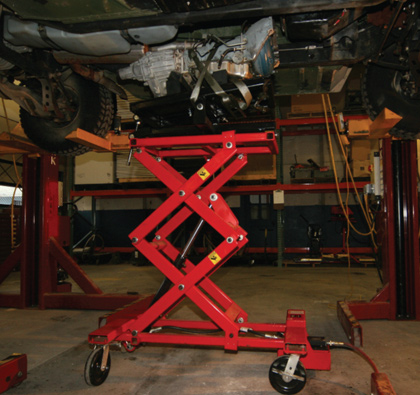

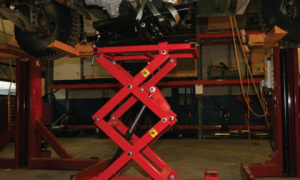

Scissor Lifting Table
<strong>Scissor Table</strong> 2,500 lb. air/hydraulic scissor lifting table for removing rear ends, differentials or heavy transmissions<p><a href="/automotive-lifts/specialty-items/st-2000n-scissor-transmission-jack/">Click here to find out more about this</a></p>

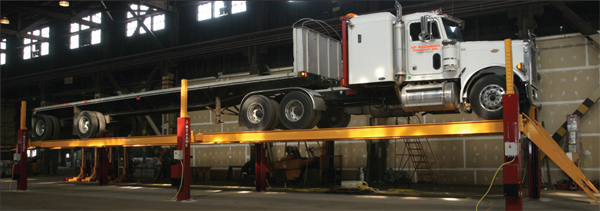

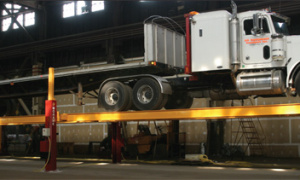

Mohawk 6 Post 60’ Long Lift
<strong>Mohawk 6 Post 60 foot Long Lift</strong> Rack lengths available from 20 to 60 feet Six-post design for longer runways assures maximum wheel base coverage Custom fabricated for wider, narrower, longer, shorter or heavier applications. (For heavier models, see the TR-110/120 brochure online.)Specifications
Please visit the Architects Section for all specifications.
| Model: | TR-35, TR-50, TR-25 |
|---|---|
| Capacity: | 35,000, 50,000 or 75,000 lbs. |
| Lifting Speed: | 120 seconds |
| Motor Rating: | 10 HP 220 VAC, 3 Phase |
| Lifting Height (stroke): | 5' |
| Runway Height at Full Stroke: | 6'–2 ½" |
| Weight: | 17,000 lbs. (with 25' runways) |
| Overall Length: | 34'–11 ¾" (with 25' runways) |
| Overall Width: | 14'–5 ½" (adjustable) |
| Width Between Posts: | 11'–10" (adjustable) |
| Track Width: | 24" or 32" |
| Track Length: | 20', 25', 30', 35' or longer on request |
| Lifting Mechanism: | (4) Direct drive cylinders using no cables, chains or mechanical lifting screws |
| Synchronization (side to side): | Hydraulic fluid displacement backed by twin opposing leaf chains |
| Synchronization (fore and aft): | Manual or automatic controls gear type flow dividers, integral differential relief valving, with an automatic fluid track leveling system |
| Mechanical Safety Systems: | Multi-position locks in each post starting at 10" |
| Hydraulic Safety Systems: | Integral hydrostatic line blow off flow control devices & velocity fuses |
| Electrical Safety Systems: | Cross-wired electronic systems |
| Push Button Electronic Console: | NEMA Type 4 Waterproof enclosure |
| Controls: | Solenoid operated |
| Automatic Wheel Chocks: | Standard equipment front & rear |
| Concrete Requirements: | 4000 PSI concrete 6" thick floor or (4) 6'x6' footings 12" deep |
| Work Area Around/Under Lift: | Clear and unobstructed with no side obstruction |
| Warranty: | 3 years–‚1 year on electronic components |
