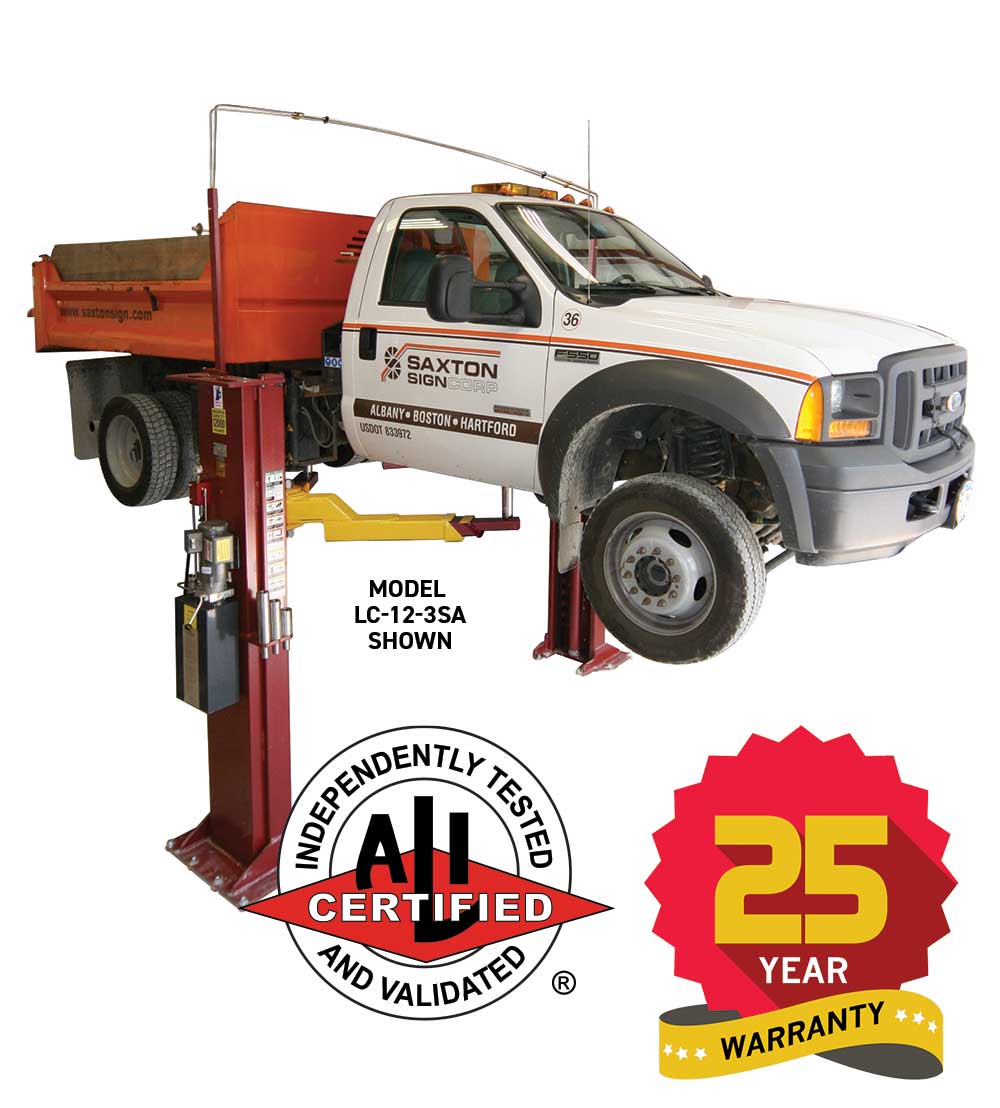

LC-12: Two Post Truck Lifts
Heavy-Duty, American-Made, Industry-Leading Performance
The Mohawk LC-12 Two Post Lift is a low-ceiling, clear-floor above-ground lift engineered for exceptional performance and safety. Designed to handle light- to medium-duty vehicles up to 12,000 lbs, the LC-12 is the ideal solution for shops working with a variety of cars, trucks, and service vehicles.
Product Details
Superior Engineering for a Lifetime of Service
Each lift carriage rolls on eight double-sealed, self-lubricating steel ball bearing rollers, offering smooth, maintenance-free performance—far superior to the plastic sliders used in other lifts. Built with 3/4” thick forklift mast steel columns, the LC-12 delivers unmatched structural strength and durability that stands up to the demands of continuous commercial and fleet use.
Designed with versatility in mind, the LC-12’s adjustable stainless steel hydraulic lines can be mounted overhead at any height or routed through the shop floor to suit your space and vehicle types. The low-profile 5” swing arms (just 4.5” with optional three-stage arms) easily slide under most passenger cars, while stackable adapter pads in 5″, 7.5″, and 10″ sizes offer adjustable height options for a wide range of vehicles. Optional lower-height, three-stage swing arms retract 2” shorter and reach 10” longer—ideal for servicing diverse and space-sensitive fleets.
Patented Safety Systems for Maximum Protection
Mohawk is renowned for building the safest lifts in the industry, and the LC-12 is no exception. Safety features include:
- All-position mechanical safety locks in both columns—from the ground up to full lift height
- Patented infinite-position internal hydraulic safeties, backed by external pressure-compensated flow controls and velocity fuse valving
- Automatic swing arm restraints that engage during lifting and release only when the vehicle is fully lowered
These systems work together to ensure your technicians are protected at all times—without relying on outdated or failure-prone components.
Innovative, Low-Maintenance Hydraulic System
At the heart of the LC-12 is a patented hydraulic synchronization system that offers a cleaner, safer, and more efficient lifting solution. Hydraulic fluid is pumped between the two cylinders via overhead or in-floor stainless steel lines, eliminating the need for overhead covers, pulleys, equalizer chains, or obstructive floor plates. This streamlined design reduces maintenance and improves shop layout flexibility.
Rather than relying on cable or screw drives—which can stretch, fray, or fail—the LC-12 lifts via a 1.5” wide #BL-844 leaf chain system, rolling over double-sealed, self-lubricating chain bearings. This innovative design provides smoother, more consistent lifting with virtually no maintenance requirements.
The Industry’s Best Warranty—Guaranteed
Backed by the best warranty in the business, the LC-12 includes:
- 25-year structural warranty
- 10-year mechanical warranty
- Limited lifetime hydraulic cylinder warranty
No other lift manufacturer matches Mohawk’s confidence—or commitment—to quality and customer support.
Featured Images
View More Images of This Lift on the Mohawk Lifts PR Site

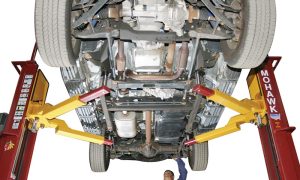

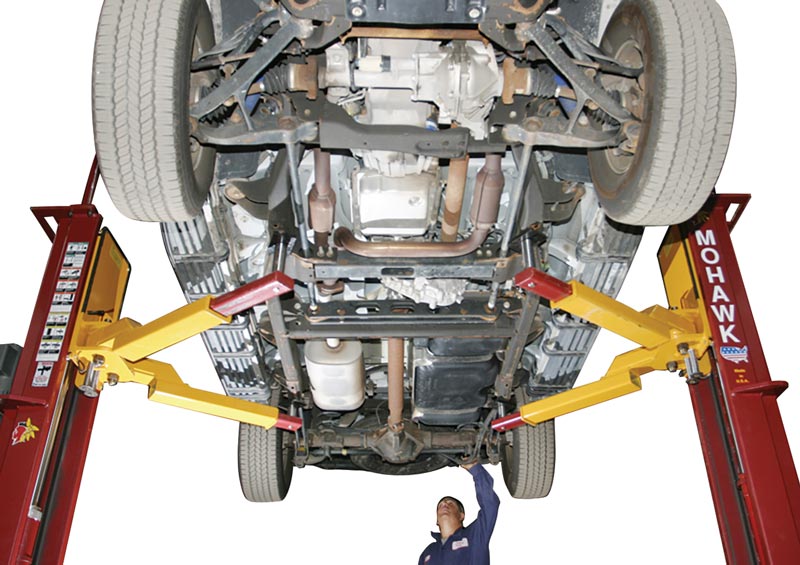

Under Vehicle Access
Two post lifts offer FULL under vehicle access for all repairs, takes up minimal bay space, while leaving the wheels hanging free for tire, brake or any other necessary repairs.

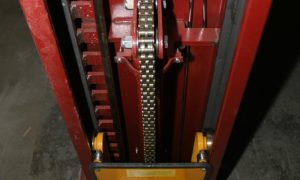

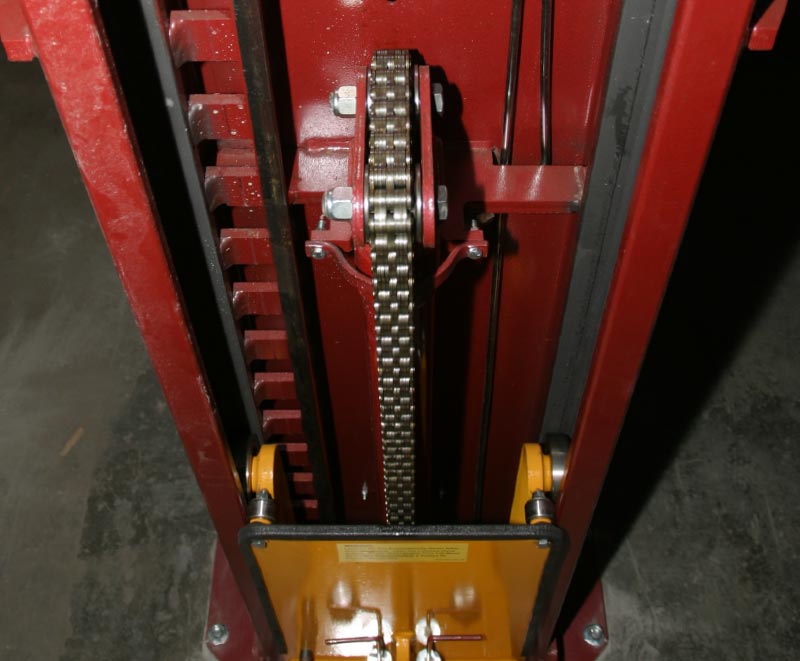

Heavy Duty Post Design
Heavy duty post design using DUAL cylinders with #646 leaf chain lifting, over DUAL bearings.

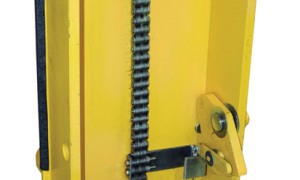

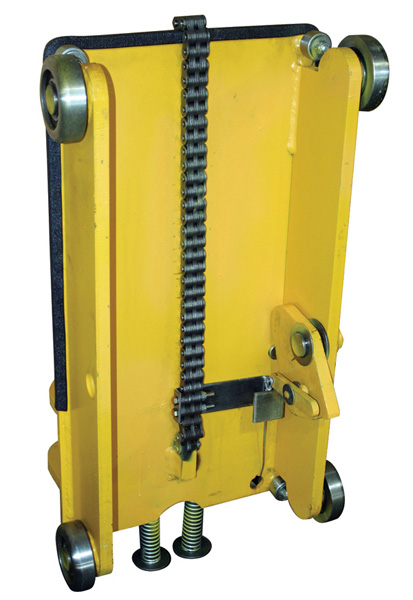

Carriage Rollers
Each carriage rolls on 8 steel ball bearing rollers for a lifetime of trouble-free service.

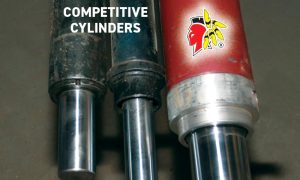

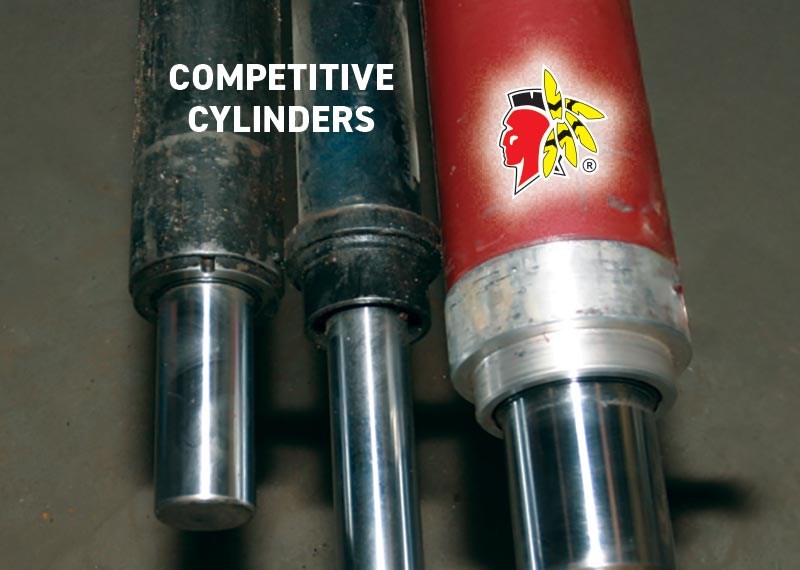

4" Cylinders
Large 4” cylinders equal longer seal life and lower operating pressures vs. smaller competitive cylinders.

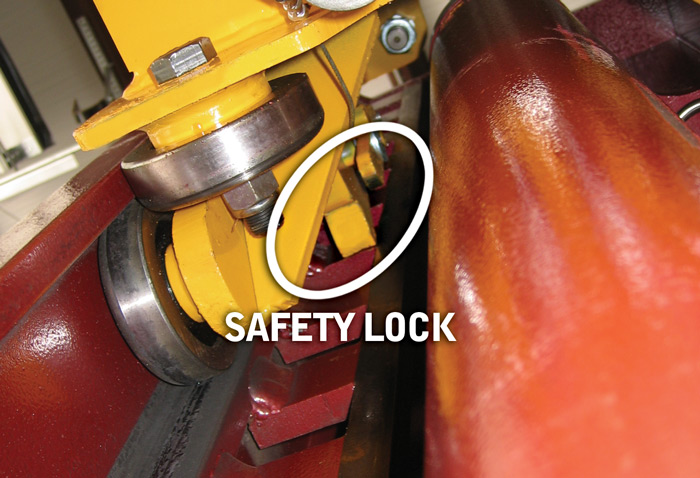

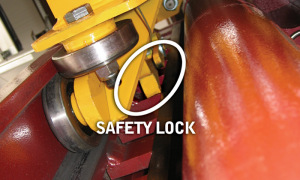

Safety Lock
ALL position 1” thick mechanical locks on BOTH carriages engage the full length of travel.

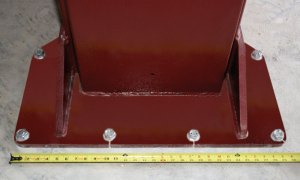

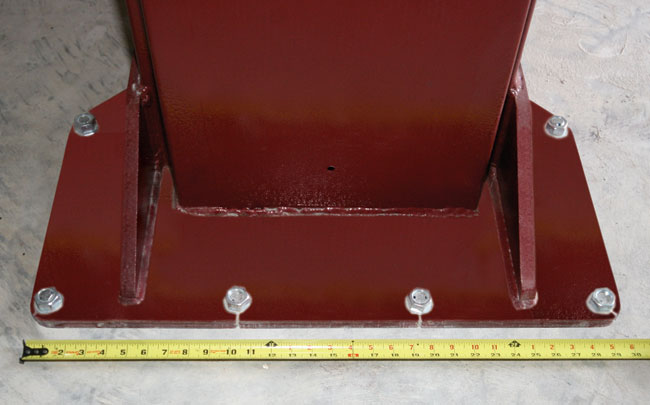

Lift Footprint
Mohawk's large and stable footprint measures 30” wide by 24” and is made of 3/4” thick plate. Mohawk’s large base gives stability to the lift, while distributing the load to the shop floor.

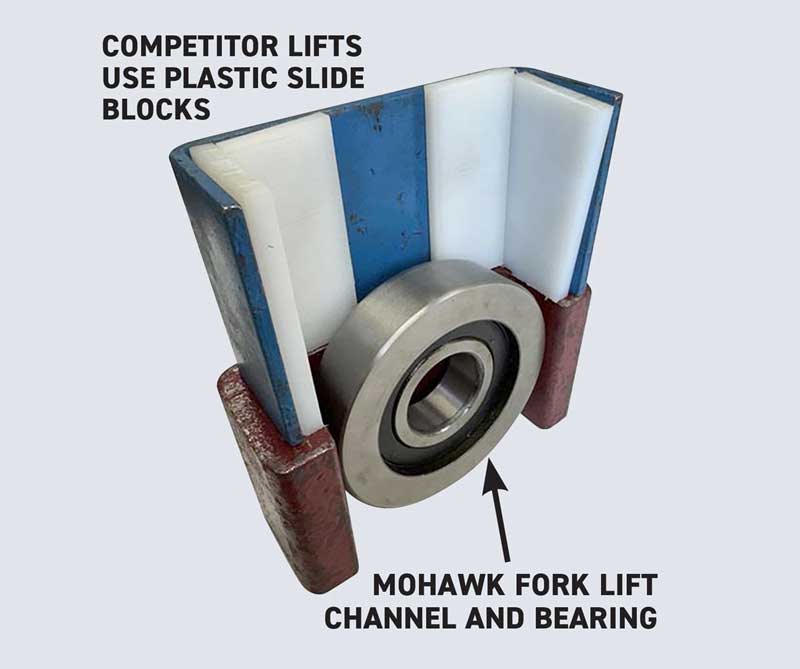

Bearing vs. Plastic
FORK LIFT CHANNEL & bearing (bottom) vs. competitive columns & plastic slider (top).

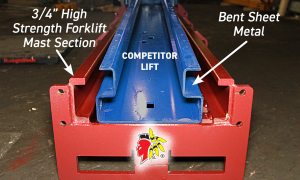

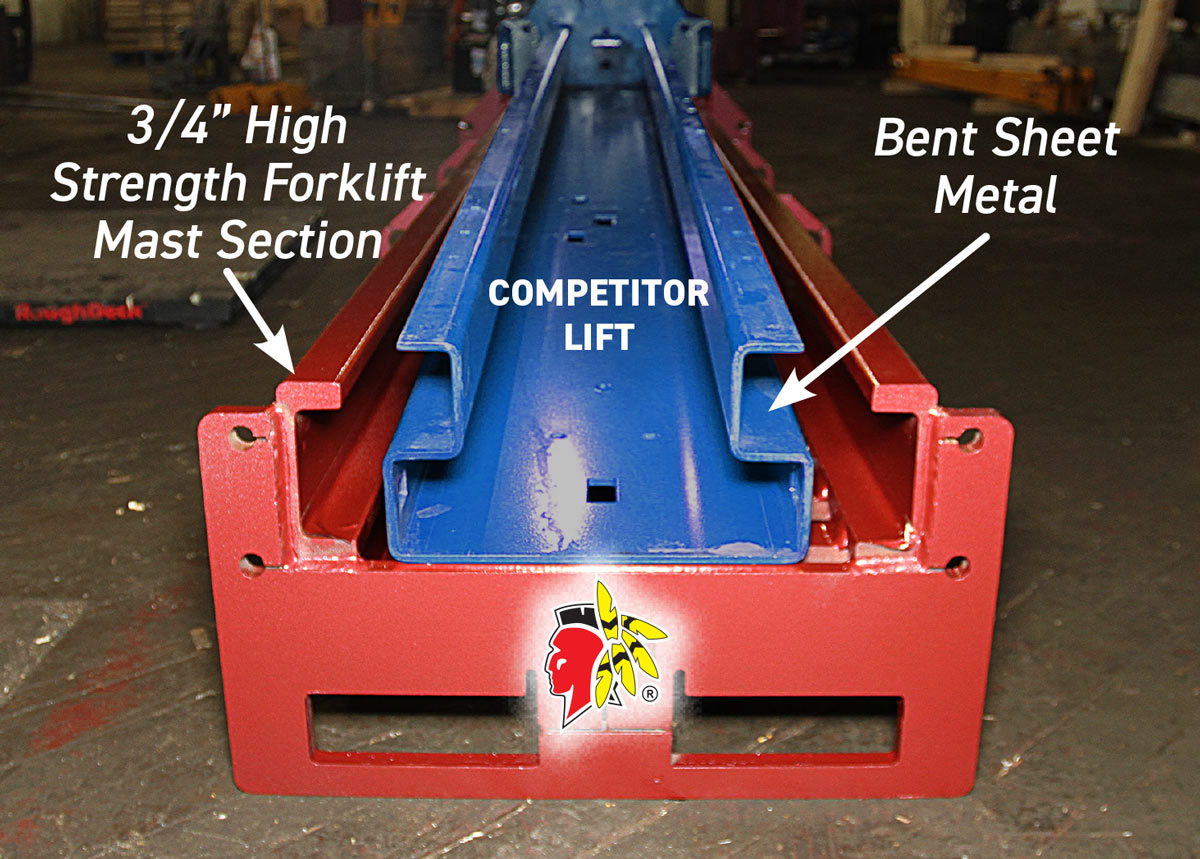

Column Comparison
Mohawks 10,000 lb. lift uses ¾” high-strength forklift mast steel columns (red lift, above), vs. competitor 12,000 lb. lifts that use bent sheet metal columns (blue lift, above).

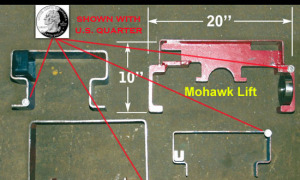

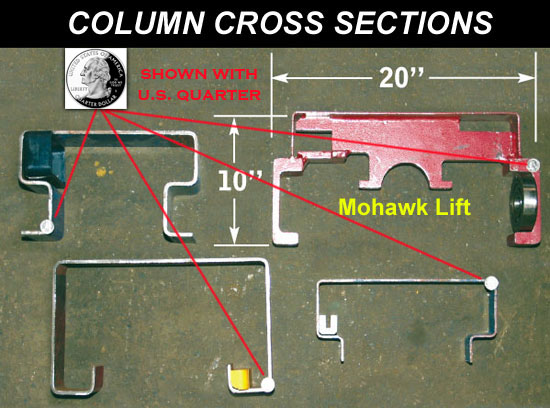

Competitor Comparison
Mohawk fork lift channel & bearing (top right) VS. 3 different sheet metal columns which use plastic slides. Like your fork lifts mast, Mohawk lifts <strong>DO NOT WEAR OUT!</strong>

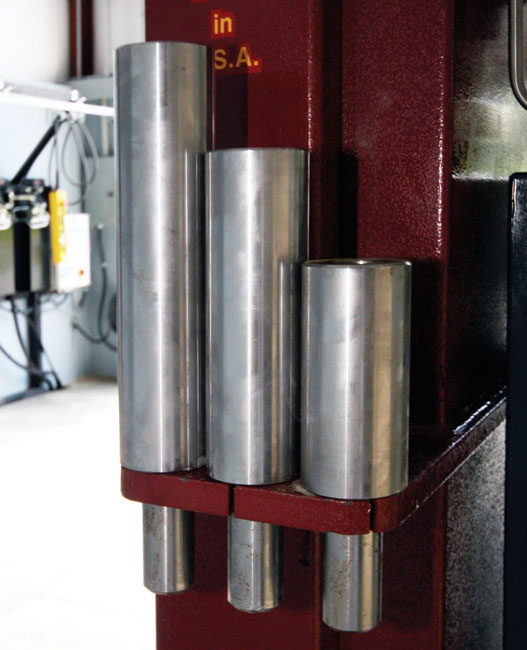

Adaptors
5”, 7 1/2” and 10” stacking adaptors included (for hard to reach frames)

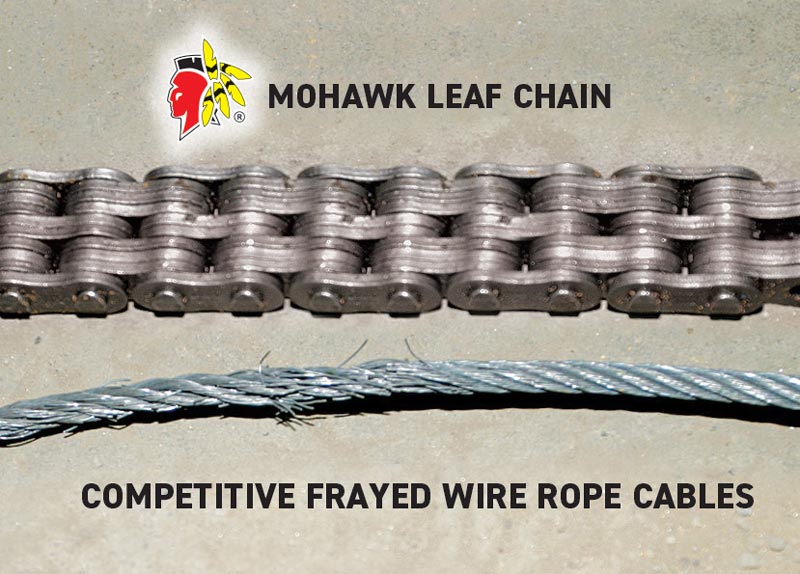

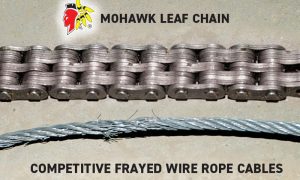

High Strength Chain
#646 HIGH STRENGTH leaf chain compared to the competitive cables which fray.Options & Accessories

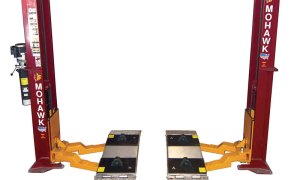

SPEEDLANE DRIVE-ON ADAPTOR
<a href="/automotive-lifts/specialty-items/speedlane-two-post-drive-on-adapter/">Learn more about the Speedlane Drive-On Adapter</a> Turns your two-post lift into a quick drive-on liftNo time wasted positioning swing arms
SAFETY WEIGHT GAUGE
<a href="/automotive-lifts/specialty-items/lift-weight-gauge/">Learn more about the weight gauge</a> Aides in vehicle diagnosis by measuring weight within 5% accuracyInstalled directly into the hydraulic systemEasy to read gaugeAs a diagnostic tool, the weight gauge will help you sell heavy duty brake parts, shocks, and tiresAvailable for all Mohawk two-post liftsGauge allows techs to know the lift has been lowered and is locked
DUAL TROUGH TURF KIT
<a href="/automotive-lifts/2-post-lifts/turf-maintenance-equipment-auto-service-lift/">Learn more about the Turf Maintenance Adapter</a> Turns vehicle lift into a turf maintenance liftAvailable for 10,000 to 18,000 lb. capacity two-post liftsFull under-vehicle access and safety,with 6 foot working heightOffers maximum flexibility to service cars, light trucks, turf equipment or golf cartsInstallation is a simple, quick, one-man jobTakes less valuable shop space than 4-post liftsQuickly converts to turf lift or back to arm engaging lift in minutes

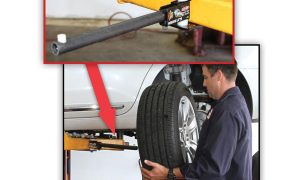

BACKSAVER
Save your technicians from bending down to lift heavy tires. Allows hanging your tires from lift swing arms. Simple 10 minute installation.

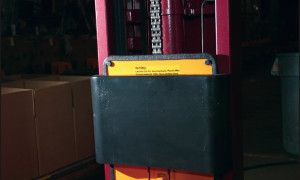

FOAM DOOR GUARD
Protects vehicle from dents and scratches if the door is accidentally opened into the columns2 inch thick soft foam will not damage doors, unlike other hard plastic door protectors.

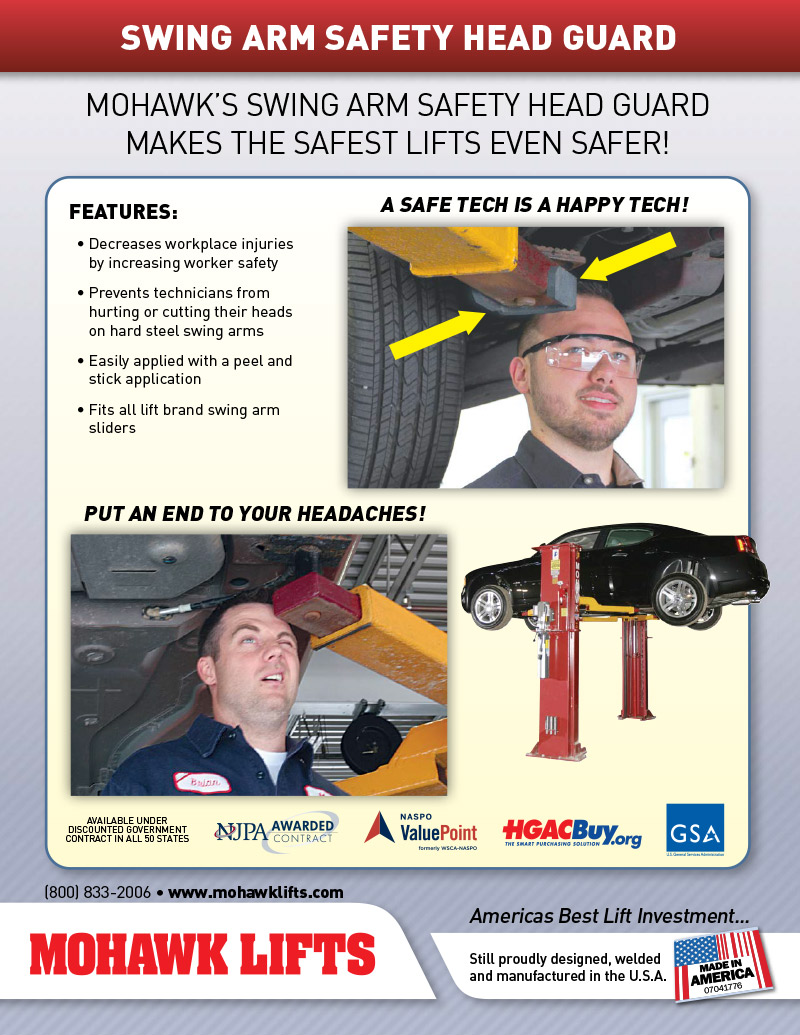

SWING ARM SAFETY HEAD GUARD
<a href="/automotive-lifts/specialty-items/2-post-automotive-lift-swing-arm-safety-head-guard/">Learn more about the safety head guard</a> Decreases workplace injuries by increasing worker safetyPrevents technicians from hurting or cutting their heads on hard steel swing armsEasily applied with a peel and stick applicationFits all lift brand swing arm sliders

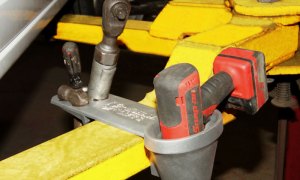

SWING ARM TOOL HOLDER
Fits all Mohawk 10,000 thru 18,000 lb. two post lifts Made for all brands and models of impact guns Tool side holds 45 pounds, cup side holds 100 lbs. of tools Slip on design means no installation Sold in pairs for left and right side of lift<a href="https://mohawklifts.com/automotive-lifts/specialty-items/two-post-tool-holder/">Learn more about the tool holder</a>

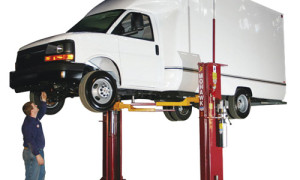

EXTENDED HEIGHT OVERHEAD LINES
Made of stainless steel that never needs replacingAdjustable to any ceiling height Hydraulic lines can be lowered for low ceiling shops

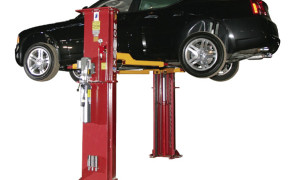

IN-FLOOR HYDRAULIC LINES
Eliminates overhead linesGreat for shops with low ceilingsMade from one-piece stainless steel, hydraulic lines that never corrodeFrees up overhead space for rolling shop cranes, tall vehicles, box vans or overhead shop equipment

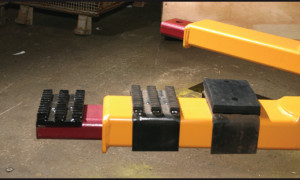

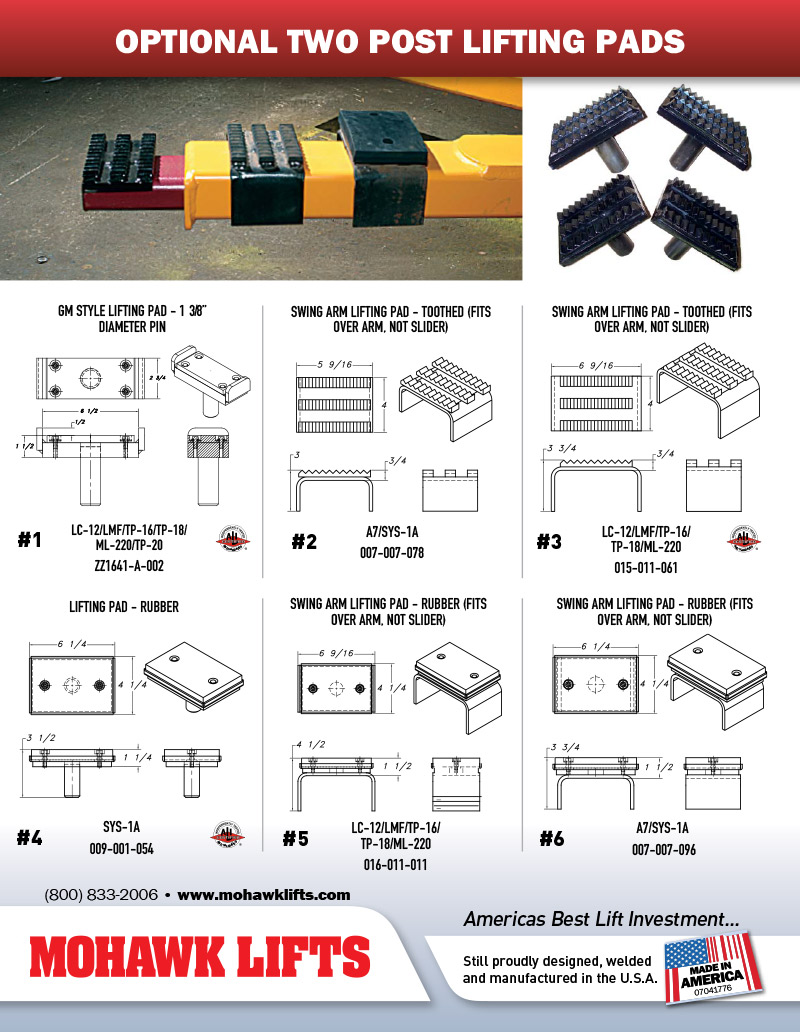

SWING-ARM LIFTING PAD
Attaches to swing arm and not sliderAvailable in rubber or steelGives access for special lifting requirementsOptional rubber protects underbody

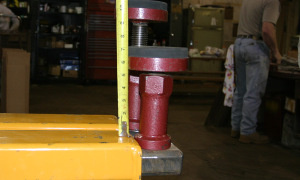

ADJUSTABLE SCREW PADS
Height adjustable screw type lift pads. Available for all 10,000 to 30,000 lb. capacity two-post lifts Choice of rubber or steel top pads. Gives additional 3+ inches of fine pad adjustmentSpecifications
Please visit the Architects Section for all specifications.
| Model: | LC-12-3SA |
|---|---|
| Capacity: | 12,000 lbs. |
| Motor Rating: | 2.5 HP/208-230V,Single-phase (3ø optional) |
| Synchronization: | Hydraulic fluid displacement using no chains, cables, or overhead obstructions |
| Arm Pad Height: | 5” |
| Lifting Height: | 6' under arm |
| Lift Pad Height @ Full Rise: | 6’ 5” |
| Lift Pad Height @ Full Rise w/Adaptors: | 7’3” |
| Overall Width (adjustable): | 12' 7" |
| Width Between Posts: | 10’ (adjustable) |
| Width Between Lifting Arms: | 8’ 10” (adjustable) |
| Column Height: | 8’ 7” |
| Overhead Hydraulic Line Height: | 12’ Standard (adjustable to accommodate any height ceiling or routed in-floor) |
| Weight: | 2,900 lbs. |
| Concrete Floor Requirements: | 4000 psi (27579.02 kPa) mix 61/2” |
| Standard Base: | 6 1⁄2" of 4,000 psi concrete |
| Anchoring System (included): | (16) 3⁄4"x6" bolts |
| Mechanical Safety Locks: | Automatic; all position starting ground level |
| Hydraulic Safety Systems: | Automatic; all position |
| Swing Arm Restraints: | Automatic upon ascent |
| Cylinders: | 2 (1 per column) |
| Drive System: | #BL-848 leaf chain routed over cylinder |
| Lifting Speed: | 80 seconds at full load (faster with lighter load) |
| Thrust & Guide Bearings: | (16) 4" diameter, (8 per carriage) double sealed, self-lubricating ball bearing rollers |
| 5” Frame Adaptors (stackable): | 4 included as standard equipment |
| 7 1/2” Frame Adaptors (stackable): | 4 included as standard equipment |
| 10” Frame Adaptors (stackable): | 4 included as standard equipment |
| Floor Access Between Posts: | Clear and unobstructed |
| Warranty: | 25 years structural, 10 year mechanical, plus limited lifetime cylinder seal warranty |
